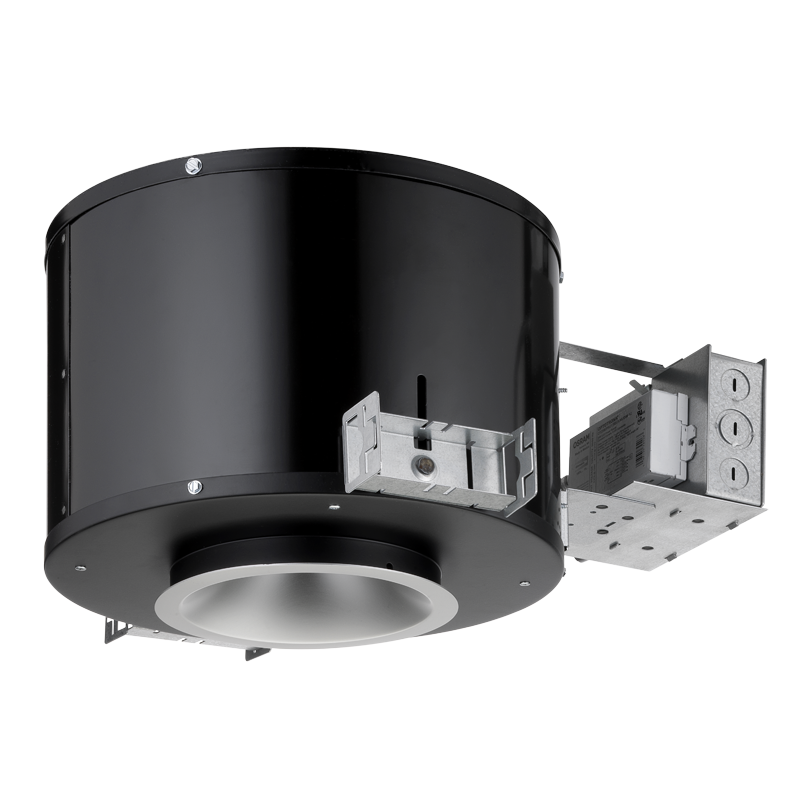

LA8 Housing

LED 8in Round Internally Adjustable L-Series housing Discontinued
    Energy Star®Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Size 8 IN
Shape Round
Light Source LED - Static
Lumens 800 LM, 1300 LM, 1500 LM, 1700 LM, 2300 LM, 2800 LM, 3300 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Housing
Compliance Listing BAA and BABA, Chicago Plenum, ENERGY STAR®, Low UGR, ROHS
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V, Forward Phase
Fixture Wattage 10, 10.2, 10.4, 10.9, 11.5, 11.6, 12, 12.1, 12.2, 12.7, 12.9, 13.2, 13.5, 13.7, 13.9, 14, 14.1, 14.3, 14.4, 14.6, 15, 15.1, 15.2, 15.5, 15.6, 15.7, 16, 16.2, 16.3, 16.4, 16.5, 16.6, 16.7, 16.9, 17, 17.1, 17.2, 17.5, 17.6, 17.8, 17.9, 18, 18.2, 18.3, 18.4, 18.6, 18.7, 18.8, 18.9, 19, 19.5, 19.8, 19.9, 20.1, 20.5, 20.6, 20.7, 20.8, 20.9, 21, 21.4, 21.6, 21.7, 21.8, 22.1, 22.4, 22.5, 22.9, 23, 24.3, 24.4, 24.8, 24.9, 25, 25.4, 25.7, 25.9, 26, 26.8, 27.6, 27.8, 27.9, 28, 28.1, 28.3, 28.4, 28.6, 28.7, 28.9, 29, 29.2, 29.4, 29.5, 30.1, 30.3, 30.4, 30.9, 31.1, 31.2, 31.4, 31.6, 31.7, 32.2, 32.3, 32.4, 32.7, 33, 33.6, 33.7, 34.4, 36.2, 36.8, 37, 37.3, 37.6, 37.9, 38.2, 38.6, 39.6, 39.7, 40, 40.3, 40.8, 41.1, 41.4, 41.7, 41.9, 42, 42.1, 43.1
Voltage Rating 120, 277, 347
Trim Style Adjustable, Angle-Cut
Color Black, Bronze, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Series LA8

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet J7_1_8_3G3 LA8.pdf LA8 Series - Internally Adjustable Accent Light 2/15/2023 View
    Spec Sheet Clairity Pro Mobile Application.pdf (Archived) Mobile App for nLight® AIR Startups (Archived) 1/3/2020 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility LED-DIM.pdf LED Dimmer Compatibility Sheet 10/22/2024 View
    Installation Instructions 065-006.pdf Mounting Indy Recessed Fixtures in Grid Ceilings 12/5/2019 View
    Installation Instructions 065-1258.pdf LA4, LA6, and LA8 Series, Adjustable 8/26/2021 View
    Installation Instructions 065-1300.pdf Atrius Indoor Positioning with AE1BN for Indy L-Series Gen 4 11/26/2019 View
    Installation Instructions nLight AIR 2.0 Quick Start.pdf nLight® AIR Quick Start Guide 10/29/2018 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Indy L-Series Gen 4 Brochure.pdf Indy L-Series Gen 4 Brochure 6/4/2021 View
    Sell Sheet Indy L-Series Easy Sell Sheet.pdf Converting to LED with Indy L-Series 12/28/2017 View
