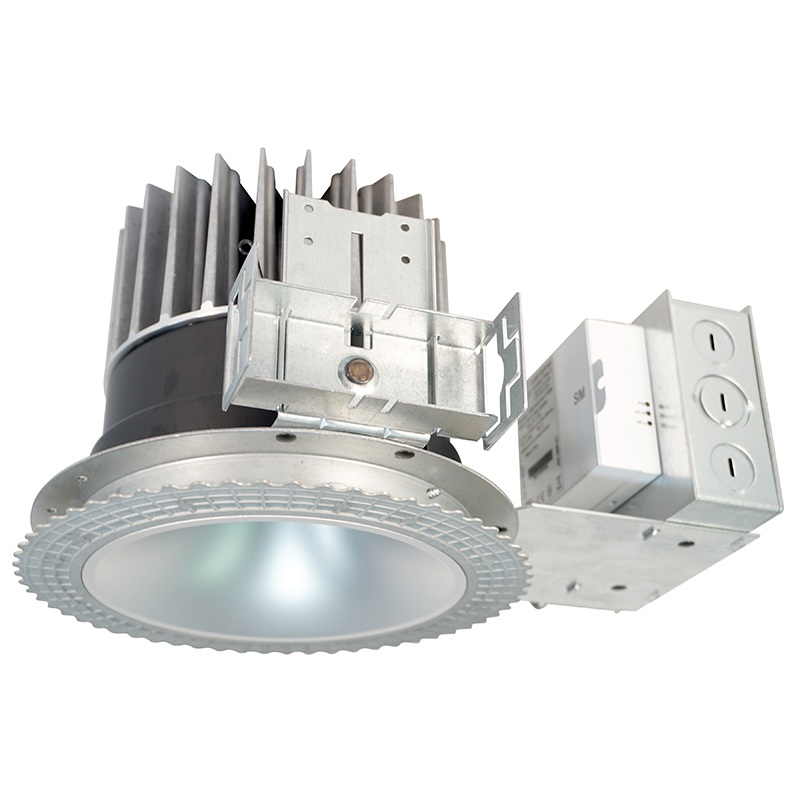

L6 FM Housing

LED 6in Round Flangeless New Construction L-Series Housing Discontinued
    Energy Star®Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Size 6 IN
Shape Round
Light Source LED - Static
Lumens 800 LM, 1300 LM, 1500 LM, 1700 LM, 2300 LM, 2800 LM, 3300 LM, 4000 LM, 4500 LM, 5000 LM, 5500 LM, 6000 LM, 6500 LM, 7000 LM, 7500 LM, 8000 LM, 8500 LM, 9000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90, 97
Product Type Housing
Compliance Listing BAA and BABA, Chicago Plenum, ENERGY STAR®, Low UGR, ROHS
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, DMX, Forward Phase, Forward Phase 2W, Reverse Phase
Fixture Wattage 10.1, 10.6, 10.7, 10.9, 11, 11.1, 11.2, 11.3, 11.4, 11.6, 11.7, 11.8, 11.9, 12, 12.1, 12.3, 12.5, 12.7, 12.8, 12.9, 13, 13.1, 13.2, 13.3, 13.4, 13.6, 13.7, 13.8, 13.9, 14, 14.1, 14.4, 14.5, 14.7, 15, 15.1, 15.2, 15.3, 15.4, 15.5, 15.6, 15.8, 15.9, 16, 16.1, 16.2, 16.3, 16.4, 16.5, 16.6, 16.7, 16.8, 16.9, 17, 17.1, 17.2, 17.3, 17.4, 17.6, 17.9, 18, 18.1, 18.2, 18.3, 18.5, 18.6, 18.7, 18.8, 18.9, 19, 19.1, 19.3, 19.4, 19.5, 19.6, 19.9, 20, 20.1, 20.2, 20.3, 20.4, 20.5, 20.8, 20.9, 21, 21.1, 21.5, 21.6, 21.7, 21.9, 22, 22.1, 22.2, 22.4, 22.9, 23, 23.1, 23.5, 23.7, 23.8, 23.9, 24, 24.1, 24.2, 24.4, 24.5, 24.6, 25, 25.2, 25.4, 25.5, 25.6, 25.7, 25.8, 25.9, 26.1, 26.2, 26.5, 26.6, 26.8, 26.9, 27, 27.4, 27.5, 27.7, 27.8, 27.9, 28, 28.1, 28.2, 28.3, 28.5, 28.8, 28.9, 29, 29.3, 29.6, 29.7, 30, 30.1, 30.2, 30.3, 30.4, 30.5, 30.6, 30.7, 30.8, 31, 31.1, 31.4, 31.5, 31.6, 31.7, 31.8, 31.9, 32.2, 32.4, 32.5, 32.6, 32.7, 32.8, 33, 33.1, 33.4, 33.5, 33.6, 33.7, 33.8, 34, 34.1, 34.2, 34.3, 34.6, 34.9, 35, 35.1, 35.3, 35.5, 35.7, 36.4, 36.5, 36.6, 36.9, 37.1, 37.5, 38.1, 38.3, 38.8, 38.9, 39, 39.2, 39.3, 39.4, 39.5, 39.6, 39.7, 39.9, 40, 40.1, 40.3, 40.4, 40.8, 40.9, 41, 41.2, 41.3, 41.4, 41.5, 41.6, 41.7, 41.8, 41.9, 42, 42.1, 42.2, 42.3, 42.4, 42.5, 42.6, 42.7, 42.8, 42.9, 43, 43.1, 43.2, 43.3, 43.4, 43.5, 43.6, 43.7, 43.8, 43.9, 44, 44.1, 44.2, 44.3, 44.5, 44.6, 44.7, 44.8, 45, 45.1, 45.2, 45.3, 45.4, 45.5, 45.6, 45.7, 45.8, 45.9, 46, 46.1, 46.3, 46.6, 46.7, 46.8, 46.9, 47, 47.1, 47.2, 47.3, 47.5, 47.7, 47.8, 48, 48.1, 48.2, 48.4, 48.5, 48.6, 48.7, 48.8, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 6.02, 6.61, 6.63, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 7.12, 7.19, 7.43, 7.53, 7.6, 7.64, 7.73, 7.74, 7.79, 7.87, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 8, 8.11, 8.12, 8.2, 8.21, 8.37, 8.42, 81, 82, 83, 84, 85, 87, 88, 89, 9.43, 9.52, 9.64, 91, 92, 94, 95
Voltage Rating 120, 120-277, 277, 347
Trim Style Baffle, Cone, Corner Wallwash, Double Wallwash, Hyperbolic, Open, Single Wallwash
Color Black, Bronze, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Series L6

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet J7_1_1G4 L6.pdf L6 and LRM6 Series - New Construction, Remodel, Flangeless; Hyperbolic, Parabolic, Baffle,Wall Wash 10/28/2024 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility LED-DIM.pdf LED Dimmer Compatibility Sheet 10/22/2024 View
    Installation Instructions 065-1196.pdf Flangeless Adapters 12/5/2019 View
    Installation Instructions 065-1231.pdf L4, L6, and L8 Series (Gen 4) Indy Recessed with DMXR Driver 11/28/2017 View
    Installation Instructions 065-1238.pdf L4, L6, and L8 Series (Gen 4) Indy Recessed with Dali Driver 12/22/2020 View
    Installation Instructions 065-1272.pdf L4, L6, and L8 series (Gen 4) Flush Mount 8/26/2021 View
    Installation Instructions 065-1281.pdf DMX/RDM Field Installation Manual (Gen 4) for Indy L-Series 12/5/2019 View
    Installation Instructions 065-1300.pdf Atrius Indoor Positioning with AE1BN for Indy L-Series Gen 4 11/26/2019 View
