LRT6 Downlight Retrofit Housing

LED 6in Round Retrofit L-Series Downlight Housing

By Indy

    Energy Star®Buy America(n)
  • Overview
  • Specifications
Indy™ LRT6 LED luminaries are part of the Indy L-Series, offering a fully coordinated family of commercial grade quality luminaires, from LED color rendering to aperture sizes and trim finishes. These retrofit kits convert nearly any existing 6-inch incandescent, HID or CFL recessed fixtures to the latest and most advanced LED technology. Indy™retrofit LEDs offer substantial energy savings, and with an expected service life of 50,000 hours, they help reduce operating costs by providing over 10 years of maintenance free service in typical commercial applications
Read More
Read Less
Size 6 IN
Shape Round
Light Source LED - Static
Lumens 800 LM, 1300 LM, 1500 LM, 1700 LM, 2300 LM, 2800 LM, 3300 LM, 4000 LM, 4500 LM, 5000 LM, 5500 LM, 6000 LM, 6500 LM, 7000 LM, 7500 LM, 8000 LM, 8500 LM, 9000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90, 97
Product Type Retrofit Kit
Compliance Listing ENERGY STAR®, BAA, ROHS, Chicago Plenum
Environmental Listing Damp Location, Non-IC, Wet Location
Regulatory Listing UL, cUL
Dimming Protocol 0-10V, DALI, DMX, Forward Phase, Forward Phase 2W, Reverse Phase
Fixture Wattage 15.3, 10, 30, 10.1, 15.6, 10.2, 30.1, 10.3, 15.8, 10.4, 30.2, 11, 16.1, 11.2, 30.3, 11.3, 16.2, 11.5, 30.4, 11.9, 16.3, 12.1, 30.5, 12.4, 16.4, 12.6, 30.6, 12.7, 16.5, 12.8, 30.7, 12.9, 16.7, 13, 30.8, 13.3, 16.9, 13.6, 31, 13.7, 17, 13.8, 31.1, 13.9, 17.1, 14.2, 31.2, 14.4, 17.2, 14.6, 31.4, 14.7, 17.3, 14.8, 31.5, 14.9, 17.4, 15, 31.6, 19.1, 17.7, 19.2, 31.7, 19.3, 17.8, 19.4, 31.8, 19.6, 18, 19.7, 32, 19.8, 18.1, 19.9, 32.2, 20, 18.2, 20.1, 32.3, 20.2, 18.3, 20.4, 32.4, 20.5, 18.4, 20.6, 42.9, 20.7, 18.5, 20.8, 43, 20.9, 18.7, 21, 43.1, 21.2, 18.8, 21.3, 43.2, 21.5, 32.5, 21.6, 43.3, 21.8, 32.6, 22, 43.4, 22.2, 32.7, 22.3, 70, 22.5, 32.8, 22.6, 71, 22.8, 33, 23.1, 72, 23.3, 33.1, 23.4, 73, 23.5, 33.4, 23.6, 74, 23.7, 33.5, 23.9, 75, 24.3, 33.6, 24.4, 76, 24.5, 33.7, 24.7, 77, 24.9, 33.8, 25.2, 78, 81, 34, 82, 79, 83, 34.1, 84, 8.37, 85, 34.2, 87, 8.64, 88, 34.3, 89, 8.88, 9, 34.4, 9.09, 80, 9.15, 34.6, 9.34, 34.9, 9.39, 35, 9.5, 35.1, 9.76, 35.3, 91, 35.5, 92, 35.7, 94, 36.4, 95, 36.5, 25.4, 36.6, 25.5, 37.1, 25.8, 37.3, 26.1, 37.5, 26.2, 38.1, 26.3, 38.3, 26.4, 38.5, 26.5, 38.8, 26.6, 38.9, 26.7, 39, 26.8, 39.1, 26.9, 39.2, 27.1, 39.3, 27.2, 39.4, 27.3, 39.5, 27.4, 39.6, 27.5, 39.7, 27.6, 39.9, 27.7, 40, 27.8, 40.1, 28, 40.2, 28.1, 40.3, 28.2, 40.4, 28.3, 40.8, 28.5, 40.9, 28.6, 41, 28.8, 41.1, 28.9, 41.2, 29, 41.3, 29.1, 41.4, 29.2, 41.5, 29.3, 41.6, 29.5, 43.5, 29.6, 43.6, 29.7, 43.7, 29.8, 43.8, 41.7, 43.9, 41.8, 44, 41.9, 44.1, 42, 44.3, 42.1, 44.5, 42.3, 44.6, 42.4, 44.7, 42.5, 44.8, 42.6, 44.9, 42.7, 45, 42.8, 45.1, 45.2, 45.3, 45.4, 45.5, 45.6, 45.7, 45.8, 46, 46.1, 46.3, 46.6, 46.7, 46.8, 46.9, 47, 47.1, 47.2, 47.3, 47.5, 47.7, 47.8, 48, 48.1, 48.2, 48.4, 48.6, 48.7, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 7.54, 7.99
Voltage Rating 120, 120-277, 277, 347
Mounting Type Recessed
Series LRT6

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Clairity Pro Mobile Application.pdf Mobile App for nLight® AIR Startups 1/3/2020 View

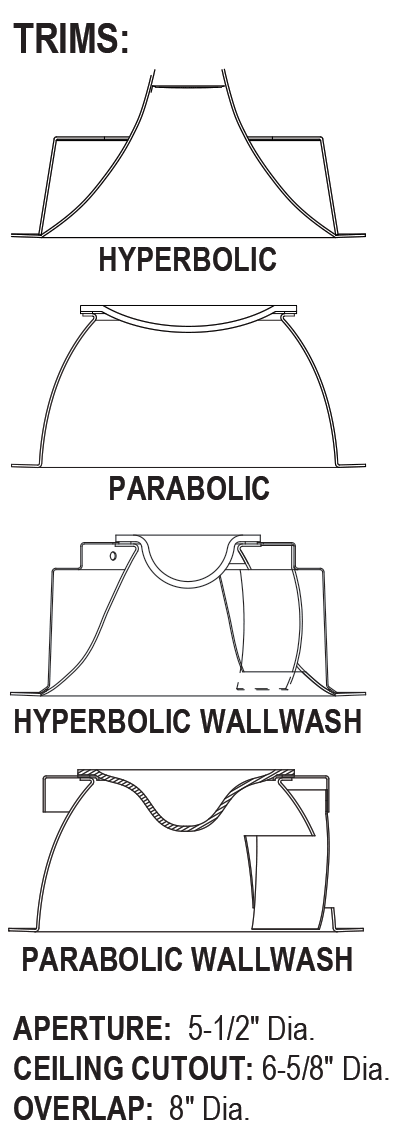

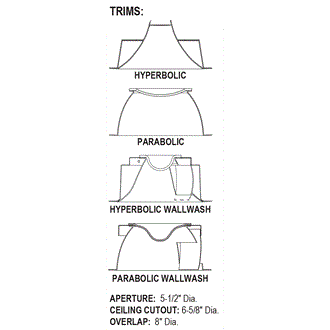

    SPEC SHEET J7_1_18G4 LRT6.pdf LRT6 Series - LED Retro-Fit; Hyperbolic, Parabolic, Wall Wash, Baffle 5/31/2022 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility LED-DIM.pdf LED Dimmer Compatibility Sheet 9/5/2019 View
    Installation Instructions 065-1129.pdf LRT6 and LRT8 Series, LED Retro-Fit (Gen 4) 8/26/2021 View
    Installation Instructions 065-1233.pdf LRT6 and LRT8 Series (Gen 4), LED Retro-Fit with DMXR Driver 12/5/2019 View
    Installation Instructions 065-1240.pdf LRT6 and LRT8 Series (Gen 4), Dali Driver 12/5/2019 View
    Installation Instructions 065-1281.pdf DMX/RDM Field Installation Manual (Gen 4) for Indy L-Series 12/5/2019 View
    Installation Instructions 065-1300.pdf Atrius Indoor Positioning with AE1BN for Indy L-Series Gen 4 11/26/2019 View
    Installation Instructions nLight AIR 2.0 Quick Start.pdf nLight® AIR Quick Start Guide View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Indy L-Series Gen 4 Brochure.pdf Indy L-Series Gen 4 Brochure 6/4/2021 View
    Sell Sheet Indy L-Series Easy Sell Sheet.pdf Converting to LED with Indy L-Series View
    Sell Sheet Indy L-Series Retrofit LED Downlight Sell Sheet.pdf Indy L-Series Retrofit Sell Sheet 9/9/2020 View
