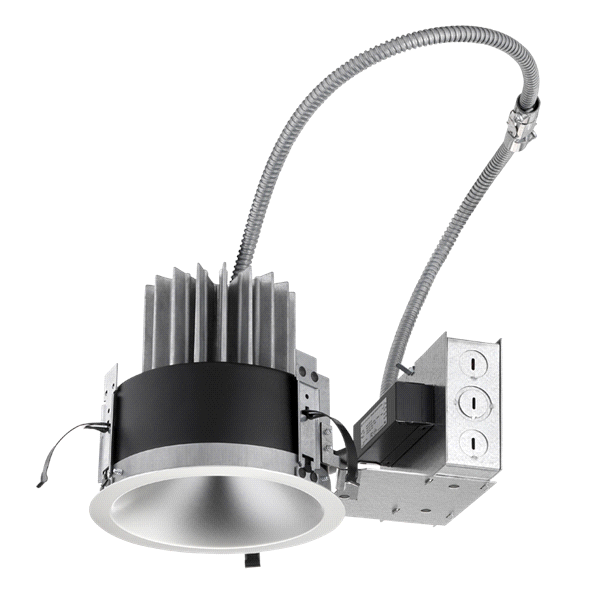

LRM6 Housing

LED 6in Round Remodel L-Series Housing

Indy™ LRM6 LED luminaires are part of the latest generation of Indy™ L-Series, offering a fully coordinated family of commercial grade quality luminaires, from LED color rendering to aperture sizes and trim finishes. These 6-inch, remodel LED downlights and wall washers are loaded with innovative features and options, such as unique hyperbolic reflectors and Lumen Depreciation Indicators. Indy™ LED luminaires have always provided exceptional energy savings and long service life.

Specifications
Product overview and specifications
Aperture Size 6 IN
Atrius Integrated Solutions Atrius Retail
Atrius Platform Services Atrius Navigator
Atrius-Ready Yes
Brand Name Indy
Color Rendering Index 80, 90, 97
Control Networkable Control
Correlated Color Temperature 2700 K, 3000 K, 3500 K, 4000 K
Environment Indoor
Light Source LED
Listings Chicago Plenum, CSA, cUL, ENERGY STAR®, ROHS, UL Damp Location, UL Wet Location
Lumen Output 1300 LM, 1500 LM, 1700 LM, 2300 LM, 2800 LM, 3300 LM, 4000 LM, 4500 LM, 5000 LM, 5500 LM, 6000 LM, 6500 LM, 7000 LM, 7500 LM, 800 LM, 8000 LM, 8500 LM, 9000 LM
Product Type Housing
Series LRM6
Shape Round
Voltage Rating 120, 120-277, 277, 347
Spec Sheets
A summary of the performance and other technical characteristics of the product.
File Type Document Title View
Clairity-Pro-Mobile-Application_pdf View
J7_1_1G4-L6_pdf View
LED-DIM_pdf View
Technical Files
Installation documents, building information models, etc.
File Type Document Title View
065-1209_pdf View
065-1232_pdf View
065-1239_pdf View
065-1281_pdf View
065-1300_pdf View
nLight-AIR-2_0-Quick-Start_pdf View
Resources
Download brochures, sell sheets, photometry files and other sales tools.
File Type Document Title View
Indy-L-Series-Easy-Sell-Sheet_pdf View
Indy-L-Series-Gen-4-Brochure_pdf View
Product Configurator
Select a Series to create a catalog number
