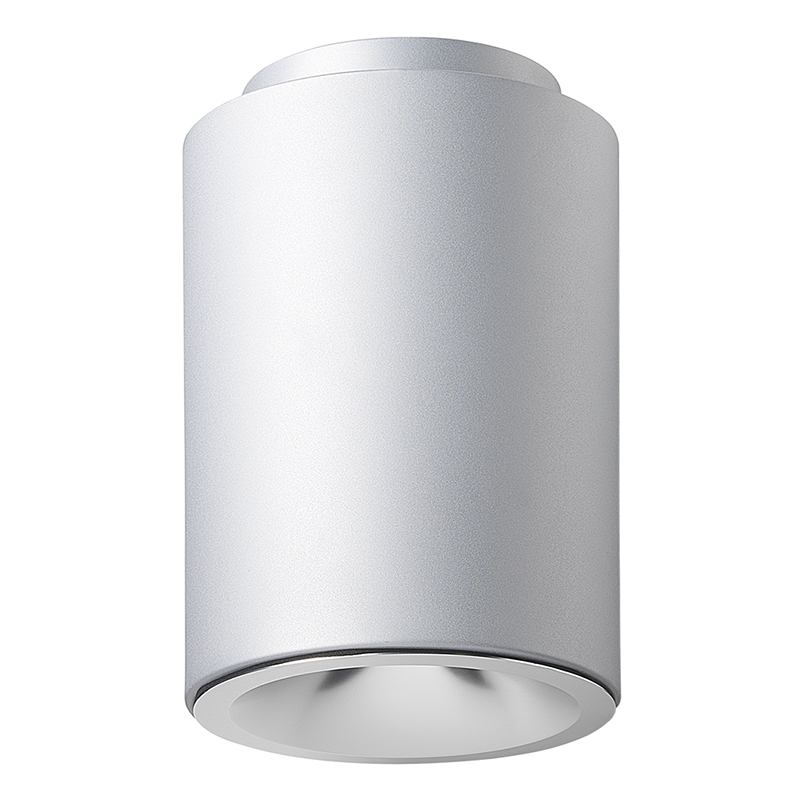

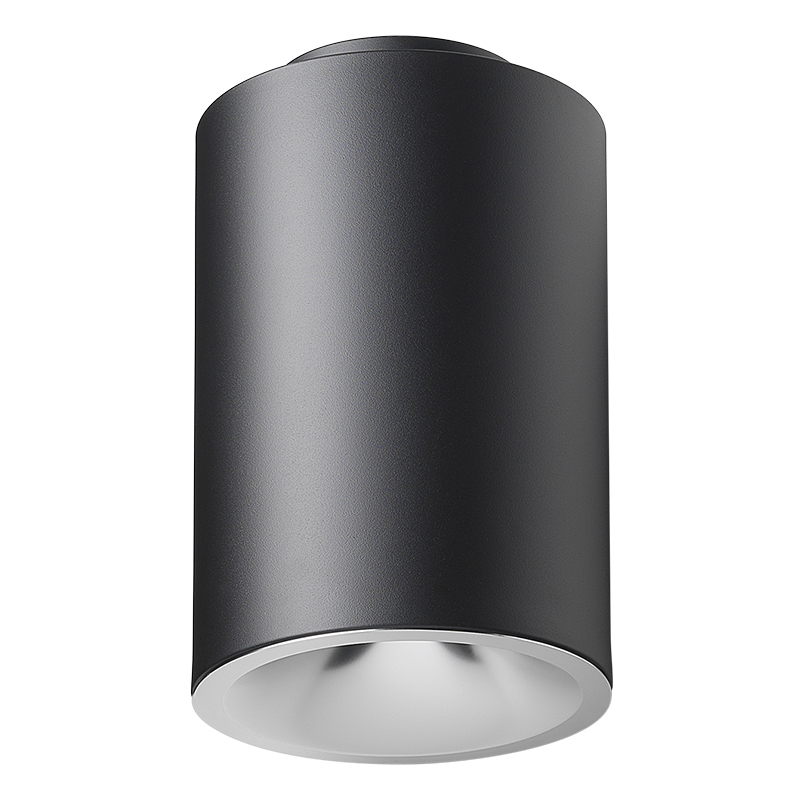

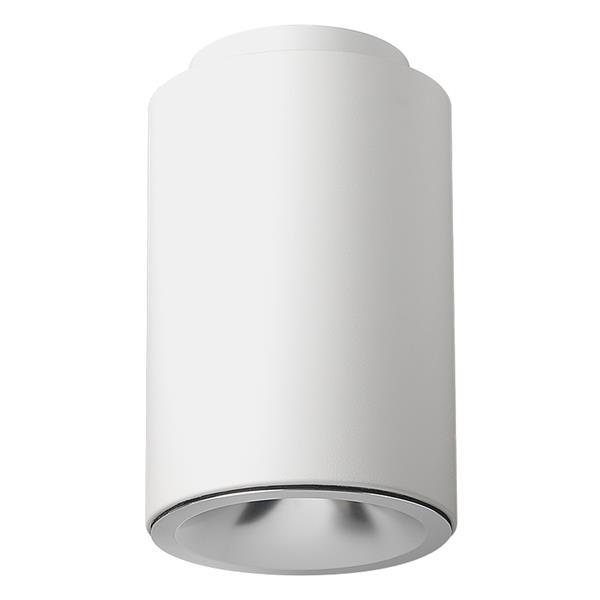

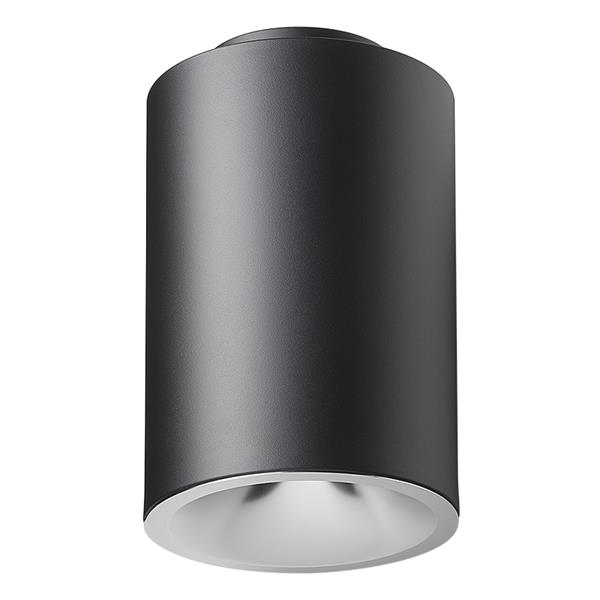

LC8S Cylinder

LED 8in Round Cylinder Surface Mount L-Series

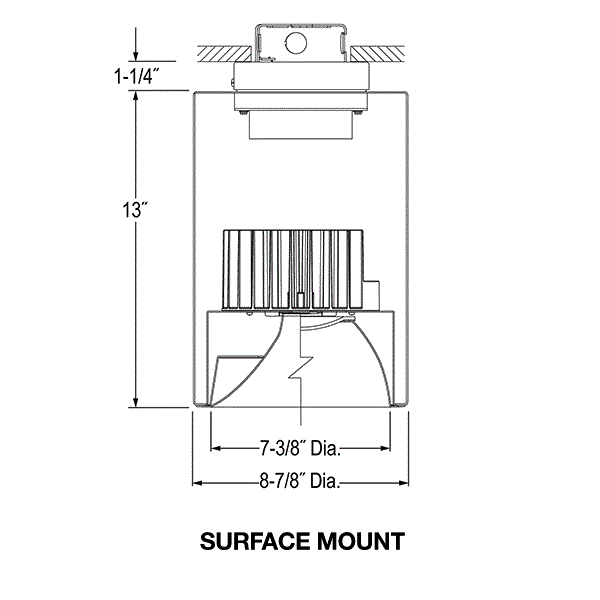

Indy™ 8-inch L-Series LED Cylinders are part of the latest generation of Indy™ L-Series luminaires, offering a fully coordinated family of commercial grade quality luminaires, from LED color rendering to aperture sizes and trim finishes. These cylinders can be surface, cable, pendant, or wall mounted.  They are the energy efficient choice for a wide range of commercial applications.

Specifications
Product overview and specifications
Aperture Size 8 IN
Atrius Integrated Solutions Atrius Retail
Atrius Platform Services Atrius Navigator
Atrius-Ready Yes
Brand Name Indy
Color Rendering Index 80, 90, 97
Control Networkable Control
Correlated Color Temperature 2700 K, 3000 K, 3500 K, 4000 K
Environment Indoor
Light Source LED
Listings CSA, cUL, ENERGY STAR®, ROHS, UL Damp Location
Lumen Output 4000 LM, 4500 LM, 5000 LM, 5500 LM, 800 LM, 1300 LM, 1500 LM, 1700 LM, 2300 LM, 2800 LM, 3300 LM
Product Type Cylinder
Quick Ship Yes
Series LC8S
Shape Cylinder
Voltage Rating 120, 120-277, 277, 347
Spec Sheets
A summary of the performance and other technical characteristics of the product.
File Type Document Title View
Clairity-Pro-Mobile-Application_pdf View
J7_2_2G4-LC8_pdf View
LED-DIM_pdf View
Technical Files
Installation documents, building information models, etc.
File Type Document Title View
065-1211_pdf View
065-1234_pdf View
065-1241_pdf View
065-1279_pdf View
065-1281_pdf View
065-1300_pdf View
nLight-AIR-2_0-Quick-Start_pdf View
Resources
Download brochures, sell sheets, photometry files and other sales tools.
File Type Document Title View
Indy-L-Series-Easy-Sell-Sheet_pdf View
Indy-L-Series-Gen-4-Brochure_pdf View
Product Configurator
Select a Series to create a catalog number
