LC6P Cylinder

LED 6in Round Cylinder Pendant Mount L-Series

By Indy

    Energy Star®Buy America(n)
  • Overview
  • Specifications

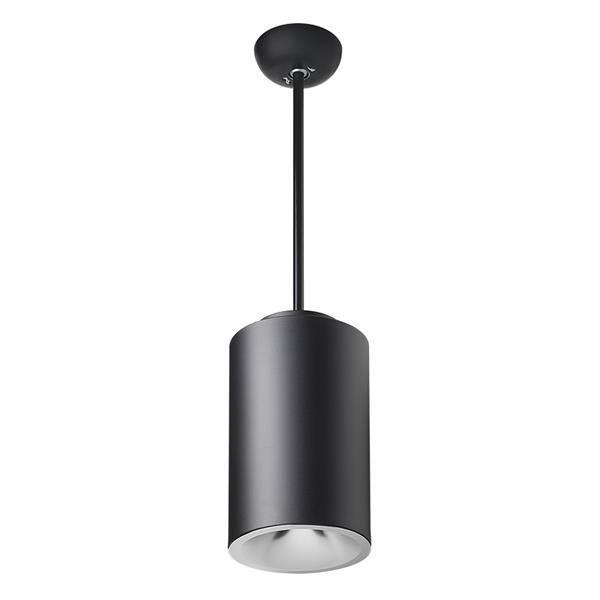

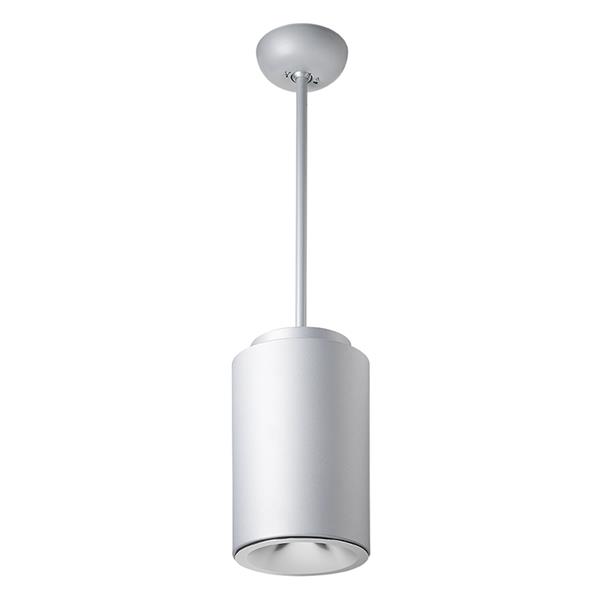

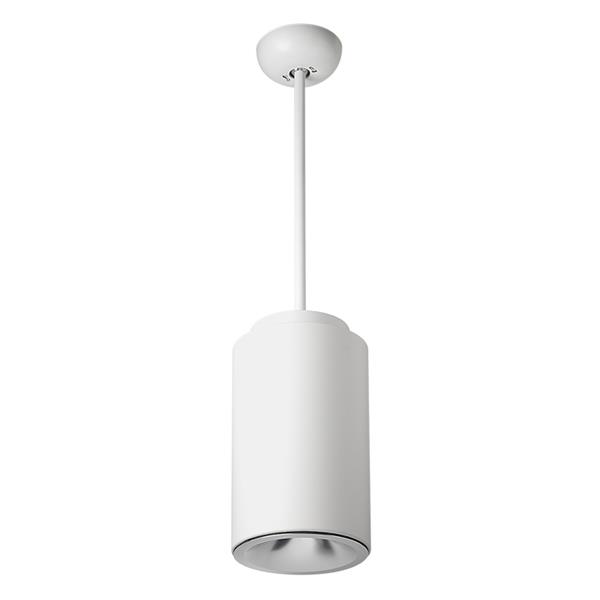

Indy™ 6-inch L-Series LED Cylinders are part of the latest generation of Indy™ L-Series luminaires, offering a fully coordinated family of commercial grade quality luminaires, from LED color rendering to aperture sizes and trim finishes. These cylinders can be surface, cable, pendant, or wall mounted. They are the energy efficient choice for a wide range of commercial applications.
Read More
Read Less

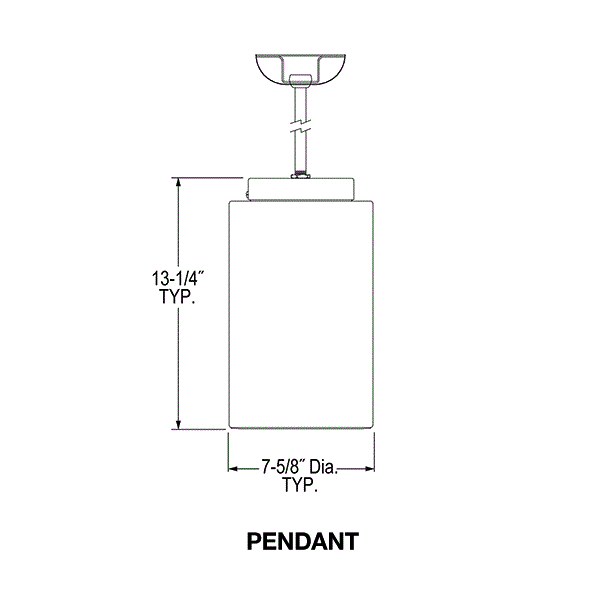

Size 6 IN
Shape Cylinder
Light Source LED - Static
Lumens 800 LM, 1300 LM, 1500 LM, 1700 LM, 2300 LM, 2800 LM, 3300 LM, 4000 LM, 4500 LM, 5000 LM, 5500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90, 97
Product Type Cylinder
Compliance Listing BAA, ENERGY STAR®, ROHS
Environmental Listing Damp Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, DALI, DMX, Forward Phase, Forward Phase 2W, Reverse Phase
Fixture Wattage 10.1, 10.3, 10.6, 10.7, 17, 17.1, 17.2, 17.3, 17.4, 17.6, 17.8, 17.9, 18, 18.1, 18.2, 18.5, 18.6, 10.9, 11, 11.1, 11.2, 11.3, 11.4, 11.6, 11.7, 24.5, 24.6, 25, 18.7, 18.8, 18.9, 19, 27.3, 27.5, 28.2, 28.5, 28.9, 29, 29.1, 34, 34.1, 34.2, 34.3, 14.4, 14.5, 14.7, 15, 15.1, 15.2, 15.3, 15.4, 15.5, 15.6, 15.7, 15.8, 15.9, 16, 16.1, 16.2, 16.3, 16.5, 16.6, 16.7, 16.8, 16.9, 29.3, 29.5, 29.6, 29.7, 29.8, 47.4, 47.5, 47.6, 47.7, 9.52, 9.53, 9.64, 9.87, 9.93, 25.5, 25.6, 25.7, 25.8, 25.9, 26, 26.1, 26.2, 26.3, 26.5, 41.7, 41.8, 42.1, 42.3, 42.4, 42.6, 34.4, 34.5, 34.6, 34.9, 35, 35.1, 35.3, 35.5, 35.7, 36.5, 36.6, 37.1, 37.3, 8.12, 8.2, 8.21, 8.37, 8.42, 9.18, 9.38, 9.43, 21.8, 22, 22.1, 22.2, 22.4, 22.6, 23.1, 23.5, 23.7, 23.9, 24, 24.4, 48.2, 48.4, 49, 51, 52, 53, 54, 55, 6.02, 6.61, 6.63, 7.12, 7.19, 7.43, 7.53, 7.6, 7.64, 7.73, 7.74, 7.79, 7.87, 8, 8.11, 42.7, 42.8, 42.9, 43, 43.1, 43.2, 43.3, 43.5, 43.6, 43.7, 43.8, 43.9, 44, 44.8, 44.9, 45, 45.2, 45.5, 45.6, 45.8, 46, 25.2, 25.4, 26.6, 26.8, 26.9, 27, 27.2, 20.9, 21, 21.1, 21.3, 21.4, 21.5, 21.6, 21.7, 46.1, 46.3, 46.8, 47, 47.3, 11.8, 11.9, 12, 12.1, 12.3, 12.5, 12.7, 12.8, 12.9, 13, 13.1, 13.2, 13.3, 13.4, 13.6, 13.7, 29.9, 30, 30.1, 30.2, 30.3, 30.4, 30.5, 30.6, 30.7, 30.8, 31, 31.1, 31.4, 31.5, 31.6, 31.7, 31.8, 32, 32.2, 32.4, 33.1, 33.5, 33.6, 33.7, 33.8, 13.8, 13.9, 14, 14.1, 19.1, 19.2, 19.3, 19.4, 19.5, 19.6, 19.9, 20.1, 20.2, 20.3, 20.4, 20.5, 20.8, 38.3, 38.8, 38.9, 39.1, 39.3, 39.4, 39.5, 39.6, 39.7, 40, 40.1, 40.2, 40.4, 41.4
Voltage Rating 120, 120-277, 277, 347
Color Black, Silver, White
Mounting Type Pendant
Series LC6P

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Clairity Pro Mobile Application.pdf Mobile App for nLight® AIR Startups 1/3/2020 View
    SPEC SHEET J7_2_1G4 LC6.pdf LC6 Series - LED Cylinder; Hyperbolic, Parabolic, Wall Wash, Baffle, Open Aperture 5/5/2021 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility LED-DIM.pdf LED Dimmer Compatibility Sheet 9/5/2019 View
    Installation Instructions 065-1212.pdf LC4P, LC6P, and LC8P Series (Gen 4), Pendant Mount Cylinders 8/26/2021 View
    Installation Instructions 065-1235.pdf LC4P, LC6P, and LC8P Series (Gen 4) - DMXR Pendant Mount Cylinders View
    Installation Instructions 065-1242.pdf LC4P, LC6P, and LC8P (Gen 4) DALI Pendant Mount Cylinders 12/5/2019 View
    Installation Instructions 065-1278.pdf LC4P, LC6P, and LC8P (Gen 4) DMXC Pendant Mount Cylinders 12/5/2019 View
    Installation Instructions 065-1281.pdf DMX/RDM Field Installation Manual (Gen 4) for Indy L-Series 12/5/2019 View
    Installation Instructions 065-1300.pdf Atrius Indoor Positioning with AE1BN for Indy L-Series Gen 4 11/26/2019 View
    Installation Instructions nLight AIR 2.0 Quick Start.pdf nLight® AIR Quick Start Guide View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Indy L-Series Gen 4 Brochure.pdf Indy L-Series Gen 4 Brochure 6/4/2021 View
    Sell Sheet Indy L-Series Easy Sell Sheet.pdf Converting to LED with Indy L-Series View
