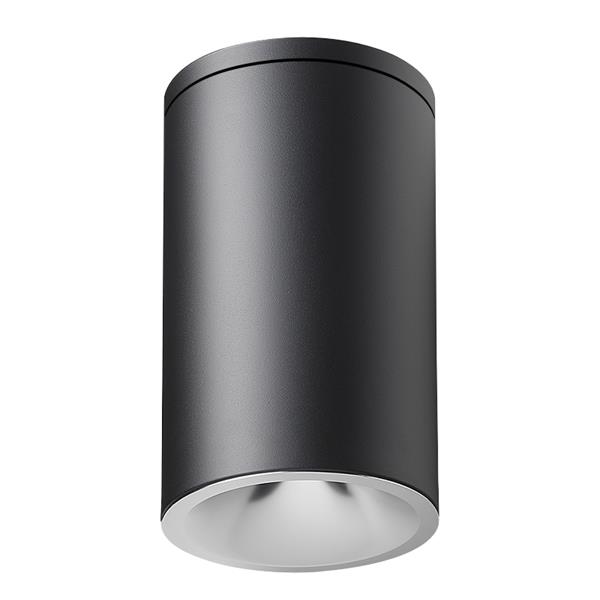

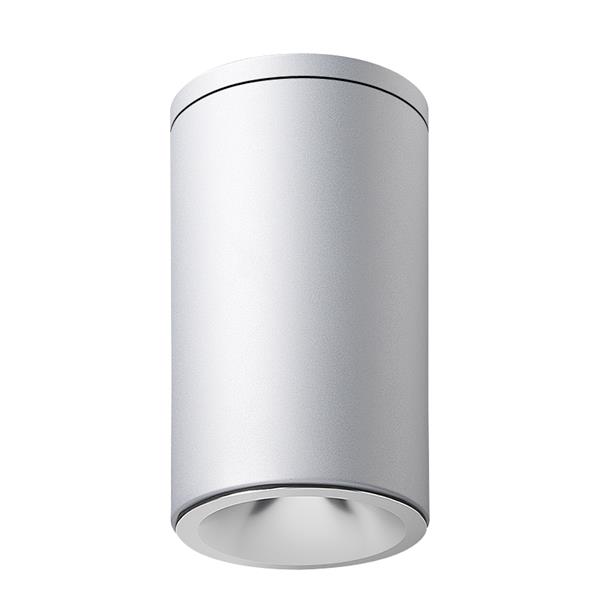

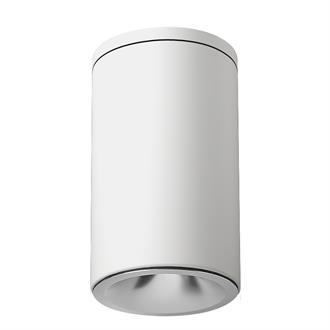

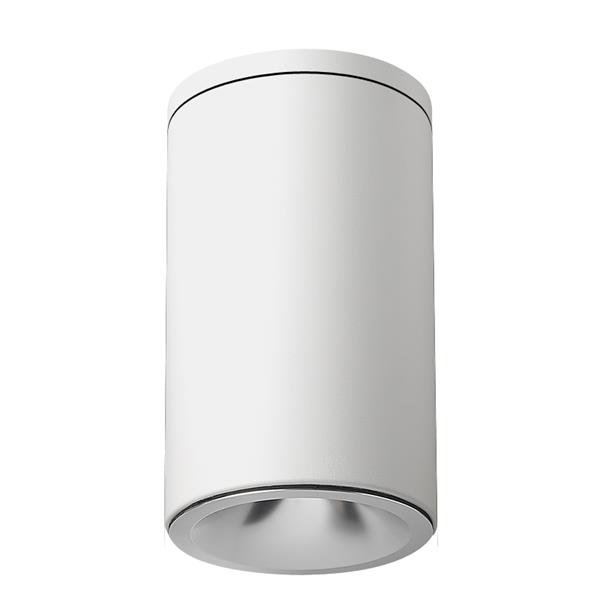

LC4S Cylinder

LED 4in Round Cylinder Surface Mount L-Series
    Energy Star®Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Size 4 IN
Shape Cylinder
Light Source LED - Static
Lumens 800 LM, 1300 LM, 1500 LM, 1700 LM, 2300 LM, 2800 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90, 97
Product Type Cylinder
Compliance Listing BAA and BABA, ENERGY STAR®, Low UGR, ROHS
Environmental Listing Damp Location
Regulatory Listing CSA
Control Platform nLight AIR G2, nLight Wired
Dimming Protocol 0-10V, DALI, DMX, Forward Phase, Forward Phase 2W, Reverse Phase
Fixture Wattage 10.1, 10.3, 10.6, 10.7, 10.9, 11, 11.1, 11.2, 11.4, 11.6, 11.7, 11.8, 11.9, 12, 12.1, 12.3, 12.5, 12.7, 12.8, 12.9, 13, 13.1, 13.3, 13.4, 13.6, 13.7, 13.8, 13.9, 14, 14.1, 14.4, 14.5, 14.7, 15, 15.1, 15.2, 15.3, 15.4, 15.5, 15.6, 15.7, 15.8, 15.9, 16, 16.1, 16.2, 16.3, 16.5, 16.6, 16.8, 16.9, 17, 17.1, 17.2, 17.3, 17.4, 17.6, 17.8, 17.9, 18, 18.1, 18.2, 18.5, 18.6, 18.7, 18.8, 18.9, 19, 19.1, 19.2, 19.3, 19.4, 19.5, 19.6, 19.9, 20.1, 20.3, 20.4, 20.5, 20.8, 20.9, 21, 21.1, 21.3, 21.4, 21.5, 21.6, 21.7, 21.8, 22, 22.1, 22.2, 22.4, 22.6, 23.1, 23.5, 23.7, 23.9, 24, 24.4, 24.5, 24.6, 25, 25.2, 25.4, 25.5, 25.6, 25.7, 25.8, 25.9, 26, 26.2, 26.3, 26.5, 26.6, 26.8, 26.9, 27, 27.2, 27.5, 28.2, 28.5, 28.9, 29, 29.1, 29.3, 29.5, 29.6, 29.7, 29.8, 29.9, 30, 30.1, 30.2, 30.3, 30.4, 31, 31.5, 31.7, 32, 32.4, 6.02, 6.61, 6.63, 7.12, 7.19, 7.43, 7.53, 7.6, 7.64, 7.73, 7.74, 7.87, 8, 8.11, 8.12, 8.2, 8.37, 8.42, 9.18, 9.38, 9.43, 9.52, 9.53, 9.64, 9.87, 9.93
Voltage Rating 120, 120-277, 277, 347
Trim Style Baffle, Cone, Corner Wallwash, Double Wallwash, Hyperbolic, Open, Single Wallwash
Color Black, Bronze, Clear, Gold, Pewter, Silver, Wheat, White
Mounting Type Recessed
Series LC4S

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet J7_2_0G4 LC4.pdf LC4 Series - LED Cylinder; Hyperbolic, Parabolic, Wall Wash, Baffle, Open Aperture 5/7/2025 View
    Spec Sheet Clairity Pro Mobile Application.pdf (Archived) Mobile App for nLight® AIR Startups (Archived) 1/3/2020 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility LED-DIM.pdf LED Dimmer Compatibility Sheet 10/22/2024 View
    Installation Instructions 065-1211.pdf LC4S/LC6S/LC8S - Surface Mount Cylinders (Gen 4) 8/26/2021 View
    Installation Instructions 065-1234.pdf LC4S/LC6S/LC8S - DMXR Surface Mount Cylinder (Gen 4) 1/11/2019 View
    Installation Instructions 065-1241.pdf LC4S/LC6S/LC8S - DALI Surface Mount Cylinders (Gen 4) 12/5/2019 View
    Installation Instructions 065-1279.pdf LC4S/LC6S/LC8S - DMXC Surface Mount Cylinders (Gen 4) 12/5/2019 View
    Installation Instructions 065-1281.pdf DMX/RDM Field Installation Manual (Gen 4) for Indy L-Series 12/5/2019 View
    Installation Instructions 065-1300.pdf Atrius Indoor Positioning with AE1BN for Indy L-Series Gen 4 11/26/2019 View
    Installation Instructions nLight AIR 2.0 Quick Start.pdf nLight® AIR Quick Start Guide 10/29/2018 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Indy L-Series Gen 4 Brochure.pdf Indy L-Series Gen 4 Brochure 6/4/2021 View
    Sell Sheet Indy L-Series Easy Sell Sheet.pdf Converting to LED with Indy L-Series 12/28/2017 View
