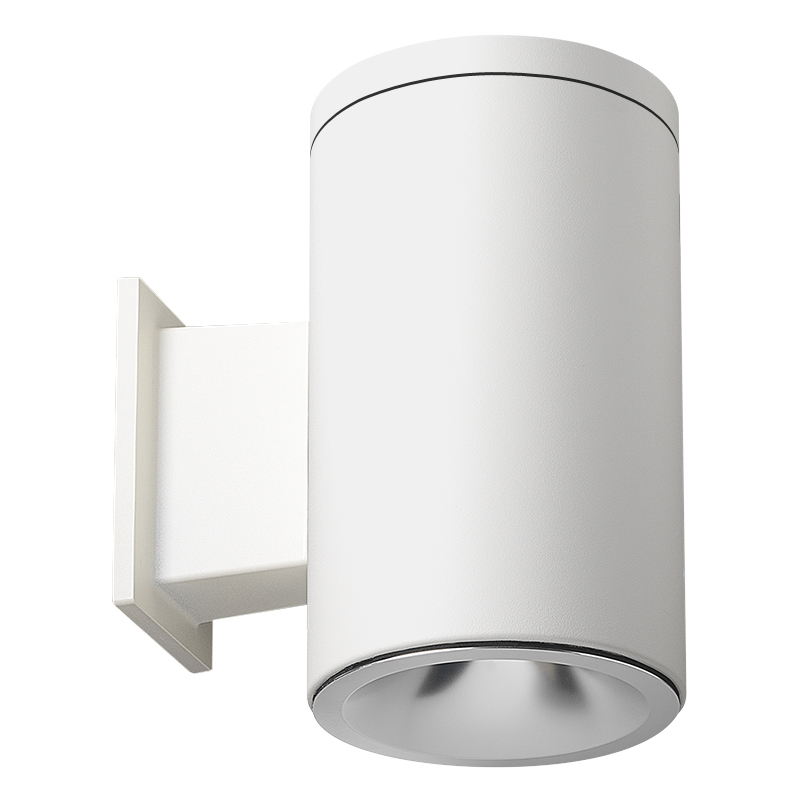

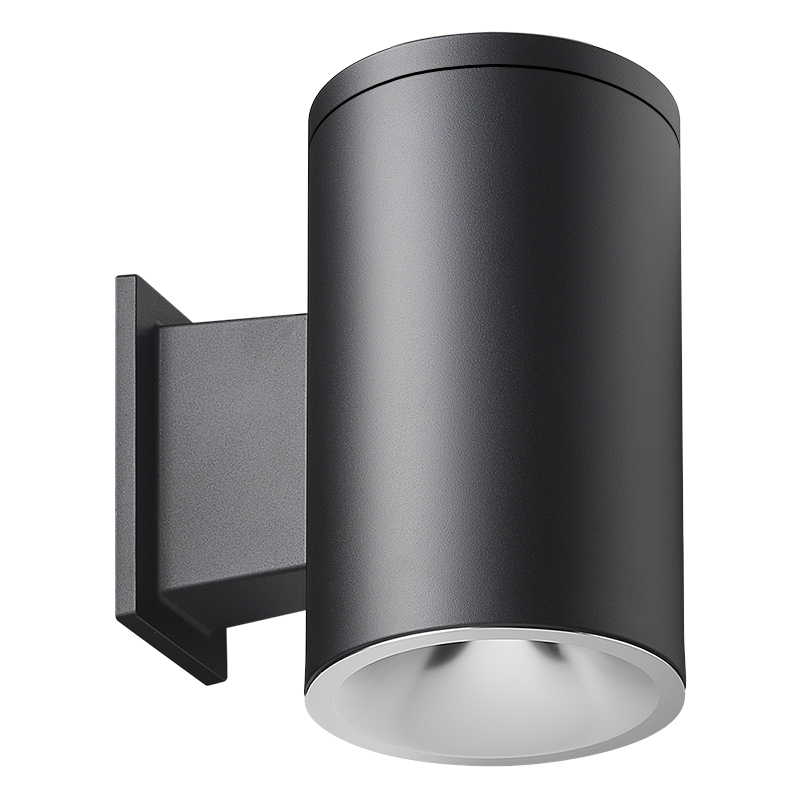

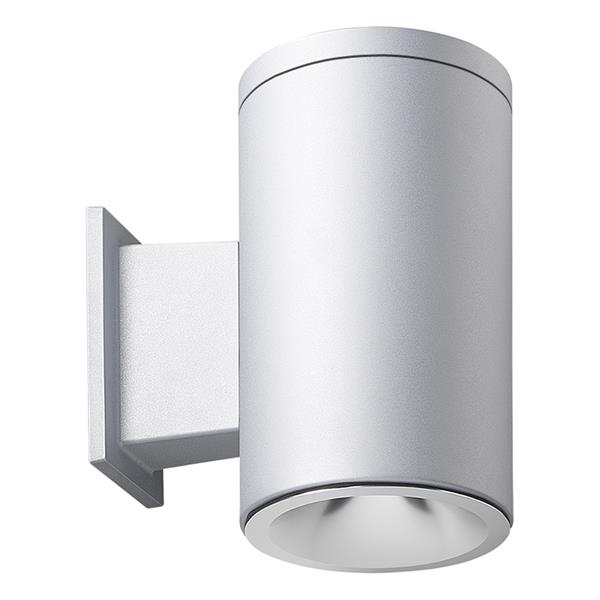

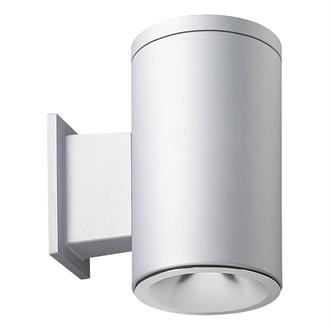

LC4W Cylinder

LED 4in Round Cylinder Wall Mount L-Series

Indy™ 4-inch L-Series LED Cylinders are part of the latest generation of Indy™ L-Series luminaires, offering a fully coordinated family of commercial grade quality luminaires, from LED color rendering to aperture sizes and trim finishes. These cylinders can be surface, cable, pendant, or wall-mounted.  They are the energy efficient choice for a wide range of commercial applications.

Product overview and specifications
Aperture Size 4 IN
Brand Name Indy
Color Rendering Index 80, 90, 97
Control Networkable Control
Correlated Color Temperature 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
Environment Indoor
Light Source LED
Listings CSA, cUL, ENERGY STAR®, ROHS, UL Damp Location
Lumen Output 1300 LM, 1500 LM, 1700 LM, 2300 LM, 2800 LM, 800 LM
Product Type Cylinder
Quick Ship Yes
Series LC4W
Shape Cylinder
Voltage Rating 120, 120-277, 277, 347
Spec Sheets
A summary of the performance and other technical characteristics of the product.
File Type Document Title View
Clairity-Pro-Mobile-Application_pdf View
J7_2_0G4-LC4_pdf View
Technical Files
Installation documents, building information models, etc.
File Type Document Title View
065-1213_pdf View
065-1236_pdf View
065-1243_pdf View
065-1280_pdf View
065-1281_pdf View
065-1300_pdf View
nLight-AIR-2_0-Quick-Start_pdf View
File Type Document Title View
LED-DIM_pdf View
Download brochures, sell sheets, photometry files and other sales tools.
File Type Document Title View
Indy-L-Series-Easy-Sell-Sheet_pdf View
Indy-L-Series-Gen-4-Brochure_pdf View
Product Configurator
Select a Series to create a catalog number
