AX4 4" Round Downlight

4" Precision Recessed New Construction
    WarmDimTunable WhiteCA Title 24/JA8Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 4 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Lumens 800 LM, 1200 LM, 1500 LM, 1700 LM, 2200 LM, 2700 LM, 3200 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, Variable
CRI 80, 90, 95
Product Type Housing
Compliance Listing BAA and BABA, CA Title 24, Chicago Plenum, JA8, Low UGR
Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC, Wet Location
Regulatory Listing cUL, UL
Control Platform nLight Wired
Dimming Protocol 0-10V, DALI, DMX, Forward Phase, Reverse Phase
Fixture Wattage 12, 12.9, 15.6, 17.2, 22.5, 25.1, 29.7, 33.2, 35.6, 36.2
Voltage Rating 57VDC, 120, 120-277, 277, DC2DC 57VDC
Trim Style Bevel, Cone, Lensed, Reflector
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series AX4

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Aculux-AX4-Downlight-4in-Round-Recessed-DC2DC.pdf AX4 Round 4" Downlight DC2DC ARCHITECTURE 2/5/2025 View
    Spec Sheet Aculux-AX4-Recessed-4in-Round-Downlight.pdf AX4 Round Downlight New Construction 12/16/2024 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00376-003 Rev.C DC2DC.pdf DC2DC 57VDC Supplemental Installation Sheet 3/11/2025 View
    Installation Instructions P3978.pdf AX4 and AX4SQ 4" New Construction Housing 2/9/2023 View
    Installation Instructions P4485.pdf AX4 4" Round Flangeless Adapter for Gypsum Ceiling Thickness .875" to 2" (FMA4/125,FMA4/163,FMA4/200 6/4/2018 View
    Installation Instructions P5515.pdf AX4 and AX4SQ Flangeless Adapter for Gypsum Ceiling Thickness less than .875" (FMA4/087,FMA4SQ/087) 6/4/2018 View
    Installation Instructions P5516.pdf AX4 4" Round Flangeless Adapter for Wood, Stone & Tile Ceiling Thickness .875" to 1.625" (SFM4) 6/4/2018 View

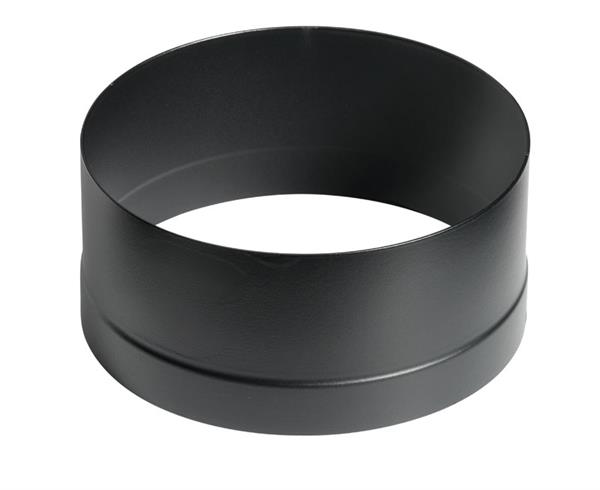

    Installation Instructions P5517.pdf AX4 4" Round Ceiling Thickness Adapter (CTA4/125,CTA4/163,CTA4/200) 6/5/2018 View
