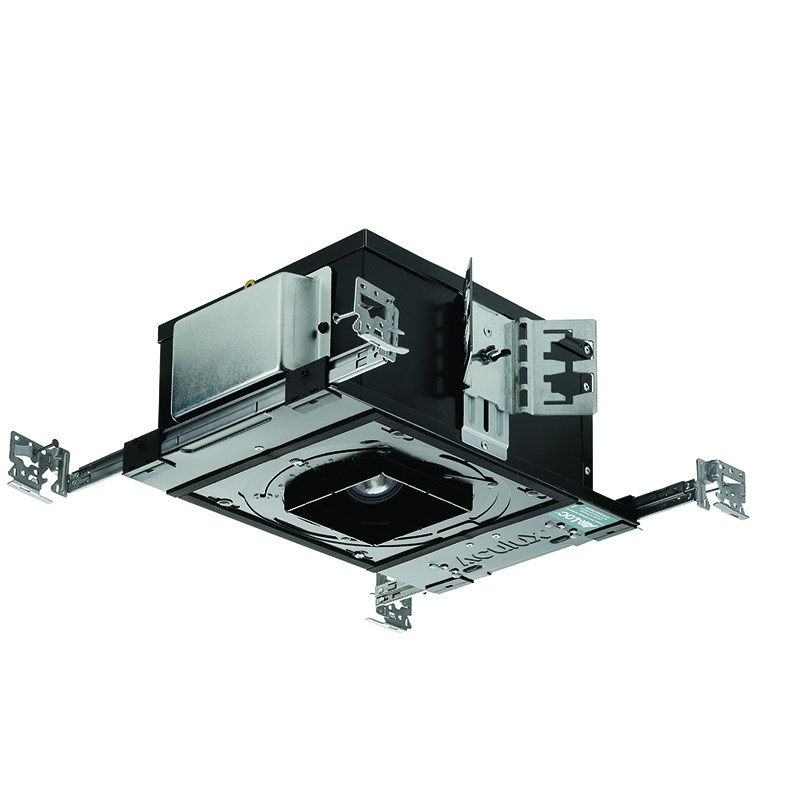

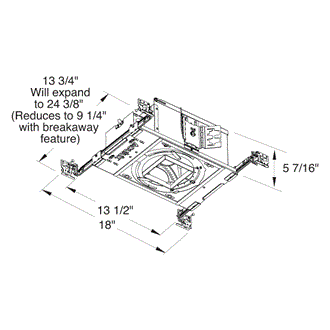

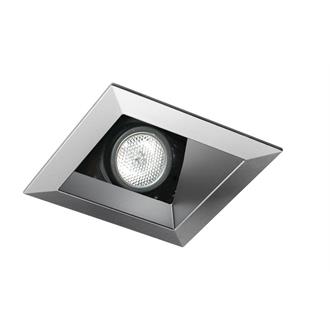

AX3SQ A New Construction Universal Housing

Aculux® LED 3in Square New Construction Adjustable Housing

By Aculux

    WarmDimTunable WhiteEnergy Star®CA Title 24/JA8Buy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Aculux® 3-inch LED precision luminaires are available in 6 lumen packages ranging from 800-3000 lumens while consuming only 7-33 watts. These universal recessed luminaires compatible with downlighting, adjustable accent or wall wash trims. The luminaire features field interchangeable optics in 10 distributions, capable of delivering up to 31,000 CBCP. Acu-Aim™ precision geared aiming provides 370 deg. rotation and 45 deg. tilt. The optimized center-beam optics results in quiet apertures while maximizing fixture efficiency. These recessed precision luminaires are also available with patented WarmDim® (3000K-1800K) and Tunable White (5000K-2700K) technologies.
Read More
Read Less
Size 3 IN
Shape Square
Light Source Halogen, LED - Dynamic, LED - Static
Lumens 800 LM, 1200 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, Variable
CRI 80, 90, 95
Product Type Housing
Compliance Listing BAA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8, Low UGR
Environmental Listing Damp Location, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Fixture Wattage 11, 12, 13.8, 14.6, 19.7, 20.2, 25.8, 26.3, 32.9, 33.3, 7, 7.6
Voltage Rating 120, 120-277, 277
Trim Style Adjustable, Angle-Cut, Bevel, Lensed, Pinhole
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series AX3SQ

Read More Read Less
