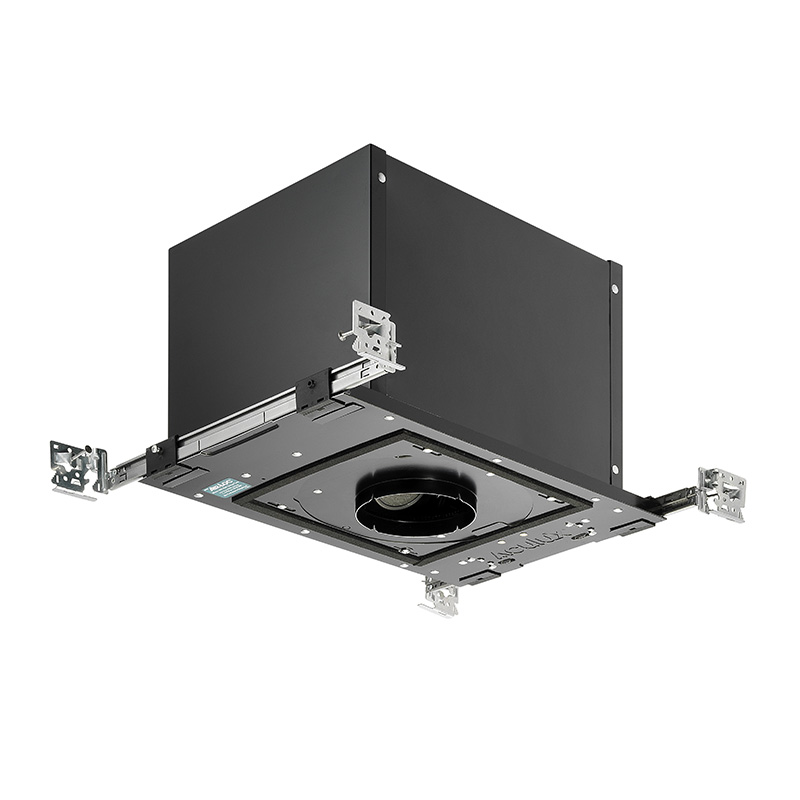

Product Image

AX3 A WDTW New Construction Housing

Aculux® LED 3in Round WDTW New Construction Adjustable Housing Discontinued

By Aculux

    WarmDimTunable WhiteBuy America(n) Option Available
  • Overview
  • Specifications

This product webpage has been discontinued, please contact your sales local representative.

Aculux® 3-1/4” LED Warm Dim & Tunable White luminaire features both technologies in a single fixture. In Warm Dim mode the luminaire warms from 3000K to less than 1800K when dimmed, exactly matching the dimming profile of halogen, and in Tunable White mode the CCT can be tuned from 4350K to 2000K. The IC-Rated luminaire uses only 20-watts from 1000 lumens, and is equipped with all of the same high-precision, high-performance features and options Aculux is renowned for Acu-Aim™ geared aiming, patent pending optical system and patented (US Patent 8,277,090) Tru-Line™ platform.
Read More
Read Less
Size 3 IN
Shape Round
Light Source Halogen, LED - Dynamic, LED - Static
Lumens 1000 LM
CCT / LED Color Variable
CRI 90
Product Type Housing
Compliance Listing BAA, Chicago Plenum
Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, DMX
Fixture Wattage 18.9, 19.4, 20.9, 21.4
Voltage Rating 120, 120-277, 277
Trim Style Adjustable, Angle-Cut, Baffle, Bevel, Cone, Hyperbolic, Lensed, Open, Pinhole, Single Wallwash, Slotted
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series AX3

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET AX3 WDTW 3ABAF.pdf (Discontinued) AX3 WDTW/3ABAF - 3" LED WarmDim® and Tunable White New Construction, Angle-Cut Baffle Trim 4/5/2021 View
    SPEC SHEET AX3 WDTW 3ABV.pdf (Discontinued) AX3 WDTW/3ABV - 3" LED WarmDim® and Tunable White New Construction, Adjustable Bevel Trim 4/5/2021 View
    SPEC SHEET AX3 WDTW 3AC.pdf (Discontinued) AX3 WDTW/3AC - 3" LED WarmDim® and Tunable White New Construction, Angle-Cut Reflector Trim 4/5/2021 View
    SPEC SHEET AX3 WDTW 3AC20.pdf (Discontinued) AX3 WDTW/3AC20 - 3" LED WarmDim® and Tunable White New Construction, Shallow Angle-Cut Reflector 4/5/2021 View
    SPEC SHEET AX3 WDTW 3AOVAL.pdf (Discontinued) AX3 WDTW/3AOVAL - 3" LED WarmDim® and Tunable White New Construction, Adjustable Slot Pinhole Trim 4/5/2021 View
    SPEC SHEET AX3 WDTW 3APIN.pdf (Discontinued) AX3 WDTW/3APIN - 3" LED WarmDim® and Tunable White New Construction, Adjustable Pinhole Trim 4/5/2021 View
    SPEC SHEET AX3 WDTW 3APINLG.pdf (Discontinued) AX3 WDTW/3APINLG - 3" LED WarmDim® and Tunable White New Construction, Adjustable Pinhole Trim 4/5/2021 View
    SPEC SHEET AX3 WDTW 3ASLOT.pdf (Discontinued) AX3 WDTW/3ASLOT - 3" LED WarmDim® and Tunable White New Construction, Slot-Cut Reflector Trim 4/5/2021 View
    SPEC SHEET AX3 WDTW 3DBAF.pdf (Discontinued) AX3 WDTW/3DBAF - 3" LED WarmDim® and Tunable White New Construction, Downlight Baffle Trim 4/5/2021 View
    SPEC SHEET AX3 WDTW 3DBV.pdf (Discontinued) AX3 WDTW/3DBV - 3" LED WarmDim® and Tunable White New Construction, Downlight Bevel Trim 4/5/2021 View
    SPEC SHEET AX3 WDTW 3DH.pdf (Discontinued) AX3 WDTW/3DH - 3" LED WarmDim® and Tunable White New Construction, Hyperbolic Downlight Trim 4/5/2021 View
    SPEC SHEET AX3 WDTW 3DP.pdf (Discontinued) AX3 WDTW/3DP - 3" LED WarmDim® and Tunable White New Construction, Parabolic Downlight Trim 4/5/2021 View
    SPEC SHEET AX3 WDTW 3DPIN.pdf (Discontinued) AX3 WDTW/3DPIN - 3" LED WarmDim® and Tunable White New Construction, Downlight Pinhole Trim 4/5/2021 View
    SPEC SHEET AX3 WDTW 3WW.pdf (Discontinued) AX3 WDTW/3WW - 3" LED WarmDim® and Tunable White New Construction, Wall Wash Trim 4/5/2021 View
    SPEC SHEET AX3 WDTW.pdf (Discontinued) AX3 WDTW Series - 3" LED WarmDim®/Tunable White New Construction, Complete Specification Sheet 4/5/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility ACLXLED3-DIM.pdf AX3/AX3SQ and AX4/AX4SQ Series, Dimmer Compatibility 7/10/2019 View
    Installation Instructions P2886.pdf AX3 and AX3SQ 3" Flangeless Adapter (FMA3/087,FMA3SQ/087) View
    Installation Instructions P2908.pdf AX3 3" Round Ceiling Thickness Adapter (CTA3/125,CTA3/163) View
    Installation Instructions P3647.pdf AX3 3" Round Flangeless Adapter (SFM3/087,SFM3/125,SFM3/163) View
    Installation Instructions P4482.pdf AX3 3" Round Flangeless Adapter (FMA3/125,FMA3/163) View
    Installation Instructions P6160.pdf AX3 and AX3SQ 3" DMX512 and RDM Field Installable Driver View
    Installation Instructions P3310.pdf (Discontinued) AX3 and AX3SQ 3" Recessed New Construction Housing 10/28/2021 View
    Installation Instructions P3931.pdf (Discontinued) AX3 and AX3SQ 3" Recessed New Construction Housing 8/25/2021 View
