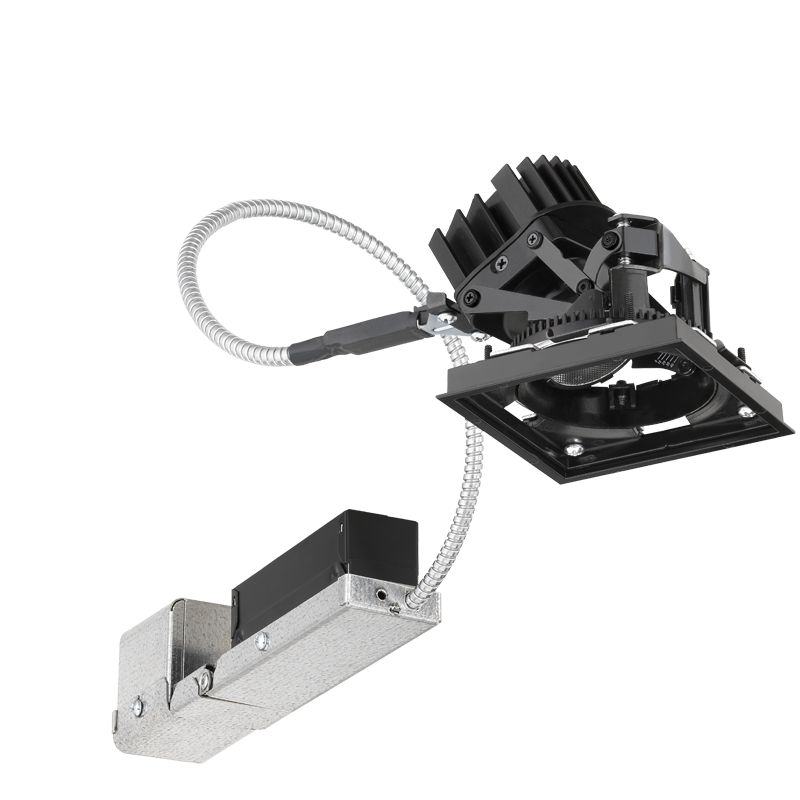

AX2SQ AR Remodel Universal Housing
By Aculux
- Overview
- Specifications
| Size | 2 IN |
| Shape | Square |
| Light Source | LED - Static |
| Lumens | 800 LM, 1200 LM, 1500 LM |
| CCT / LED Color | 2700 K, 3000 K, 3500 K, 4000 K |
| CRI | 80, 90 |
| Product Type | Housing |
| Compliance Listing | BAA, ENERGY STAR® |
| Environmental Listing | Damp Location, Non-IC, Wet Location |
| Regulatory Listing | cUL, UL |
| Dimming Protocol | 0-10V, Forward Phase, Reverse Phase |
| Fixture Wattage | 10, 14.3, 14.7, 16.5, 17.3, 9.9 |
| Voltage Rating | 120, 120-277 |
| Trim Style | Adjustable, Angle-Cut, Bevel, Lensed, Open, Pinhole, Scoop, Single Wallwash |
| Color | Black, Clear, Wheat, White |
| Mounting Type | Recessed |
| Series | AX2SQ |
Read More Read Less
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET AX2SQ AR G2 2SQA.pdf Aculux AX2SQ AR Series, 2SQA Angle-Cut Reflector 10/21/2022 View SPEC SHEET AX2SQ AR G2 2SQABV.pdf Aculux AX2SQ AR Series, 2SQABV Adjustable Bevel 10/21/2022 View SPEC SHEET AX2SQ AR G2 2SQAPIN.pdf Aculux AX2SQ AR Series, 2SQAPIN Adjustable Pinhole 10/21/2022 View SPEC SHEET AX2SQ AR G2 2SQWW.pdf Aculux AX2SQ AR Series, 2SQWW Wall Wash 10/21/2022 View SPEC SHEET AX2SQ AR G2.pdf Aculux AX2SQ AR Series, 2" LED Square Remodel Universal ADJ/DL/WW -Complete Specification Sheet 10/21/2022 View SPEC SHEET AX2SQ DR G2 2SQD.pdf Aculux AX2SQ DR / AX2SQ AR Series, 2SQD Downlight Reflector 10/21/2022 View SPEC SHEET AX2SQ DR G2 2SQDBV.pdf Aculux AX2SQ DR / AX2SQ AR Series, 2SQDBV Downlight Bevel 10/21/2022 View SPEC SHEET AX2SQ DR G2 2SQDPIN.pdf Aculux AX2SQ DR / AX2SQ AR Series, 2SQDPIN Downlight Pinhole 10/21/2022 View
Need to Create a Submittal Spec Sheet? Take Me There
-
Photometry & Revit (BIM)
Use %(percent) to separate search terms.Description Report Design Tools {{photometryItem.Catalog}} Report CLICK HERE to start your request for a BIM Model or IES file. -
Spectral Data Sheets
-
Guideline Specifications
-
Revit Component Files (Non-Illuminated)
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type Document Title Description Updated View Dimming Compatibility ACLXLED2-DIM.pdf AX2 and AX2SQ Series, Dimmer Compatibility 10/31/2018 View Installation Instructions P3705.pdf AX2(SQ) Remodel Flangeless Adapter Ceiling Thickness .5" to 1.5" (FMA2R & FMA2SQR) 6/6/2018 View Installation Instructions P3709.pdf AX2 and AX2SQ 2" Non-IC Remodel Housing 10/28/2021 View -
Utility Rebate Search
To look-up a rebate for this product, please follow the steps below:
Step 1: Enter the Zip Code or Select the State and Utility
Step 2: Ensure that the correct Product Category is selected if there is more than one option
-
Replacement Parts
-
Confidential Documents
-
Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )
Document Type Document Title Description Updated View Brochures Aculux 2in Precision Recessed LED Brochure Aculux 2 Inch LED Gen 2 Brochure 9/27/2017 View -
