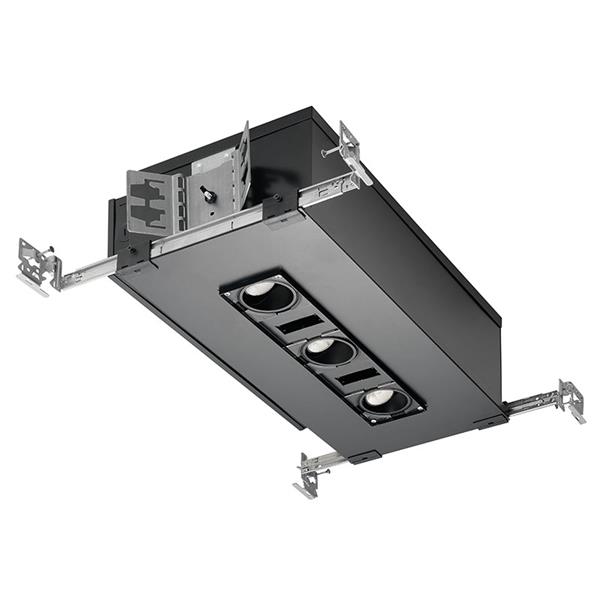

AX2SQ 3A New Construction 3-Head Multiple

Aculux® LED 2in 3 Head Square New Construction Adjustable Multiple

By Aculux

    Energy Star®  Buy America(n)
  • Overview
  • Specifications
Aculux® 2-inch, 3-head IC or Non-IC rated new construction adjustable luminaire is discreet and aesthetically stunning, delivering up to 1,500 lumens per head of high precision adjustable accent lighting. Its state-of-the-art LED technology offers superb, color consistency within 2 step MacAdam ellipse. The extremely efficient optical system providing 11 beam options, coupled with precision geared aiming provides superior beam control, putting the right amount of light in precisely the right places.
Read More
Read Less
Size 2 IN
Shape Square
Light Source LED - Static
Lumens 800 LM, 1200 LM, 1500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Housing
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®
Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Fixture Wattage 10, 14.3, 14.7, 16.5, 17.3, 9.9
Voltage Rating 120, MVOLT
Mounting Type Recessed
Series AX2SQ

Read More Read Less
