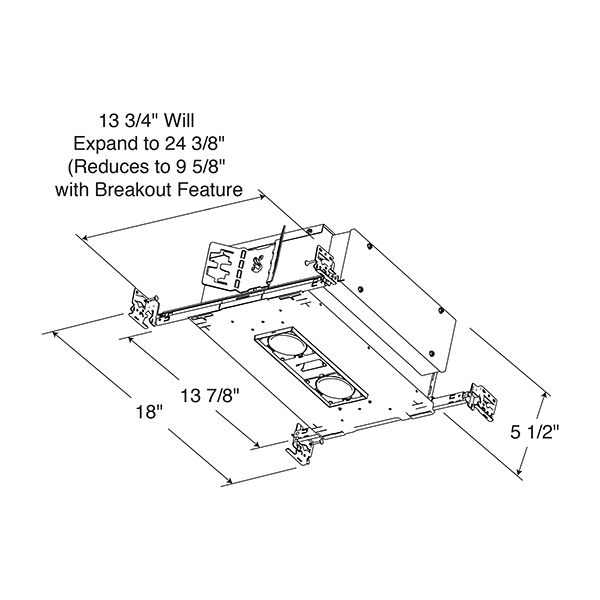

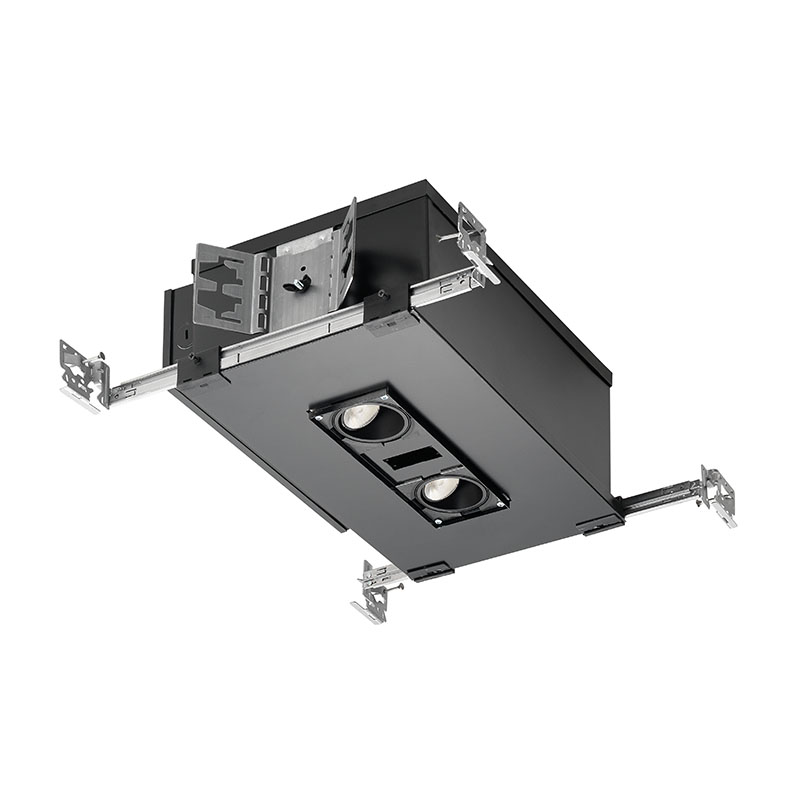

AX2SQ 2A New Construction 2-Head Multiple

Aculux® LED 2in 2 Head Square New Construction Adjustable Multiple

Aculux® 2-inch, 2-head IC or Non-IC rated new construction adjustable luminaire is discreet and aesthetically stunning, delivering up to 1,500 lumens per head of high precision adjustable accent lighting. Its state-of-the-art LED technology offers superb, color consistency within 2 step MacAdam ellipse. The extremely efficient optical system providing 11 beam options, coupled with precision geared aiming provides superior beam control, putting the right amount of light in precisely the right places.

Read Less

Size	2 IN
Shape	Square
Light Source	LED - Static
Lumens	800 LM, 1200 LM, 1500 LM
CCT / LED Color	2700 K, 3000 K, 3500 K, 4000 K
CRI	80, 90
Product Type	Housing
Compliance Listing	BAA, Chicago Plenum, ENERGY STAR®
Environmental Listing	Damp Location, Wet Location
Regulatory Listing	cUL, UL
Dimming Protocol	0-10V, Forward Phase, Reverse Phase
Fixture Wattage	10, 14.3, 14.7, 16.5, 17.3, 9.9
Voltage Rating	120, MVOLT
Mounting Type	Recessed
Series	AX2SQ

Read More Read Less

Spec Sheets

Document Type	Document Title	Description	Updated	View	Download	Email
SPEC SHEET	AX2SQ A-2A-3A G2.pdf	Aculux AX2SQ Series, 2" LED Square Recessed Multiple ADJ/WW/DL	4/5/2021	View	Download	Email

Photometry & Revit (BIM)

Search within... Use %(percent) to separate search terms.

Clear Filters

{{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

View Form Sizing

Description	Report	Design Tools	.ies	BIM

{{photometryItem.Catalog}}	Report	{{tool.Title}}	.ies	BIM

Prev
{{page}}
Next

CLICK HERE to start your request for a BIM Model or IES file.

Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

Document Type	Document Title	Description	Updated	View	Download	Email
Dimming Compatibility	ACLXLED2-DIM.pdf	AX2 and AX2SQ Series, Dimmer Compatibility	10/31/2018	View	Download	Email
Installation Instructions	P3739.pdf	Installation Instructions - CTA2SQ/120 and CTA2SQ/150 Ceiling Thickness Adapters	6/5/2018	View	Download	Email
Installation Instructions	P3767.pdf	Installation Instructions - FMA2SQ2/075 and FMA2SQ3/075 New Construction Flangeless Adapters	6/4/2018	View	Download	Email
Installation Instructions	P4692.pdf	Installation Instructions - FMA2SQ2/120, FMA2SQ2/150, FMA2SQ3/120 & FMA2SQ3/150 Flangeless Adapters	6/5/2018	View	Download	Email
Installation Instructions	P6044.pdf	Installation Instructions - Aculux AX2SQ Series, 2 and 3 Head Multiple LED Luminaire	12/27/2018	View	Download	Email
