AX2 D New Construction Housing

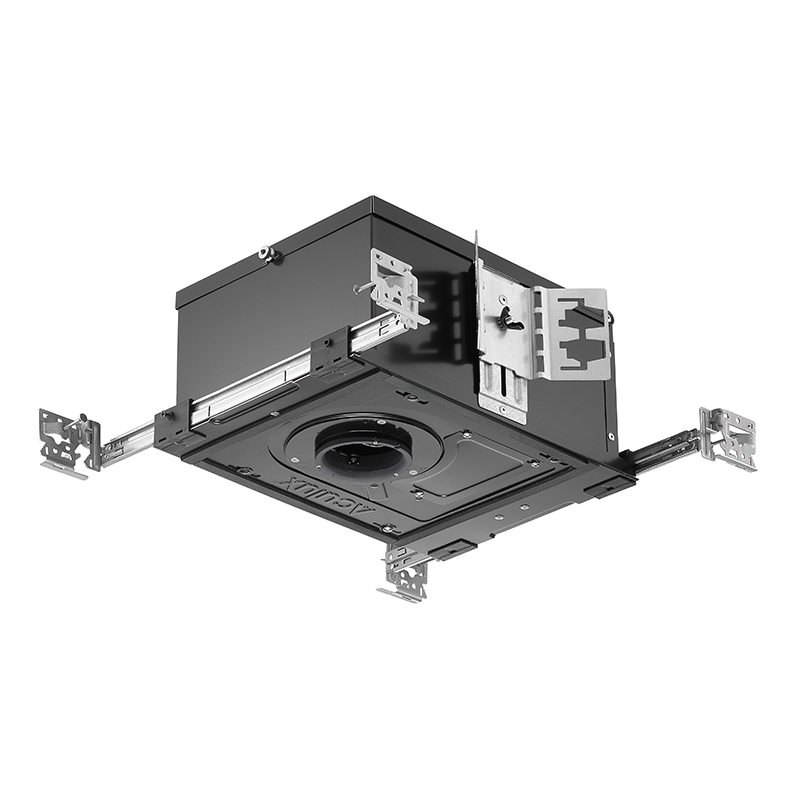

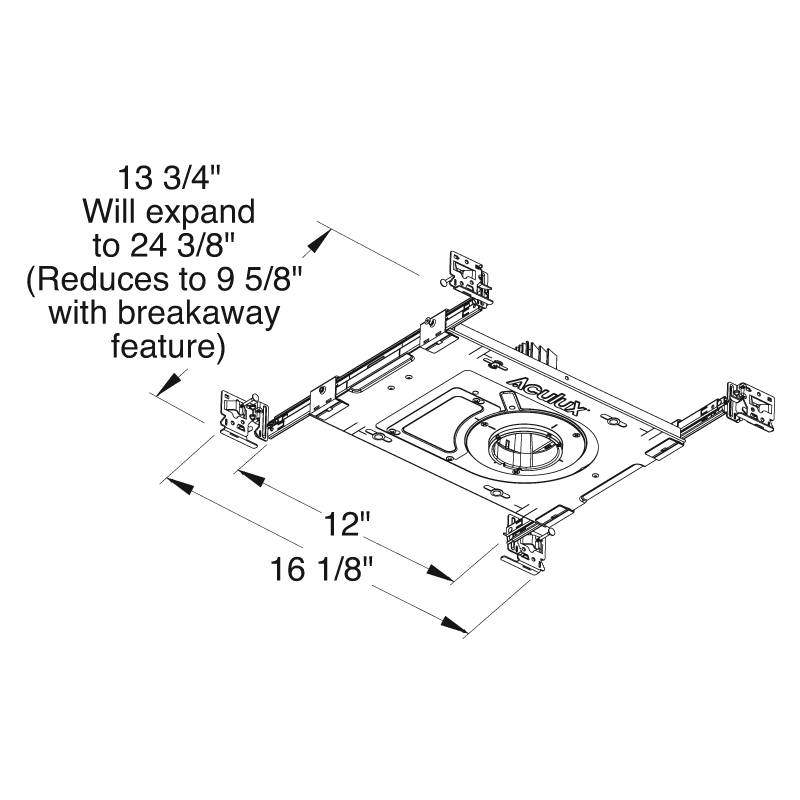

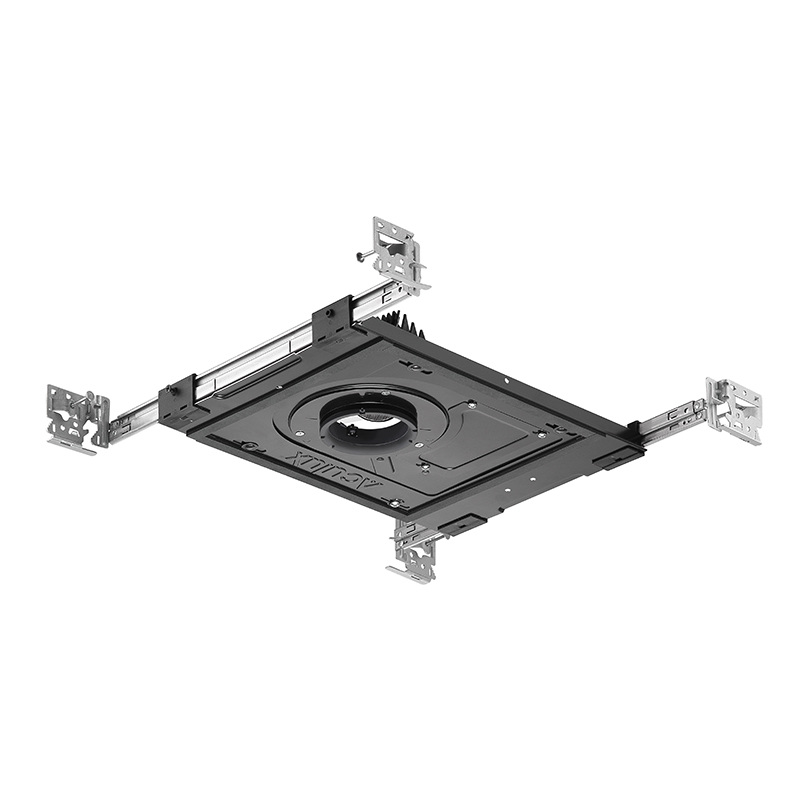

Aculux® LED 2in Round New Construction Housing

By Aculux

Aculux® 2-inch LED precision downlight and wall wash luminaire is discreet and aesthetically stunning, delivering up to 1,500 lumens of high precision downlighting. Its state-of-the-art LED technology offers superb color-consistency within 2 step MacAdam ellipse. These luminaires perform as well as or better than conventional recessed fixtures two or three times their size. The efficient optical system provides superior beam control. Precision installation platform facilitates perfect fixture to fixture alignment.

Read Less

Size	2 IN
Shape	Round
Light Source	LED - Static
Lumens	800 LM, 1200 LM, 1500 LM
CCT / LED Color	2700 K, 3000 K, 3500 K, 4000 K
CRI	80, 90
Product Type	Housing
Compliance Listing	BAA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8
Environmental Listing	Damp Location, Wet Location
Regulatory Listing	cUL, UL
Dimming Protocol	0-10V, Forward Phase, Reverse Phase
Fixture Wattage	10, 14.3, 14.7, 16.5, 17.3, 9.9
Voltage Rating	120, MVOLT
Trim Style	Bevel, Cone, Hyperbolic, Lensed, Open, Pinhole
Color	Black, Clear, Wheat, White
Mounting Type	Recessed
Series	AX2

Read More Read Less

Spec Sheets

Document Type	Document Title	Description	Updated	View	Download	Email
SPEC SHEET	AX2 D G2 2DBV.pdf	AX2 D / AX2 A Series, 2DBV Downlight Bevel	4/20/2022	View	Download	Email
SPEC SHEET	AX2 D G2 2DH.pdf	AX2 D / AX2 A Series, 2DH Hyperbolic Downlight	4/20/2022	View	Download	Email
SPEC SHEET	AX2 D G2 2DP.pdf	AX2 D / AX2 A Series, 2DP Parabolic Downlight	4/20/2022	View	Download	Email
SPEC SHEET	AX2 D G2 2DPIN.pdf	AX2 D / AX2 A Series, 2DPIN Downlight Pinhole	4/20/2022	View	Download	Email
SPEC SHEET	AX2 D G2.pdf	AX2 D Series, 2" LED Round New Construction Downlight - Complete Specification Sheet	4/20/2022	View	Download	Email

Create Submittal Spec Sheet

Photometry & Revit (BIM)

Search within... Use %(percent) to separate search terms.

Clear Filters

{{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

View Form Sizing

Description	Report	Design Tools	.ies	BIM

{{photometryItem.Catalog}}	Report	{{tool.Title}}	.ies	BIM

Prev
{{page}}
Next

CLICK HERE to start your request for a BIM Model or IES file.

Spectral Data Sheets
Guideline Specifications
BIM Models (Revit)

Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

Document Type	Document Title	Description	Updated	View	Download	Email
Dimming Compatibility	ACLXLED2-DIM.pdf	AX2 and AX2SQ Series, Dimmer Compatibility	10/31/2018	View	Download	Email
Installation Instructions	AX2_FMA2/120_FMA2/150 Flangeless_Adapter	AX2 Series FMA2/120 and FMA2/150 Flangeless Adapters for New Construction Fixtures	6/5/2018	View	Download	Email
Installation Instructions	P3704.pdf	AX2 and AX2SQ Series FMA2/075 and FMA2SQ/075 Flangeless Adapters for New Construction Fixtures	6/5/2018	View	Download	Email
Installation Instructions	P3707.pdf	AX2 and AX2SQ Series LED Type-IC New Construction Downlight Fixtures	12/27/2018	View	Download	Email
Installation Instructions	P3708.pdf	AX2 and AX2SQ Series Type Non-IC New Construction Downlight Fixtures	12/27/2018	View	Download	Email
Installation Instructions	P3738.pdf	AX2 Series CTA2/120 and CTA2/150 Ceiling Thickness Adapters	6/5/2018	View	Download	Email

Utility Rebate Search

To look-up a rebate for this product, please follow the steps below:

Step 1: Enter the Zip Code or Select the State and Utility
Step 2: Ensure that the correct Product Category is selected if there is more than one option
Replacement Parts
Confidential Documents

Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

Document Type	Document Title	Description	Updated	View	Download	Email
Brochures	Aculux 2in Precision Recessed LED Brochure	Aculux 2 Inch LED Gen 2 Brochure	9/27/2017	View	Download	Email
