AX2 A New Construction Universal Housing

Aculux® LED 2in Round New Construction Adjustable Housing

By Aculux

    Energy Star®CA Title 24/JA8Buy America(n) Option Available
  • Overview
  • Specifications
Aculux® 2-inch new construction adjustable, downlight and wall wash luminaire is discreet and aesthetically stunning, delivering up to 1,500 lumens of high precision downlighting, wall washing, or adjustable accent lighting. Its state-of-the-art LED technology offers superb, color-consistency within 2 step MacAdam ellipse. The extremely efficient optical system providing 11 beam options, coupled with precision geared aiming provides superior beam control, putting the right amount of light in precisely the right places.
Read More
Read Less
Size 2 IN
Shape Round
Light Source LED - Static
Lumens 800 LM, 1200 LM, 1500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Housing
Compliance Listing BAA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8
Environmental Listing Damp Location, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Fixture Wattage 10, 14.3, 14.7, 16.5, 17.3, 9.9
Voltage Rating 120, MVOLT
Trim Style Adjustable, Angle-Cut, Bevel, Cone, Hyperbolic, Single Wallwash, Lensed, Open, Pinhole
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series AX2

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET AX2 A G2 2ABV.pdf AX2 A Series, 2ABV Adjustable Bevel 4/20/2022 View
    SPEC SHEET AX2 A G2 2AC.pdf AX2 A Series, 2AC Angle-Cut Reflector 4/20/2022 View
    SPEC SHEET AX2 A G2 2APIN.pdf AX2 A Series, 2APIN Adjustable Pinhole 4/20/2022 View
    SPEC SHEET AX2 A G2 2APINLG.pdf AX2 A Series, 2APINLG Adjustable Pinhole, 1 3/4" 4/20/2022 View
    SPEC SHEET AX2 A G2 2WW.pdf AX2 A Series, 2WW Wall Wash 4/20/2022 View
    SPEC SHEET AX2 A G2.pdf AX2 A Series, 2" LED Round New Construction Universal ADJ/DL/WW -Complete Specification Sheet 9/19/2022 View
    SPEC SHEET AX2 D G2 2DBV.pdf AX2 D / AX2 A Series, 2DBV Downlight Bevel 4/20/2022 View
    SPEC SHEET AX2 D G2 2DH.pdf AX2 D / AX2 A Series, 2DH Hyperbolic Downlight 4/20/2022 View
    SPEC SHEET AX2 D G2 2DP.pdf AX2 D / AX2 A Series, 2DP Parabolic Downlight 4/20/2022 View
    SPEC SHEET AX2 D G2 2DPIN.pdf AX2 D / AX2 A Series, 2DPIN Downlight Pinhole 4/20/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility ACLXLED2-DIM.pdf AX2 and AX2SQ Series, Dimmer Compatibility View
    Installation Instructions AX2_FMA2/120_FMA2/150 Flangeless_Adapter AX2 Series Round Flangeless Adapter for Gypsum Ceiling Thickness .75" to 1.50" View
    Installation Instructions P3704.pdf AX2 and AX2SQ Series Flangeless Adapter for Gypsum Ceiling Thickness = .75 View

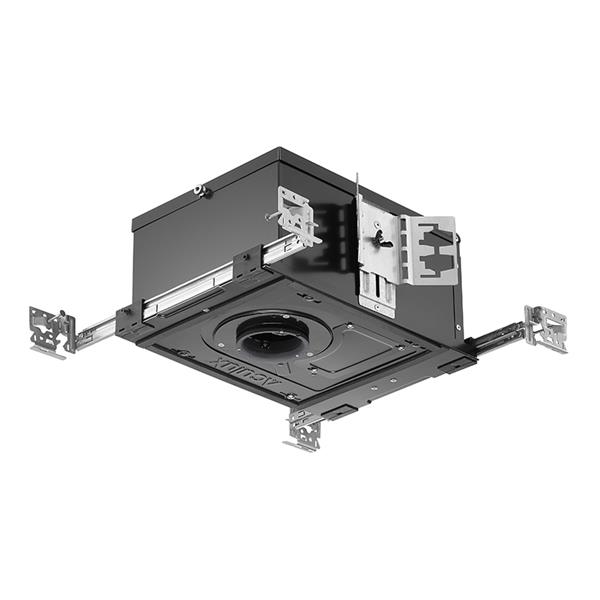

    Installation Instructions P3707.pdf AX2 and AX2SQ Series 2" IC New Construction Housing View

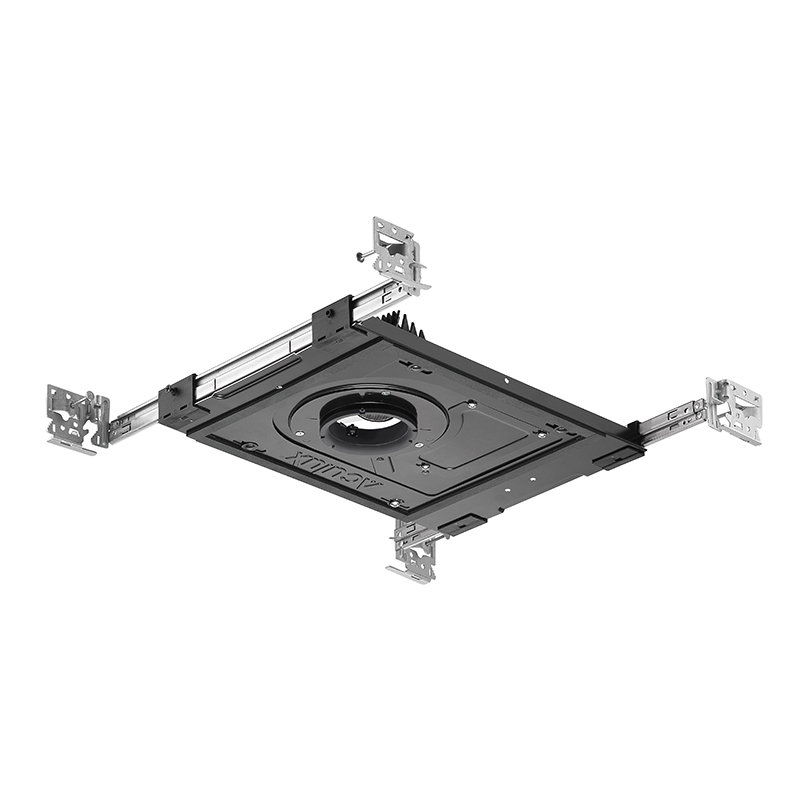

    Installation Instructions P3708.pdf AX2 and AX2SQ Series Non-IC New Construction Housing View
    Installation Instructions P3738.pdf AX2SQ Series Flanged and Flangeless Adapter for Wood, Stone and Tile Ceiling Thickness .75" - 1.50" View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Aculux 2in Precision Recessed LED Brochure Aculux 2 Inch LED Gen 2 Brochure View
