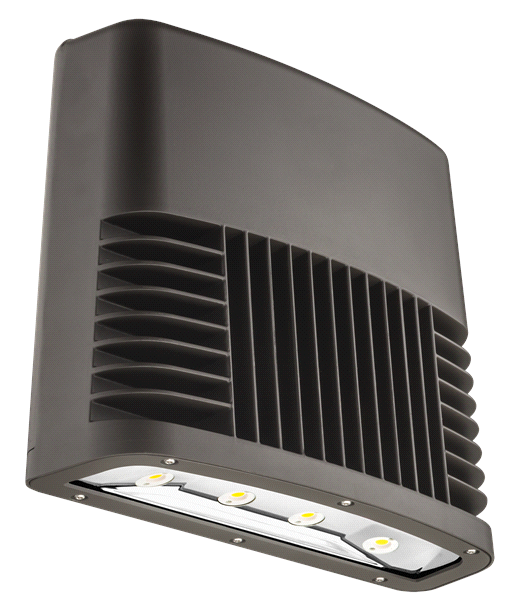

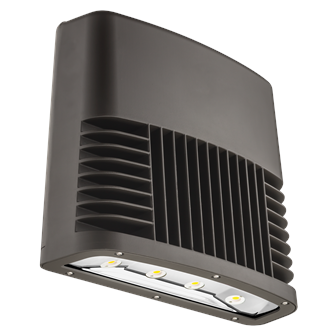

Low Profile LED Wall Pack

As versatile as it is efficient, the OLWX2 is designed to replace up to 400W metal halide while saving over 88% in energy costs. It combines multiple mounting options with the latest generation of LEDs for a wall pack luminaire which is a whole lot more. Whether you are mounting it to a recessed junction box, conduit/through wiring, as an uplight, as a downlight, or as a floodlight - the OLWX2 has you covered.

The versatile design of the OLWX2 LED combines a sleek, low-profile wall pack and high-output LEDs to provide an energy efficient, low maintenance LED wall pack suitable for replacing up to 400W metal halide luminaires. Available floodlight mounting accessories convert the OLWX2 LED into a highly efficient floodlight.

OLWX2 LED is ideal for outdoor applications such as building perimeters, loading areas, driveways and sign and building floodlighting.

Rugged cast-aluminum housing with dark bronze polyester powder paint for lasting durability. Integral heat sinks optimize thermal management through conductive and convective cooling. LED’s are protected behind a glass lens. Housing is sealed against moisture and environmental contaminants (IP65).

High-performance LEDs behind clear glass for maximum light output. Light engines are available in nominal 4000 K and 5000 K configurations. See Lighting Facts label and photometry reports for specific fixture performance.

Light engine consists of four high-efficiency Chip On Board (COB) LED’s with integrated circuit boards mounted directly to housing to maximize heat dissipation and promote long life (L73/100,000 hours at 25°C). Electronic driver has a power factor of >90% and THD <20% and a minimum 2.5kV surge rating. Floodlight mounting accessories include an additional 6kV surge.

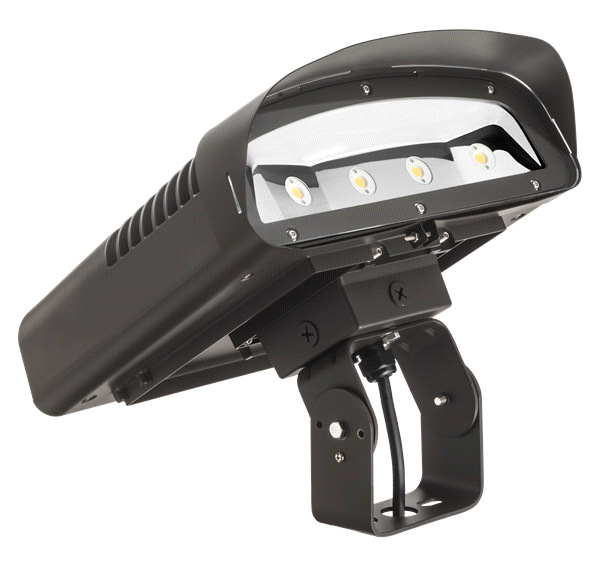

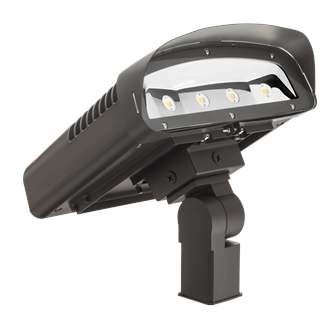

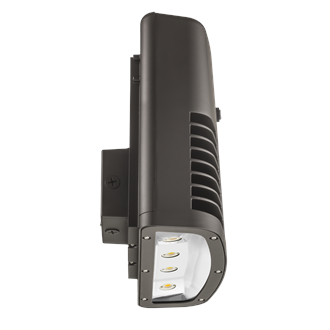

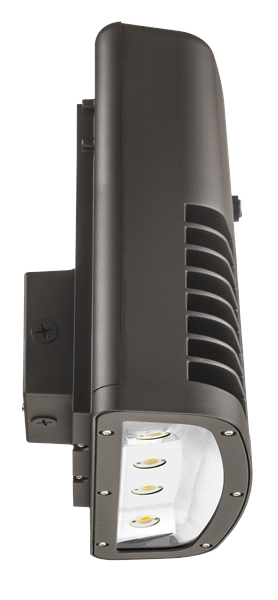

Easily mounts to recessed junction boxes with included wall mount bracket, or for surface mounting and conduit entry with included junction box that has four 1/2” threaded conduit entry hubs. Floodlight mounting accessories (sold separately) include integral slipfitter and yoke mounting options. Each flood mount accessory comes with a top visor and vandal guard. Luminaire may be wall or ground mounted in downward or upward orientation.

UL Listed to U.S. and Canadian safety standards for wet locations. Rated for -40° C minimum ambient. Tested in accordance with IESNA LM-79 and LM-80 standards. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org to confirm which versions are qualified.

Five-year limited warranty. Full warranty terms located at www.AcuityBrands.com/CustomerResources/Terms_and_Conditions.aspx. Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.

Product overview and specifications
Application Type Education, Hospitality, Offices and Banks
Architectural Style Traditional
Brand Name Lithonia Lighting
Color Bronze
Color Rendering Index 70
Correlated Color Temperature 4000 K, 5000 K
Environment Outdoor
Finish Gloss
Lens Material Glass
Light Source LED
Listings cUL, UL
Mounting Type Wall
Product Type Wallpack
Series OLWX2
Shape Rectangular
Spec Sheets
A summary of the performance and other technical characteristics of the product.
File Type Document Type Document Title Description View | Download
SPEC SHEET OLWX2-LED_pdf LED Wall Luminaire View | Download
Technical Files
Installation documents, building information models, etc.
File Type Document Type Document Title Description View | Download
Installation Instruction Sheets OLWX2-Instruction-Sheet_pdf OLWX2 Instruction Sheet View | Download
Download brochures, sell sheets, photometry files and other sales tools.
File Type Document Type Document Title Description View | Download
Other Information OLWX2_Presentation_ppt OLWX2 PPT Presentation View | Download
Brochures OLWX-sell-sheet_pdf OLWX1 and OLWX2 sell sheet View | Download
