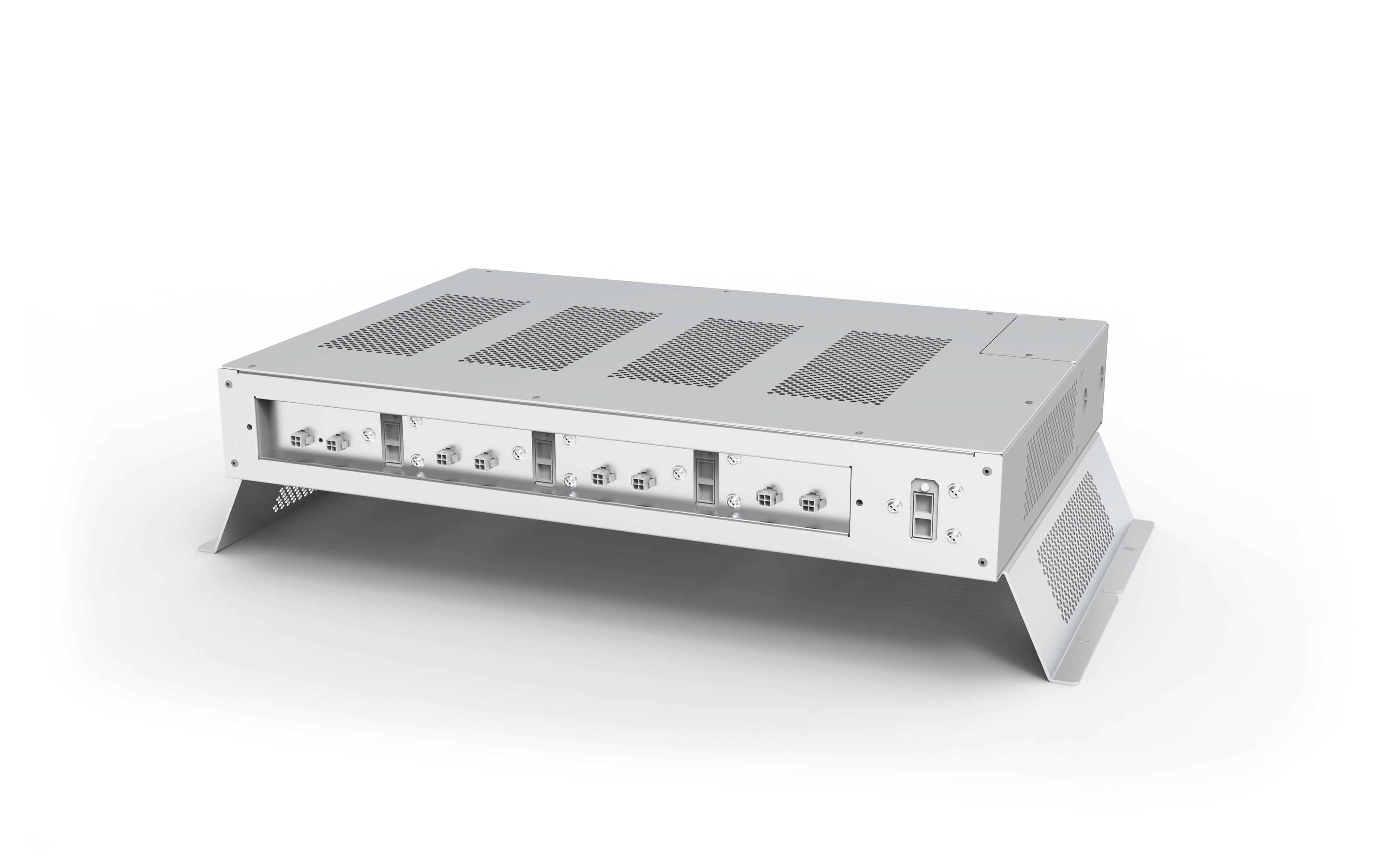

nHUB 4DD 4NIO.123.jpg
nHUB 4DD 4NIO ER.jpg
DC2DC Architecture.PNG

DCHUB

DC Power and Controls Distribution Hub

By Acuity Controls

  • Overview
  • Specifications

The DCHUB is a required component of the DC2DC Architecture.

  • Distributes Class 2 low voltage DC power and nLight Wired controls to DC-powered LED luminaires, including support for emergency lighting
  • Support for up to 1080 VA of DC-powered LED luminaires, with up to 12 outputs
  • Eliminates the need for AC to DC power conversion at each luminaire’s LED driver
  • Eliminates the need for power packs, junction boxes and conduit to luminaires, providing reductions of both materials and related installation hours (requirements may vary according to local code)
  • Multiple mounting options available

Read More
Read Less
Control Device Type Interface Device
Sending Protocol nLight Wired
Min. Operating Temp. 5
Max. Operating Temp. 30, 40
Voltage Rating 120, 208, 240, 277, DC2DC 57VDC
Regulatory Listing CSAus

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET DCHUB-DC Power Distribution Hub.pdf Acuity Controls DCHUB Spec Sheet 4/6/2023 View
