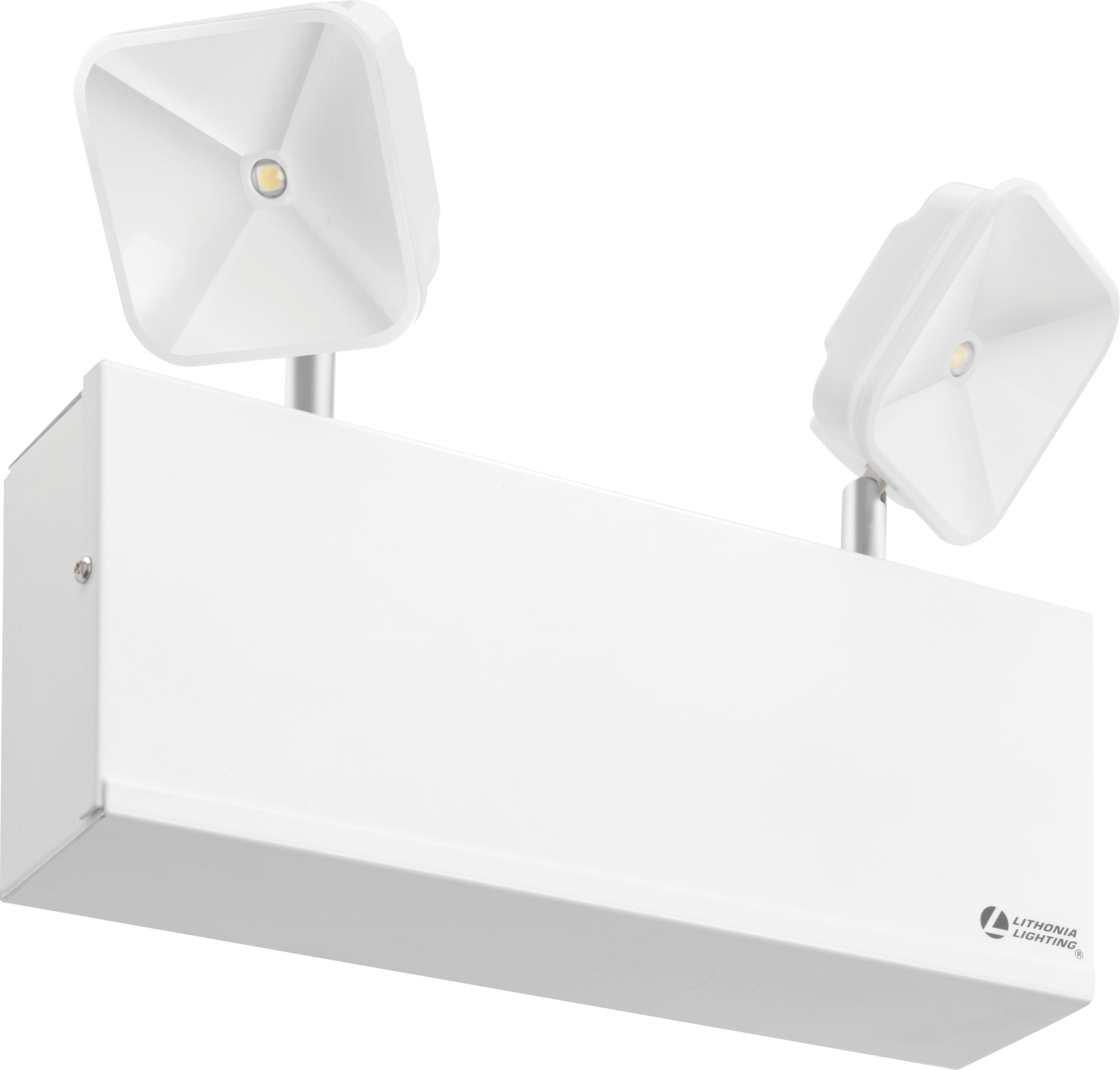

TCU Emergency Lighting Unit

Lithonia Lighting® Steel Emergency Light

By Lithonia Lighting

    CA Title 20
  • Overview
  • Specifications
The TCU Commercial Steel Light provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet and exceed code required emergency lighting. Ideal for applications where steel housing emergency lighting is required.
  • Housing is die-formed steel, finished with corrosion-resistant instrument enamel
  • Chicago compliant fixtures meets city of Chicago requirements
  • Listed and labeled to comply with Canadian Standards C22.2 No. 141-10
  • UVOLT 120-347v
  • Titan® Series units will power a variety of remote devices up to rated wattage of unit
  • 5 Year Limited Warranty
Read More
Read Less
Light Source LED - Static
Lumens 350 LM, 750 LM
CCT / LED Color 6500 K
CRI 80
Product Type Emergency Lighting Unit
Compliance Listing CA Title 20, Chicago Life Safety, FCC 47CFR Part 15 Consumer
Environmental Listing Damp Location
Regulatory Listing CSA, NFPA 101, NFPA 70, UL
Fixture Wattage 5
Voltage Rating 120-347
Color White
Mounting Type Surface
Series TCU

Read More Read Less

  • Suggested Replacement Products


  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Lithonia Lighting-Titan Commercial Emergency Unit-TCU-Emergency Lighting Unit.pdf Titan® Steel Commercial Unit, TCU 6/21/2023 View

    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions TCU_INSTALLATION_INSTRUCTIONS_912-00328-001_RevA.pdf TCU Installation Instruction sheet (Rev A) 8/31/2022 View
    Material Safety Data Sheet Nickel_Metal_Hydride_Battery_Corun_SDS_NA2015.pdf Safety Data Sheet for Nickel Metal Hydride batteries 4/6/2023 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Canadian Emergency 1 Paper (0323) Canadian Emergency 1 Paper Updated March 2023 3/15/2023 View
    Brochures LL_1319305.09_Steel Series Canadian Brochure_0323.pdf Steel Series Canadian Brochure 4/3/2023 View
    Brochures Titan Steel Series Brochure (2023).pdf Titan Steel Series Brochure 2/9/2023 View
    Product Presentation TCUProduct PPT.pptx TCU Product PowerPoint 9/1/2022
    Sell Sheet LL_1157952.02_TCU Sell Sheet_0822_web.pdf TCU Sell Sheet 9/1/2022 View
