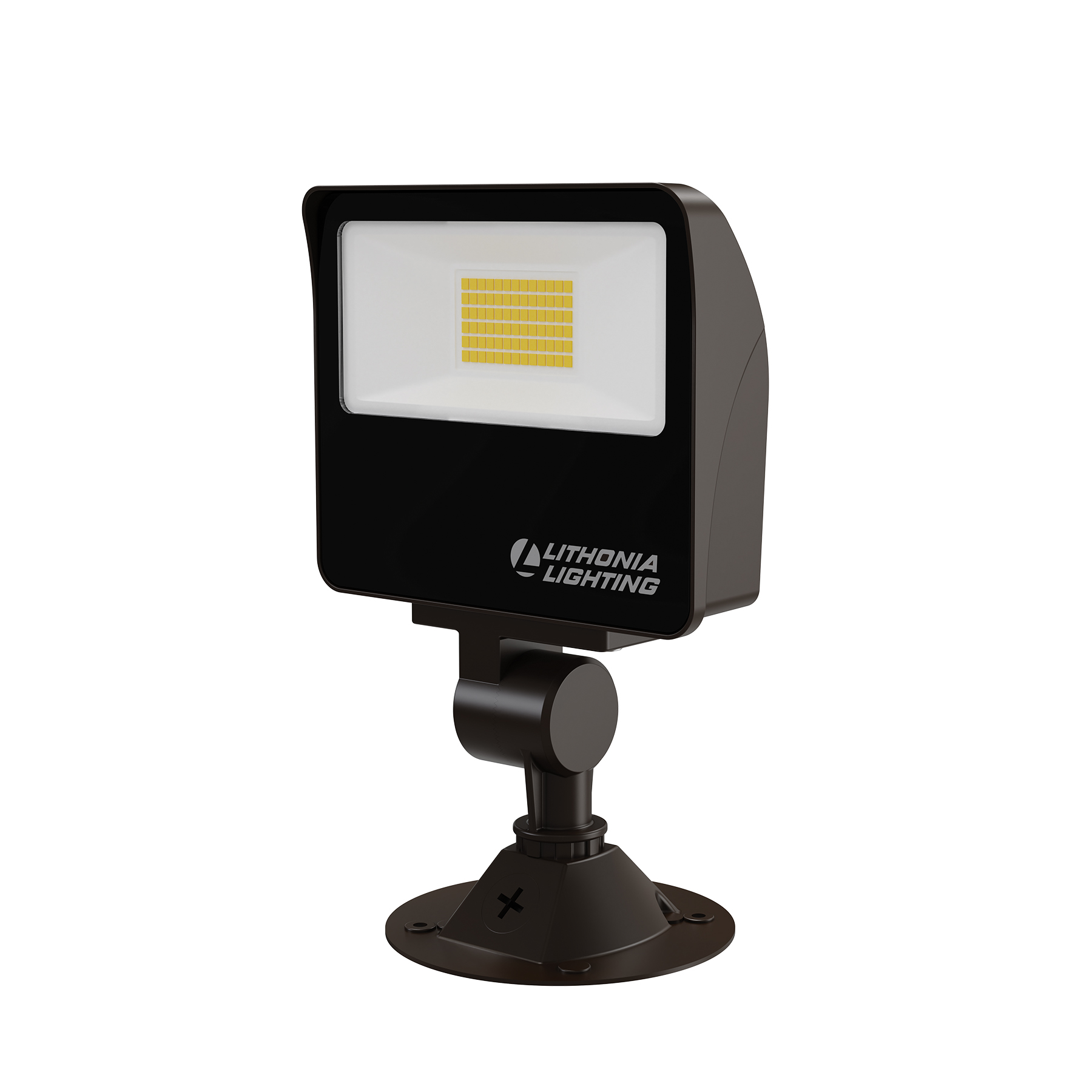

ESXF 2 knuckle.gif

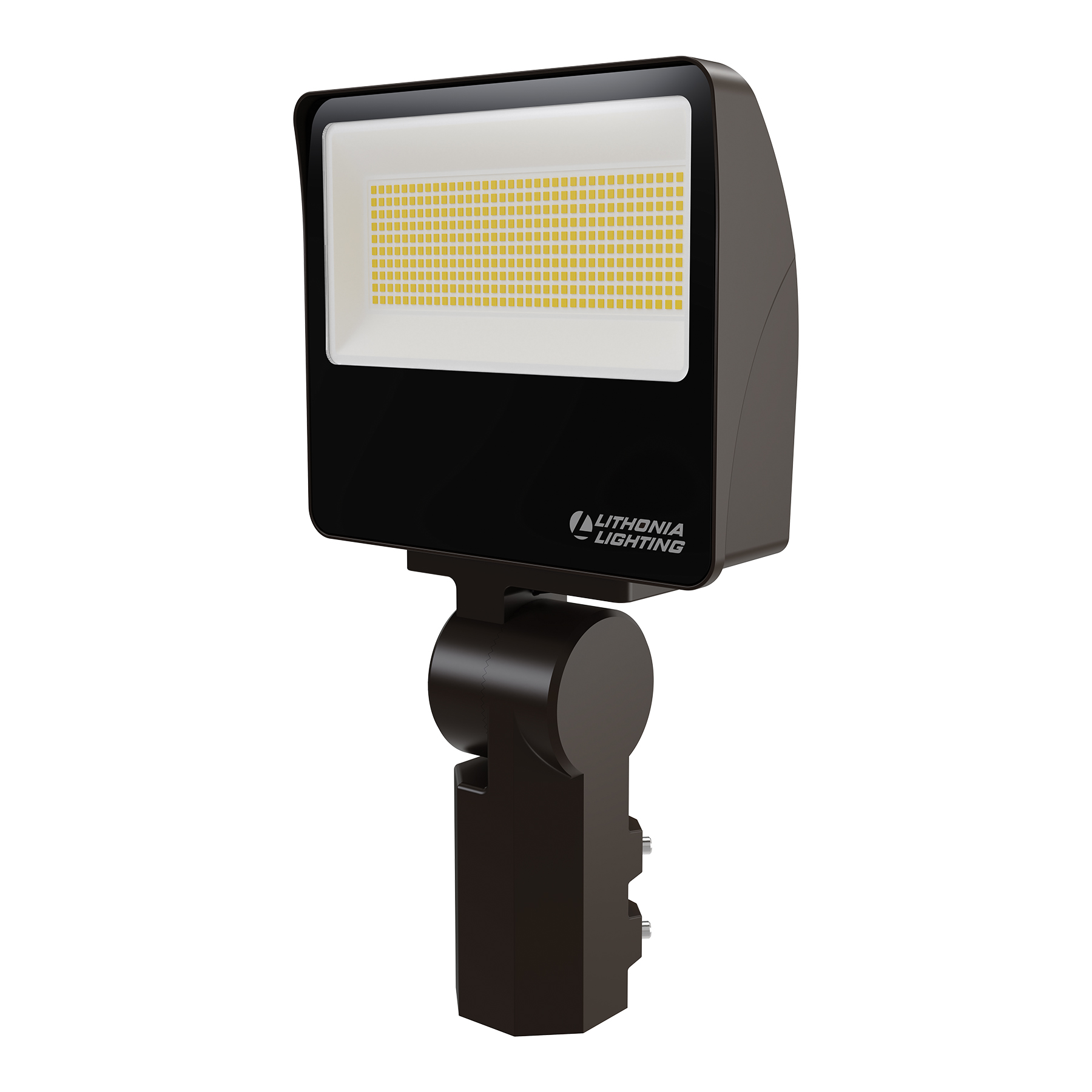

ESXF 3 Slip Fitter.gif
ESXF Feature & Benefit Video
ESXF Mounting Types Graphic.jpg

Contractor Select ESXF LED Floodlight

Most popular and readily available ESXF LED floodlight configurations for your everyday lighting needs

By Lithonia Lighting

    DLC PremiumSwitchable CCTs
  • Overview
  • Specifications
The Lithonia Lighting® ESXF LED floodlight is a general-purpose flood that offers a wide selection of options and flexibility.

The ESXF is an all-in-one flood that gives ultimate versatility by offering 36 configurations in one product while delivering on superior illumination and offers easy access to controls for color switching, lumen switching and selectable photocell. Available in four sizes, ESXF comes with the two most common mountings already included in the box, making on-the-spot reconfiguring quick and easy. No more go-backs!

The ESXF family has four sizes with lumen packages ranging from 1,500 to 20,000 lumens and are designed to replace 150W to 500W Quartz or 75W to 400W HID floodlights. Suitable for both professionals and DIYers, these floodlights offer a wide flood distribution (7x7) and DLC Premium performance, making it a one-stop-shop for all floodlighting needs.
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Dynamic Feature Switchable White
Lumens 1500 LM, 2500 LM, 3000 LM, 3500 LM, 5000 LM, 5500 LM, 7000 LM, 7500 LM, 8000 LM, 8500 LM, 10,000 LM, 10,500 LM, 13,600 LM, 14,000 LM, 14,500 LM, 15,500 LM, 16,000 LM, 16,500 LM, 17,000 LM, 18,000 LM, 19,000 LM, 19,500 LM, 20,000 LM, 20,500 LM
CCT / LED Color Variable
CRI 80
Product Type Floodlight
Compliance Listing DLC Premium
Environmental Listing IP66, Wet Location
Regulatory Listing C-UL-US
Dimming Protocol 0-10V
Fixture Wattage 100, 150, 17, 34, 56
Voltage Rating 120-277, 347-480
Color Bronze
Mounting Type Knuckle, Tenon Slipfitter, Yoke
Series ESXF4, ESXF3, ESXF2, ESXF1

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET CONTRACTOR SELECT ESXF LED.pdf Most popular and readily available ESXF LED floodlight configurations for your everyday lighting 6/15/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ESXF1-2 Instruction Sheet.pdf ESXF instruction sheet 5/12/2022 View
    Installation Instructions ESXF3-4 Instruction Sheet.pdf ESXF instruction sheet 5/12/2022 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures ESXF Brochure_0622.pdf ESXF LED Floodlight Brochure 6/20/2022 View
    Brochures ESXF Crossover Reference.pdf ESXF LED Crossover Reference Sheet 6/8/2022 View
    Brochures LL Outdoor Lighting Discretionary Stock Solutions LL Outdoor Lighting Discretionary Stock Solutions Brochure 12/19/2022 View
    Brochures Outdoor HID Crossover Guide LL Outdoor HID Crossover Guide 5/4/2023 View
    Product Presentation ESXF LED Floodlight Family - Customer Presentation.pdf ESXF LED Floodlight Family - Customer Presentation 6/2/2022 View
    Sell Sheet ESXF Sell Sheet ESXF LED Family Sell Sheet 4/14/2022 View
