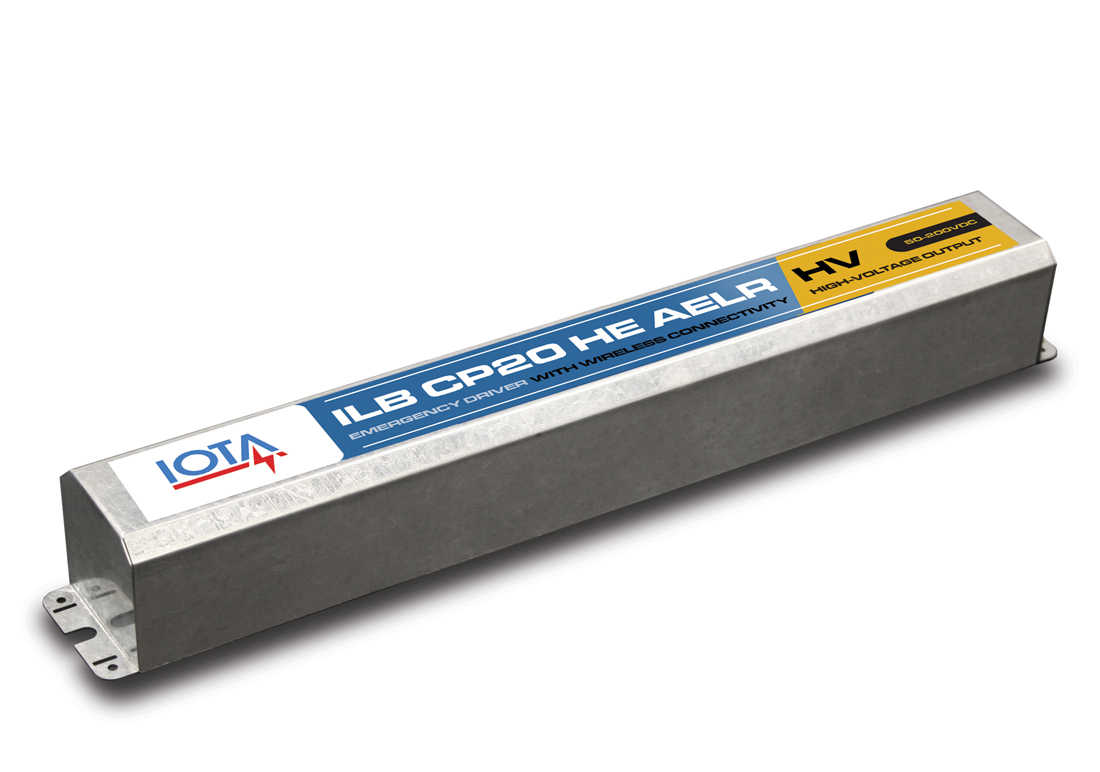

Product Image
Dimensions - ILB CP20 - Length: 17.75in, Width: 2.5in, Height: 2.375in, Mounting Center: 17.2in

ILB CP20 HE AELR HV Emergency Driver

20 Watt Emergency LED Driver with Wireless Life Safety Reporting via Bluetooth

By IOTA

    CA Title 20
  • Overview
  • Specifications
The ILB CP20 HE AELR HV Emergency LED Driver combines confident performance with the convenience of mobile access for meeting your code compliance requirements. Featuring Bluetooth® technology, the ILB CP20 HE AELR HV allows users to wirelessly connect and view emergency driver self-testing records using a mobile device.

The ILB CP20 HE AELR HV is compatible with the STAR (Self-Testing Automated Reporting) tool in the CLAIRITY™+ app (available for free on iOS and Android devices). Connect your ILB CP20 HE AELR HV to view, export, and/or e-mail your required monthly and annual test reports. Using the STAR app with the ILB CP20 HE AELR HV brings a new level of convenience to your emergency egress maintenance.
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 20-60 VDC, 50-200 VDC
Output Power 20 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Self Diagnostics, Self Test, STAR Enabled
Regulatory Listing cUL, NFPA 101
Compliance Listing CA Title 20, ROHS
Environmental Listing Damp Location
Series ILB

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Copy and Paste Spec - ILB CP20 HE AELR HV Copy and paste spec Word Doc for IOTA's CP20 HV emergency driver with wireless connectivity. 2/14/2022
    SPEC SHEET Spec Sheet - ILB CP20 HE AELR HV IOTA ILB CP20 HE AELR HV Specifications 4/21/2023 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model ILB CP20 HE AELR HV A QDKIT.zip STEP File - ILB CP20 HE AELR HV A QDKIT 2/11/2022
    Installation Instructions Insert - QDKIT Models Junction Box Installation Instructions for QDKIT Models 2/10/2022 View
    Installation Instructions Manual - ILB CP20 HE AELR HV A Installation Manual for ILB CP20 HE AELR HV A Models 6/1/2022 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Wiring Diagram Diagram - ILB CP HE AELR (PDF) Standard Wiring Without Bluetooth Radio 2/10/2022
    Wiring Diagram Diagram - ILB CP HE AELR (DWG) Standard Wiring Without Bluetooth Radio 2/10/2022 View
    Wiring Diagram Diagram - ILB CP HE AELR QDKIT (DWG) Standard Wiring for QDKIT Models with Junction Box and Bluetooth Module 2/10/2022
    Wiring Diagram Diagram - ILB CP HE AELR QDKIT (PDF) Standard Wiring for QDKIT Models with Junction Box and Bluetooth Module 2/10/2022 View
