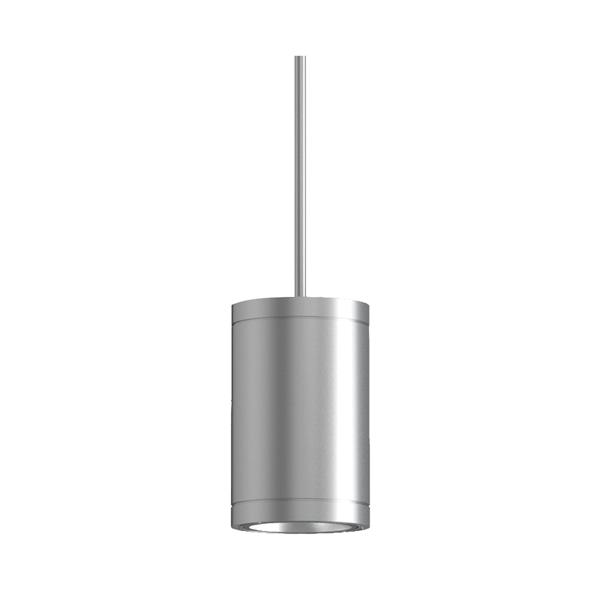

EVO® 2" Round Pendant Mount Cylinder

General Illumination LED Downlight, Wall Wash, & Adjustable Cylinder

By Gotham Lighting

    Buy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
OPTICS
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45-50°
  • Functions: Downlight, open wall wash, corner wall wash, double wall wash, lensed wall wash, and adjustable solutions
  • Beam angles: Narrow, medium wide, wide
  • Trim options: Cone and hyperbolic
PERFORMANCE
Our high-performing cylinders provide the quality of light and consistency needed to efficiently create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-2,000 LM
  • Listings: Energy Star, CSA, Damp Location, Wet Location
  • Driver capabilities: UGZ driver option for Universal dimming to 1% (0-10V, 120V TRIAC or ELV)
  • Controls: nLight® wired and wireless lighting controls
DESIGN
For wherever you specify cylinders, we offer an ample array of mounting types, trims, sizes, and colors allowing for a complete custom design.
  • Colors: 20 standard colors and full breath of RAL custom colors
  • Mounting: Stem suspension is suitable for indoor or outdoor applications and easy to modify with conduit entries at a diameter of ¼ inch
  • Mounting: Cord suspension provides a tight and straight suspension, with a cord significantly smaller than most, and designed with no aircraft cable
  • Mounting: Adjustable pendant mount tilts up to 90° with 365° head rotation
Read More
Read Less
Aperture Size 2 IN
Shape Round
Light Source LED - Static
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Cylinder
Compliance Listing BAA, Low UGR
Environmental Listing Damp Location, IC, Wet Location
Regulatory Listing UL
Dimming Protocol 0-10V, Reverse Phase
Voltage Rating 120, 120-277, 277
Trim Style Double Wallwash, Hyperbolic, Lensed, Open, Single Wallwash, Cone, Corner Wallwash
Color Almond, Black, Blue, Bronze, Clear, Gold, Gray, Green, Ivory, Pewter, Red, Silver, Wheat, White
Mounting Type Pendant
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Function Adjustable, Downlight, Wall Wash
Product Series EVO
Series EVO2PCHYP, EVO2CCHYP, EVO2PC, EVO2CC, EVO2PCWW, EVO2PCLW, EVO2PCDWW, EVO2PCCWW, EVO2PTRC, EVO2PTRCHYP

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO2CC.pdf EVO 2" Open Cord Mount Cylinder 9/5/2022 View
    SPEC SHEET EVO2CCHYP.pdf EVO 2" Hyperbolic Cord Mount Cylinder 9/5/2022 View
    SPEC SHEET EVO2PC.pdf EVO 2" Open Stem Mount Cylinder 9/5/2022 View
    SPEC SHEET EVO2PCHYP.pdf EVO 2" Hyperbolic Stem Mount Cylinder 9/5/2022 View
    SPEC SHEET EVO2PCLW.pdf EVO 2" Lensed Wall Wash Stem Mount Cylinder 9/5/2022 View
    SPEC SHEET EVO2PCWW.pdf EVO 2"Open, Corner & Double Wall Wash Stem Mount Cylinder 9/5/2022 View
    SPEC SHEET EVO2PTRC.pdf EVO 2" Open Adjustable Stem Mount Cylinder 4/20/2022 View
    SPEC SHEET EVO2PTRCHYP.pdf EVO 2" Hyperbolic Adjustable Stem Mount Cylinder 4/20/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ52164 2" Optics.pdf EVO & ICO 2" Optic Installation/Replacement Instructions 8/9/2022 View
    Installation Instructions CJ52319 Rev A.pdf EVO/ICO 2" Adjustable Stem Mount Cylinder - English/French 8/9/2022 View
    Installation Instructions CJ52319-NOM Rev A.pdf EVO/ICO 2" Adjustable Stem Mount Cylinder - English/Spanish 8/9/2022 View
    Installation Instructions EVO2 & ICO2 CC JBXCC Installation Instructions 912-00222-002.pdf EVO/ICO 2" Cord Mount Cylinder with Surface J-Box and Conduit Cover - English/French 8/9/2022 View
    Installation Instructions EVO2 & ICO2 CC JBXCC Installation Instructions 912-00222-002_NOM.pdf EVO/ICO 2" Cord Mount Cylinder with Surface J-Box and Conduit Cover - English/Spanish 8/9/2022 View
    Installation Instructions EVO2 & ICO2 Cord Mount Cyl Installation Instructions CJ52314.pdf EVO/ICO 2" Cord Mount Cylinder- English/French 8/9/2022 View
    Installation Instructions EVO2 & ICO2 Cord Mount Cyl Installation Instructions CJ52314-NOM.pdf EVO/ICO 2" Cord Mount Cylinder - English/Spanish 8/9/2022 View
    Installation Instructions EVO2 & ICO2 PC JBXCC Installation Instructions 912-00222-001.pdf EVO/ICO 2" Stem Mount Cylinder with Surface J-Box and Conduit Cover - English/French 8/9/2022 View
    Installation Instructions EVO2 & ICO2 PC JBXCC Installation Instructions 912-00222-001_NOM.pdf EVO/ICO 2" Stem Mount Cylinder with Surface J-Box and Conduit Cover -English/Spanish 8/9/2022 View
    Installation Instructions EVO2 & ICO2 Pendant Mount Cyl Installation Instructions CJ52313.pdf EVO/ICO 2" Stem Mount Cylinder- English/French 8/9/2022 View
    Installation Instructions EVO2 & ICO2 Pendant Mount Cyl Installation Instructions CJ52313-NOM.pdf EVO/ICO 2" Stem Mount Cylinder - English/Spanish 8/9/2022 View
    Installation Instructions EVO2 & ICO2 SGBCC Installation Instructions 912-00223-001.pdf EVO/ICO 2" Cylinder with Surface Gear Box and Conduit - English/French 8/9/2022 View
    Installation Instructions EVO2 & ICO2 SGBCC Installation Instructions 912-00223-001_NOM.pdf EVO/ICO 2" Cylinder with Surface Gear Box and Conduit - English/Spanish 8/9/2022 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Gotham Cylinder Brochure_0421 EVO & Incito Cylinder Portfolio Brochure 9/25/2023 View
    Sell Sheet 2in Tilt and Rotate Cylinder_Sell Sheet.pdf EVO/Incito 2in Tilt and Rotate Cylinder Sell Sheet 1/11/2021 View
