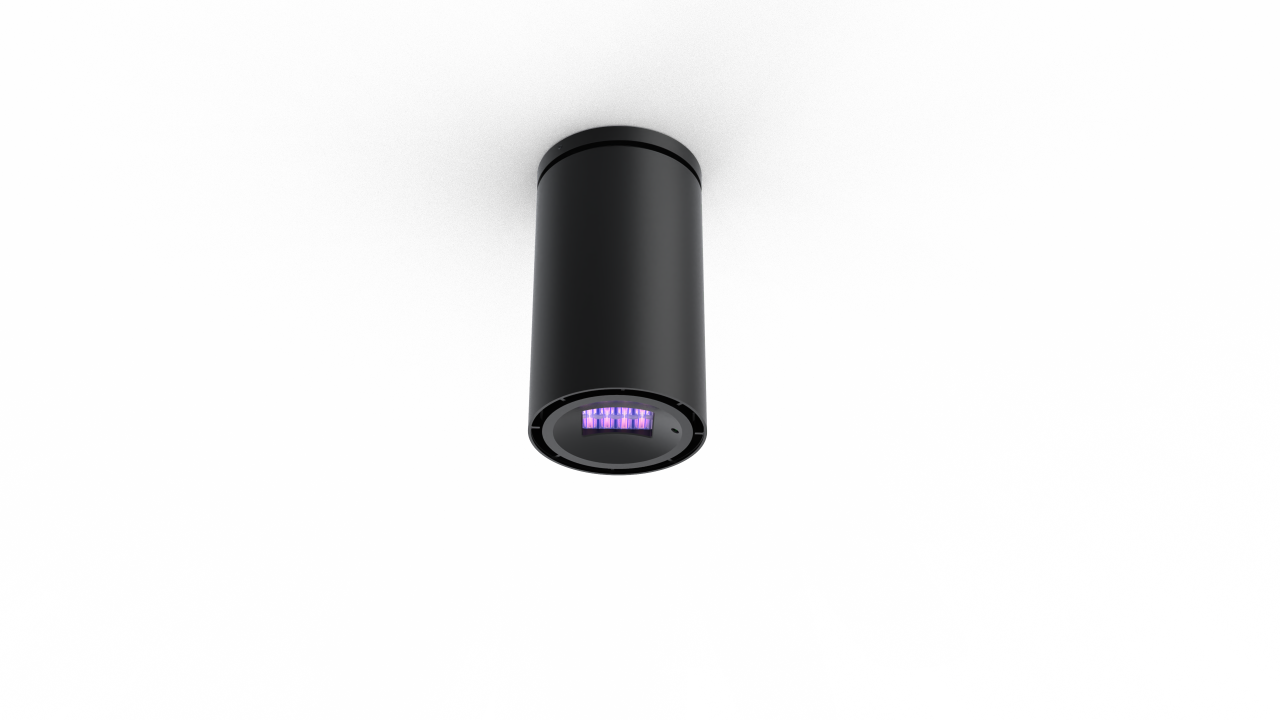

Black tall surface.png

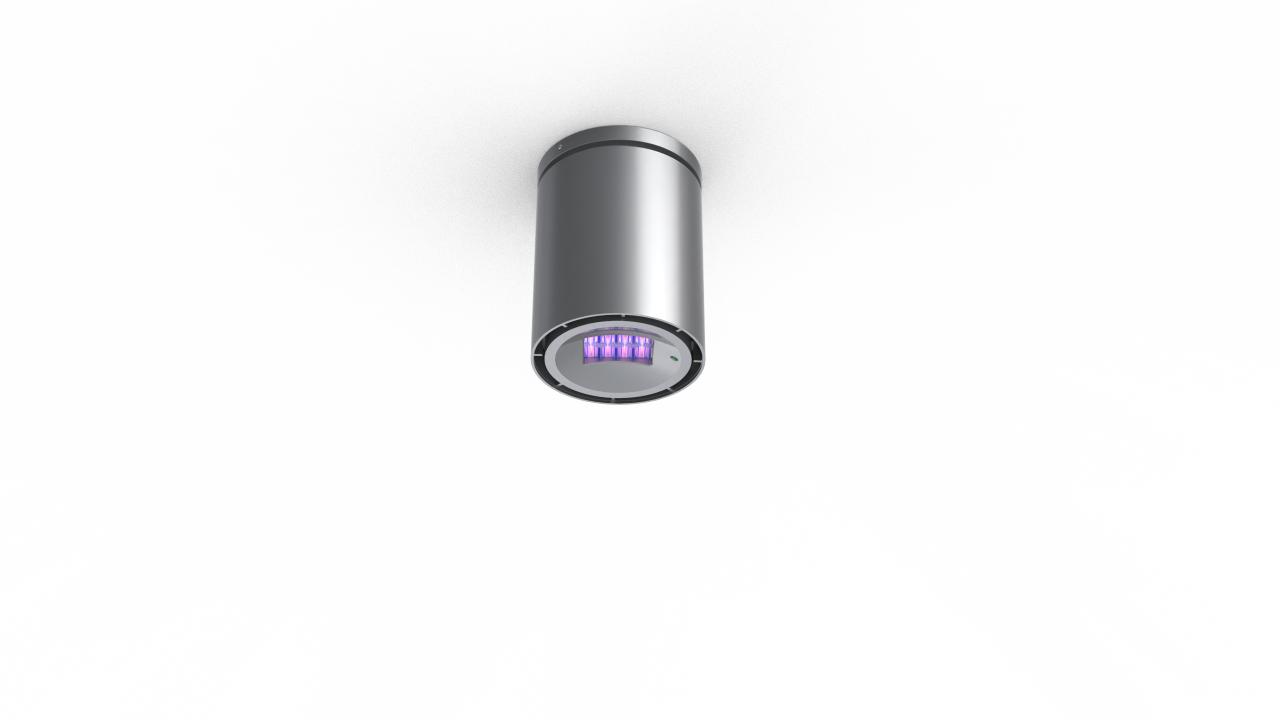

Silver short surface.png

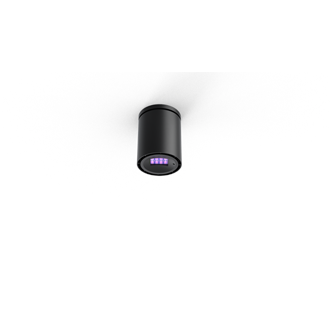

Black short surface.png
Silver tall surface.png

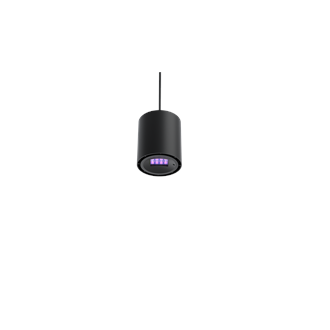

Black short pendant.png
Silver short pendant.png
Silver tall pendant.png
Black tall pendant.png
Black_White Group Surface.png
Silver_Black Group Surface.png
Black_White Group Pendant.png
Black_Silver Group Pendant.png
Use for Cover.jpg

HDM Cylinder

4 in. Disinfection Surface or Pendant with Care222 Technology

By Healthcare Lighting

    UV SpectrumBuy America(n) Option Available
  • Overview
  • Specifications
HDM™ reduces active pathogens* on non-porous surfaces using Ushio Care222® far-UVC disinfection** technology. HDM features a mercury-free far-UVC excimer lamp that contains a patented short pass filter for narrow band 222nm emission. This removes wavelengths that penetrate the living tissue in skin or beyond the tear layer in eyes***.

HDM pendant and surface are available in cable suspension and single stem mounts, each with 5 inch and 9 inch body heights. Canopy options include recessed or surface J-box mount, and surface J-box mount with a conduit cover. Available in black, bronze, silver and white finishes. Discreet form factor seamlessly integrates into spaces and is ideal for bathrooms, counter tops and other continual-use areas. UV source emits a soft violet glow from a 1.75" x 2.25" opening when powered. LED status indicator visible from room. UV module serviceable from below.

* Refer to product specification sheets at acuitybrands.com/UV-Products for efficacy claims and claim substantiation regarding specific products and pathogens
**All references to “disinfection” are referring generally to the reduction of pathogenic bioburden and are not intended to refer to any specific definition of the term as may be used for other purposes by the U.S. Food and Drug Administration or the U.S. Environmental Protection Agency. Reduction of the pathogenic bioburden is a function of fixture run time and the distance to the UV light source, airflow, room size, shadow areas and/or other factors, and the level of reduction will vary within a specific space. This fixture is not intended for use in the cure, mitigation or prevention of disease and is not certified or approved for use as a medical device by the FDA. It is the obligation of the end-user to consult with a qualified Professional Engineer and a Certified Industrial Hygienist, if applicable, to determine whether this fixture meets the applicable requirements for system performance, code compliance, safety (including safety and hazard alerting signs), suitability and effectiveness for use in a particular application design.
*** According to the International Ultraviolet Association
Read More
Read Less
Size 6 IN, 9 IN
Light Source UV
UV Spectrum 222nm
Product Type Pendant
Compliance Listing BAA
Environmental Listing Damp Location
Regulatory Listing C-UL-US
Fixture Wattage 16
Voltage Rating 120-277
Mounting Type Pendant, Surface, Suspended
Series HDMPS, HDMC, HDMPC

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HDMC.pdf HDMC Surface Mount w Care222® Technology 2/23/2023 View
    SPEC SHEET HDMPC.pdf HDMPC Pendant and Cord w Care222® Technology 2/23/2023 View
    SPEC SHEET HDMPS.pdf HDMPS Pendant and Stem w Care222® Technology 2/23/2023 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ABL Healthcare HDMC Installation Instructions.pdf HDMC Surface Mount w/ Care222® Technology 3/17/2023 View
    Installation Instructions ABL Healthcare HDMPC Installation Instructions.pdf HDMPC Pendant and Cord w/ Care222® Technology 3/17/2023 View
    Installation Instructions ABL Healthcare HDMPS Installation Instructions.pdf HDMPS Pendant and Stem w/ Care222® Technology 3/17/2023 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions ABL Healthcare RK1HDM Series Replacement Module Installation Instructions.pdf RK1HDM Series Module Installation 3/17/2023 View
    Replacement Part Spec Sheet HDMC Replacement Parts_Module_Adapter_Canopies.pdf HDMC Replacement Parts 12/16/2021 View
    Replacement Part Spec Sheet HDMPC Replacement Parts_Module_Swivel_Adapter_Canopies.pdf HDMPC Pendant and Cord Replacement Parts 12/16/2021 View
    Replacement Part Spec Sheet HDMPS Replacement Parts_Module_Swivel_Adapter_Canopies.pdf HDMPS Pendant and Stem Replacement Parts 12/16/2021 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures HDM Brochure HDM Brochure 6/22/2021 View
