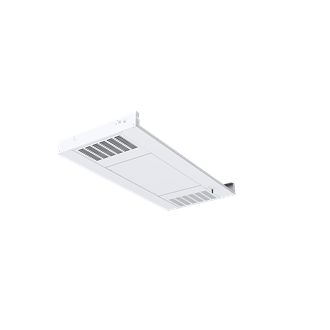

Product Image

EvolAIR UV

EvolAIR UV powered by UV Angel Clean Air Technology

By Healthcare Lighting

    UV SpectrumBuy America(n) Option Available
  • Overview
  • Specifications
EvolAIR UV™ delivers a modern approach to UV germicidal* air room treatment. Engineered with advanced UV-C based pathogen control technology powered by UV Angel Clean Air™. EvolAIR UV continuously circulates pathogen-contaminated air through a sealed chamber, treated with high-intensity UV-C light to inactivate bacteria, fungus, and viruses**, and is then returned to room. Sealed UV air treatment chamber is integrated into a 2' x 4' troffer, allowing for use in occupied spaces. Available for drop-in grid ceiling, recessed hard ceiling, surface mount or suspended installations. Discreet down-facing status indicator light for easy sight verification of operation or maintenance.

* Refer to product specification sheets at acuitybrands.com/UV-Products for efficacy claims and claim substantiation regarding specific products and pathogens
**All references to “disinfection” are referring generally to the reduction of pathogenic bioburden and are not intended to refer to any specific definition of the term as may be used for other purposes by the U.S. Food and Drug Administration or the U.S. Environmental Protection Agency. Reduction of the pathogenic bioburden is a function of fixture run time and the distance to the UV light source, airflow, room size, shadow areas and/or other factors, and the level of reduction will vary within a specific space. This fixture is not intended for use in the cure, mitigation or prevention of disease and is not certified or approved for use as a medical device by the FDA. It is the obligation of the end-user to consult with a qualified Professional Engineer and a Certified Industrial Hygienist, if applicable, to determine whether this fixture meets the applicable requirements for system performance, code compliance, safety (including safety and hazard alerting signs), suitability and effectiveness for use in a particular application design. In no event will Acuity Brands Lighting be responsible for any loss resulting from any use of this fixture in an application design.
Read More
Read Less
Size 2x4
Light Source LED - Static, UV
UV Spectrum 254nm
Lumens 5800 LM, 5900 LM, 6400 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Troffer
Compliance Listing BAA
Environmental Listing Dry Location
Regulatory Listing ETL
Fixture Wattage 115, 173
Voltage Rating 120-277
Mounting Type Recessed, Surface, Suspended
Series HFLV

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HFLV NDN.pdf HFLV UV Air Disinfection No Downlight 1/12/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ABL Healthcare HFLV Operation Manual EvolAIR UV HFLV Angel Clean Air Technology 1/28/2022 View
    Installation Instructions ABL_HFLCK Suspension Cable Kit_Installation Instructions.pdf EvolAIR UV HFLV HFLCK Suspension Kit 6/2/2021 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions ABL Healthcare RK8HFLV Replacement Instructions.pdf ABL Healthcare RK8HFLV Replacement Part Instructions 1/12/2022 View
    Replacement Part Spec Sheet RK8HFLV Replacement Parts.pdf HFLV Replacement Lamp, Filter, or Both 12/16/2021 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures EvolAIR UV Brochure EvolAIR UV Brochure 1/12/2022 View
