Design Select (15 days or less)

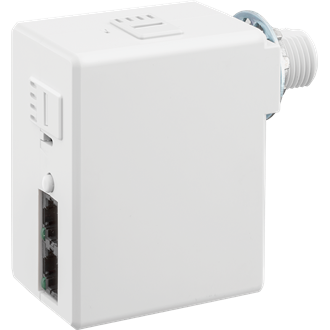

Product Image
nPP16 D EFP_011.png

nPP16 Family

Power Relay Pack

By nLight

    DLC StandardCA Title 24/JA8Buy America(n) Option Available
  • Overview
  • Specifications
The nLight nPP16 Series power pack is the workhorse of an nLight system. Each unit has two important responsibilities: providing system power and switching lighting loads. To provide system power, the power pack transforms Class 1 line voltage (120/277 VAC or 347 VAC) to Class 2 15 VDC. For switching a lighting load, an internal 16A latching relay is used.

The power packs two RJ 45 connectors make control wiring with standard CAT-5 cabling easy and clean. For simplifying installation, power packs have an elongated chase nipple that allows them to be attached either directly through a 1/2" knockout into a junction box, or inside an adjacent box for meeting specific local code requirements in ceiling plenums.
Communicates w/ nLight Network
Remotely Configurable/Upgradeable
Push-Button Programmable
Configurable Relay Logic
Provides System Power
Self-Contained Relay Switches Line Voltage Load
Plenum Rated
Green LED Indicator
Extended Chase Nipple
Read More
Read Less
A+ Capable Yes
Control Device Type Dimming Switch
Mounting Type Unit to J Box
Networkable Control Networkable Control
Control Protocol 0-10V
Product Type Power Pack
Color White
Finish Gloss
Voltage 120, 347
Compliance Listing BAA, CA Title 24, DLC Standard
Regulatory Listing C-UL-US, UL
Series NPP16
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET NPP16 EFP.pdf nLight nPP16 Power/Relay Pack Spec Sheet 5/8/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD npp16derpalt.dwg npp16derpalt.dwg
    Installation Instructions IN-10.3 - 09-06-17.pdf nLight Power Pack Programming Instructions View
    Installation Instructions nPP16 Installation Instructions nLight nPP16 Installation Instruction Sheets 2/14/2023 View
    Riser Model npp16lt riser.dwg
    Technical Bulletins nLight BAA Flyer.pdf nLight Buy America(n) Act Flyer 4/6/2022 View
