EXRG and ECRG Red / Green Switchable Instructional

Contractor Select ECRG Emergency Combo Unit

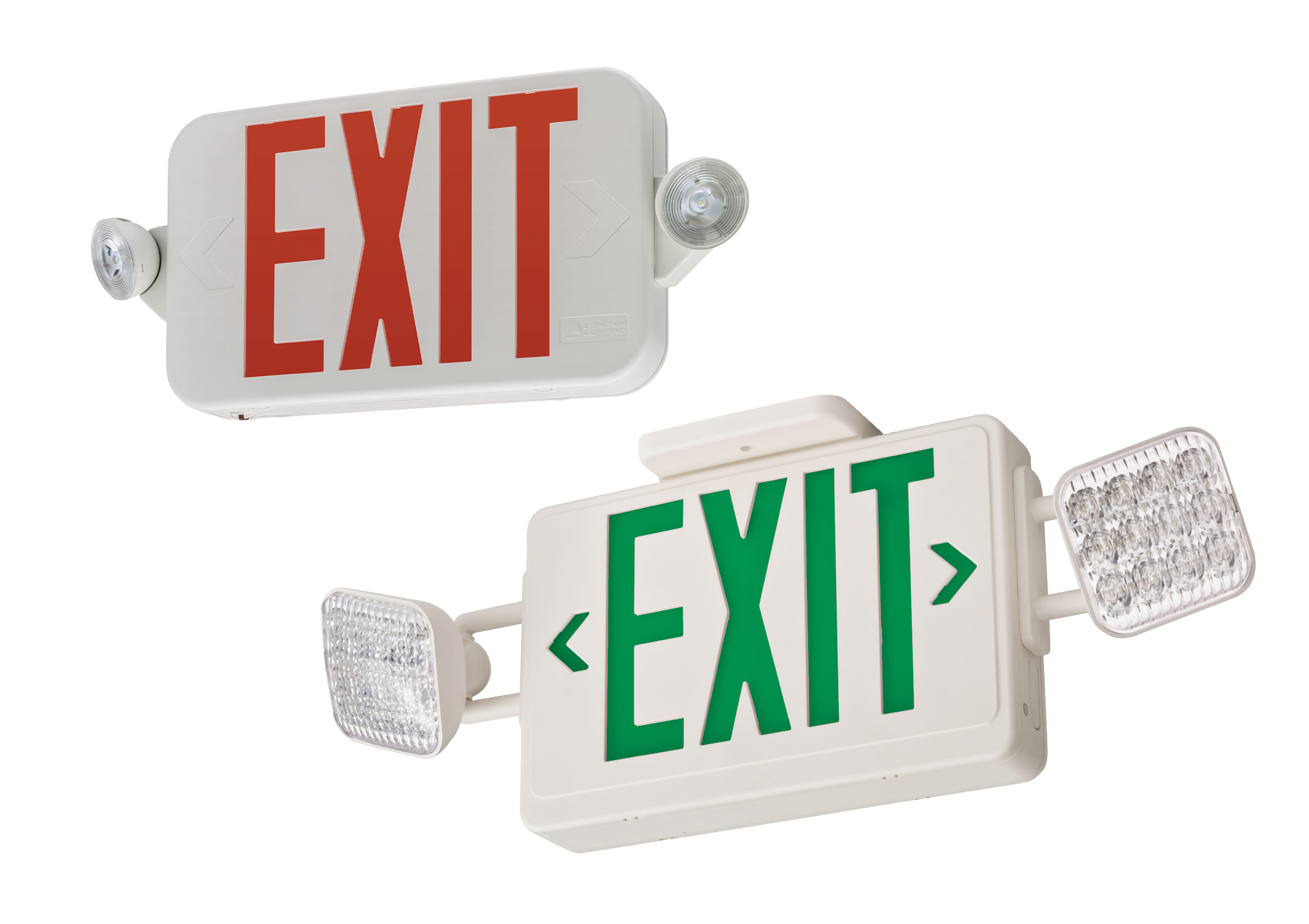

Lithonia Lighting® Emergency LED Exit Combo Unit

By Lithonia Lighting

    CA Title 20
  • Overview
  • Specifications

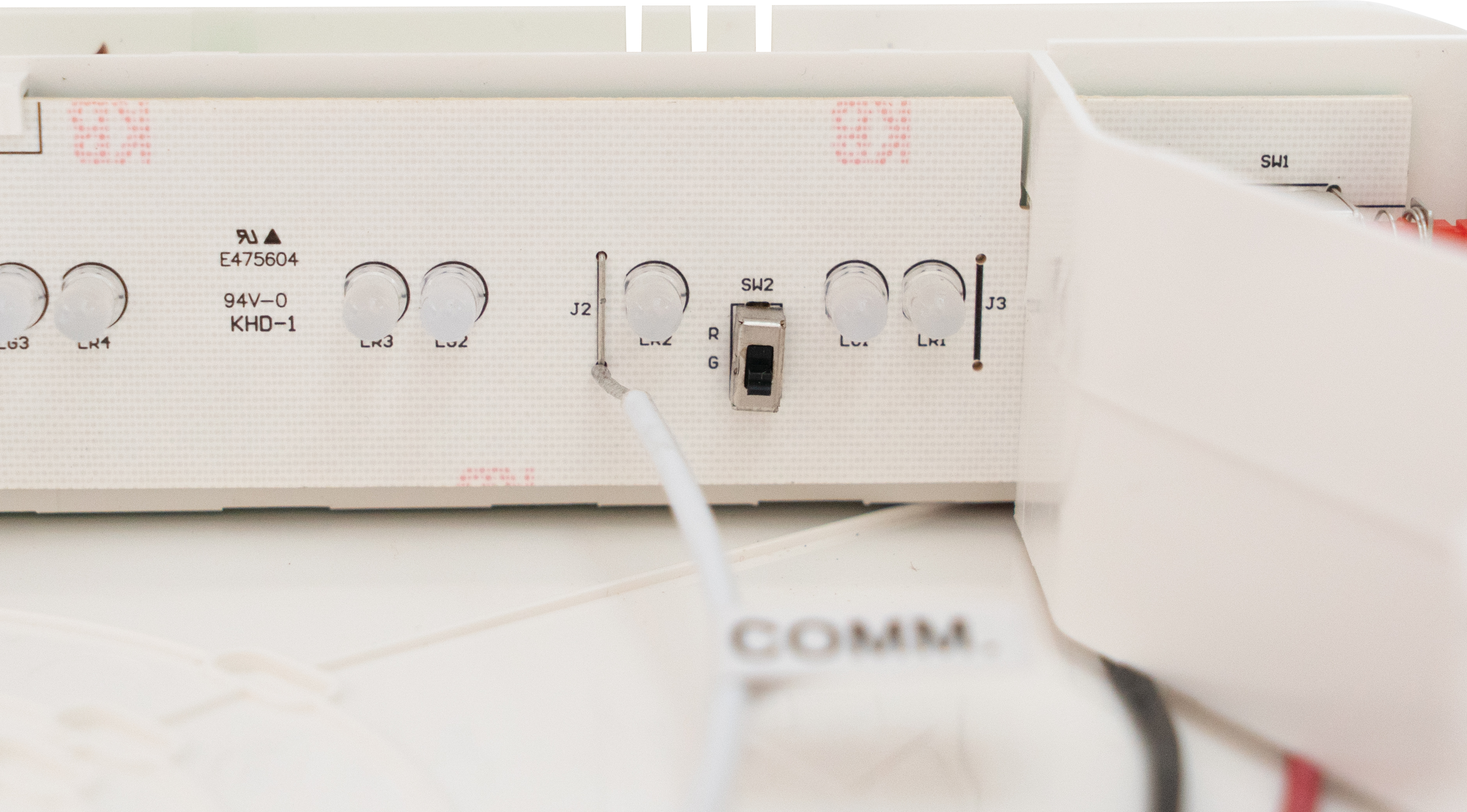

The new Lithonia Lighting® Basics™ ECRG is a red / green switchable emergency exit combo that gives ultimate versatility in the field. The ECRG contains an internal switch on the LED board that allows you to switch between red and green. This product comes standard three-face, which includes an extra face plate with red and green inserts to change a single face sign to a double face sign. The ECRG comes standard universal mount – top, end or back mounting with snap-out and snap-in chevrons, making it the most field-configurable, universal emergency exit combo on the market today. Built from the previous ECR, ECG, and ECC platform, the new ECRG gives additional versatility but keeps the durability and dependability that has already been proven in the field.
Read More
Read Less
Light Source LED - Static
Lumens 85 LM, 113 LM
CCT / LED Color 6200 K
CRI 75, 80
Product Type Emergency Exit Sign
Compliance Listing CA Title 20
Environmental Listing Damp Location
Regulatory Listing NFPA 101, NFPA 70, UL
Voltage Rating 120-277, 120/277
Color White
Mounting Type Surface
Series ECRG
Days To Ship 2 or Less

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Contractor Select ECRG LED.pdf Contractor Select ECRG, LED Thermoplastic Emergency Combo Light, Switchable Red or Green 5/16/2023 View
    SPEC SHEET ELA-WG.pdf Wire guards 11/28/2022 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00195-001_ECRG RD_RevF.pdf ECRG RD (round) installation instruction sheet (Rev F) 4/27/2022 View
    Installation Instructions 912-00196-001_ECRG SQ_Rev C.pdf ECRG SQ (square) installation instruction sheet (Rev C, 5/2021) 6/1/2021 View
    Material Safety Data Sheet Nickel_Metal_Hydride_Battery_Corun_SDS_NA2015.pdf Safety Data Sheet for Nickel Metal Hydride batteries 4/6/2023 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet ECRG EXRG Switchable Sell Sheet_1220.pdf ECRG EXRG Switchable Sell Sheet 3/30/2021 View
    White Paper Contractor Select Basics and Quantum Contractor Select Basics and Quantum 4/20/2021 View
    White Paper QvB Recommended Stock Order Guide QvB Recommended Stock Order Guide 7/22/2021 View
