ARM Horizontal Arms

Non-Decorative Arms and Brackets

By Holophane

  • Overview
  • Specifications

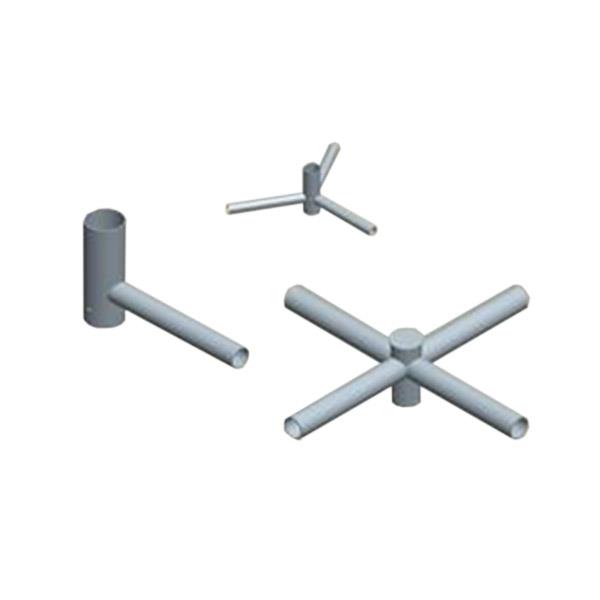

The ARM Series offers a variety of Steel and Aluminum round horizontal mount solutions for tenon mount arm lighting installations. View drawings below for additional information
Read More
Read Less
Product Type Arm
Mounting Type Pole Mount
Primary Material Aluminum, Steel
Architectural Style Utility
Series ARM137, ARM136, ARM135, ARM151, ARM150, ARM138, ARM153, ARM152
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ARM135.pdf Aluminum, spoke arm, 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 11/16/2020 View
    SPEC SHEET ARM136.pdf Aluminum, 2 spoke arm (2@180), 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 11/16/2020 View
    SPEC SHEET ARM137.pdf Aluminum, 3 spoke arm (3@120), 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 11/16/2020 View
    SPEC SHEET ARM138.pdf Aluminum, 4 spoke arm (4@90), 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 11/16/2020 View
    SPEC SHEET ARM150.pdf Steel, spoke arm, 2-3/8IN OD X 18IN long tenon, 2.875IN OD slips fit 11/16/2020 View
    SPEC SHEET ARM151.pdf Steel 2 spoke arm, (2@180), 2-3/8IN OD X 18IN long tenon, 2.875"OD slip fit RTS pole 1/21/2021 View
    SPEC SHEET ARM152.pdf Steel, 3 spoke arm (3@120), 2-3/8IN OD X 18IN long tenon, 2.875"OD slip fit RTS pole 11/16/2020 View
    SPEC SHEET ARM153.pdf Steel, 4 spoke arm (4@90), 2-3/8IN OD X 18IN long tenon, 2.875"OD slip fit RTS pole 11/16/2020 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

    Document Type Document Title Description Updated View
    Guideline Specification Sheets Pole Arm Selection Guide.xlsx Arms & Brackets Selection Guide 1/12/2021
  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD ARM135.dwg Aluminum, spoke arm, 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 2/17/2021
    CAD ARM136.dwg Aluminum, 2 spoke arm (2@180), 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 2/17/2021
    CAD ARM137.dwg Aluminum, 3 spoke arm (3@120), 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 2/17/2021
    CAD ARM138.dwg Aluminum, 4 spoke arm (4@90), 2-3/8IN OD X 18IN long tenon, hub fit 3.5IN RTA pole top 2/17/2021
    CAD ARM150.dwg Steel, spoke arm, 2-3/8IN OD X 18IN long tenon, 2.875IN OD slips fit 2/17/2021
    CAD ARM151.dwg Steel, 2 spoke arm (2@180), 2-3/8IN OD X 18IN long tenon, 2.875IN OD slips fit for RTS poles (ESTO) 2/17/2021
    CAD ARM152.dwg Steel, 3 spoke arm (3@120), 2-3/8IN OD X 18IN long tenon, 2.875IN OD slips fit for RTS poles (ESTO) 2/17/2021
    CAD ARM153.dwg Steel, 4 spoke arm (4@90), 2-3/8IN OD X 18IN long tenon, 2.875IN OD slips fit for RTS poles (ESTO) 2/17/2021
