5” and 6“ E Series LED Module with Switchable White

LED 5CCT Switchable White Retrofit Downlight

By Juno

    Switchable CCTs  Energy Star®  CA Title 24/JA8  CA Title 20
  • Overview
  • Specifications

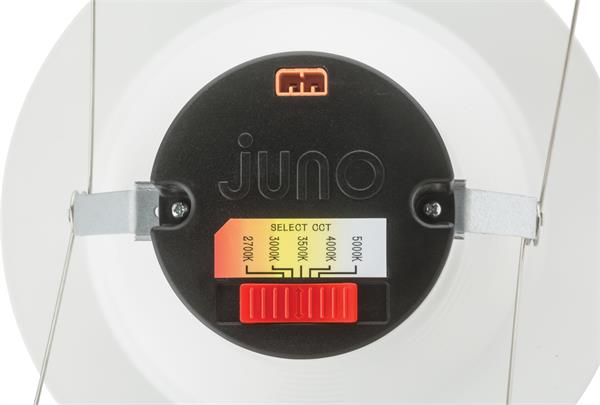

The E Series LED Recessed Module with Switchable White feature offers flexibility for lighting a space to the desired color temperature with the integrated switch that allows for simple color temperature adjustment directly on the trim to change from 2700K, 3000K, 3500K, 4000K or 5000K at 90 CRI.

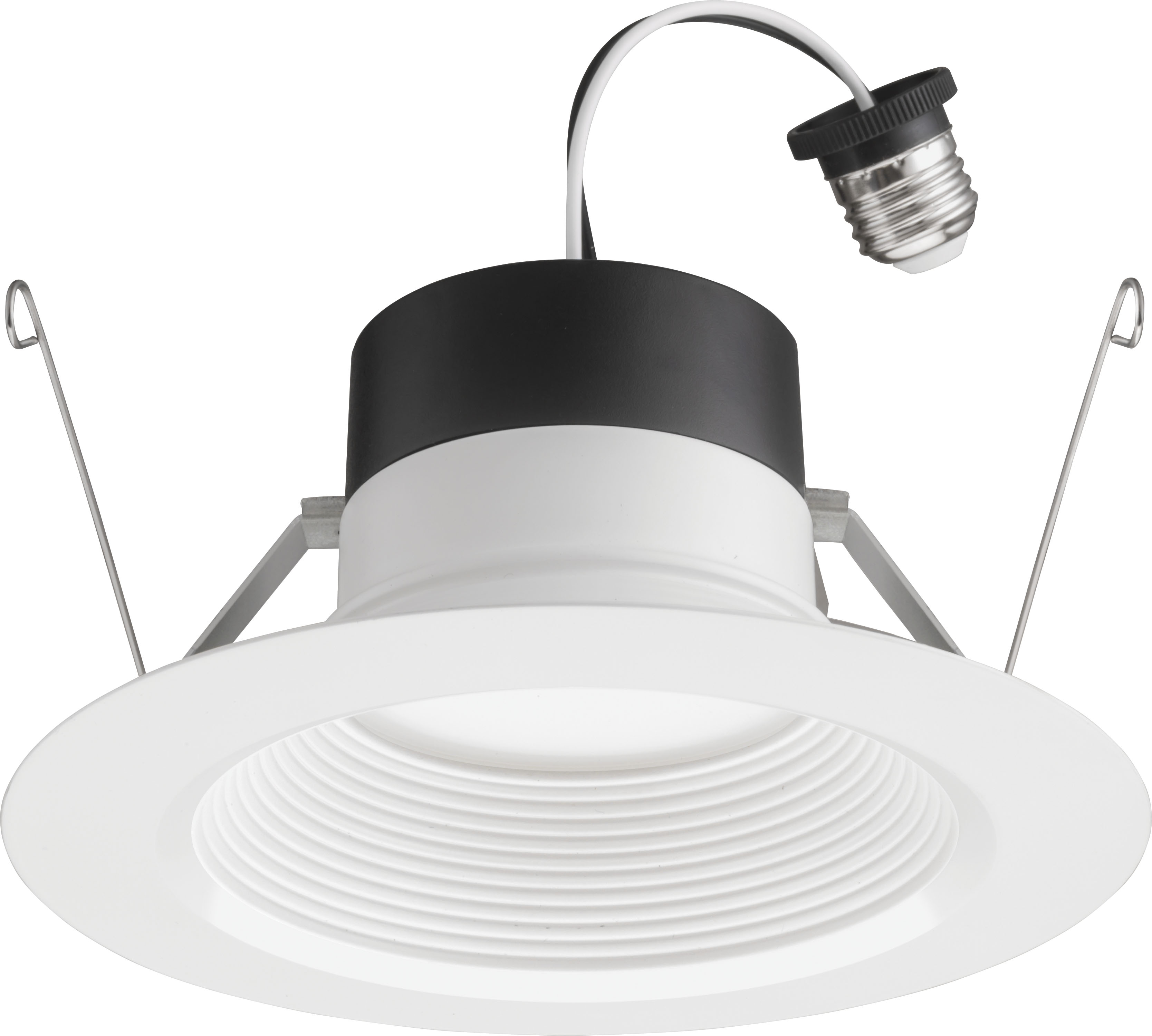

Providing optimized value, the 5”/6” LED trim module is designed for easy installation into both 5” and 6” residential housings using the adjustable torsion springs. The E Series is ideal for retrofitting into most existing 5” or 6” recessed, remodel or new construction housings for residential, multi-family, and light commercial applications.
The E Series combines dependable performance and low cost with the virtually maintenance-free, energy-saving benefits of a 50,000 hour rated-life LED. Field installable, color finish trim inserts available in baffle and smooth styles to further customize your space with designer finishes including matte black, brushed nickel, and oil-rubbed bronze.
Read More
Read Less
Size 6 IN
Shape Round
Light Source LED - Dynamic
Dynamic Feature Switchable White
Lumens 1200 LM
CCT / LED Color Variable
CRI 90
Product Type Downlight
Compliance Listing CA Title 20, CA Title 24, ENERGY STAR®, JA8
Environmental Listing Air Loc, Wet Location
Regulatory Listing CSA, CSAus
Color White
Mounting Type Recessed
Voltage Rating 120
Fixture Wattage 13.9
Series 65SEMW, 65BEMW

Read More Read Less
