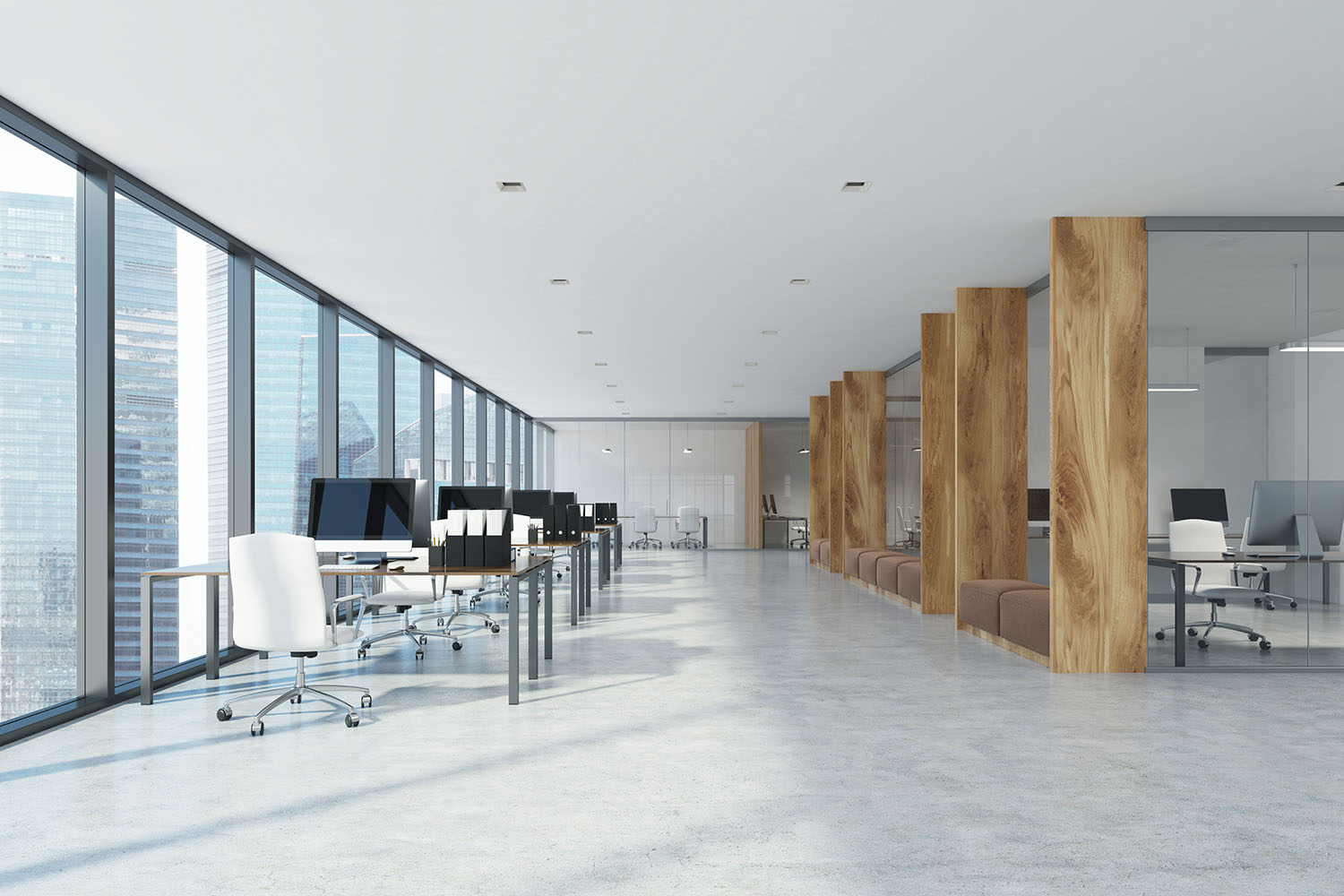

AX4SQ D 4SQDBV WHFM_Office.jpg
AX4SQ D 4SQDBV WHFM_Office_002.jpg

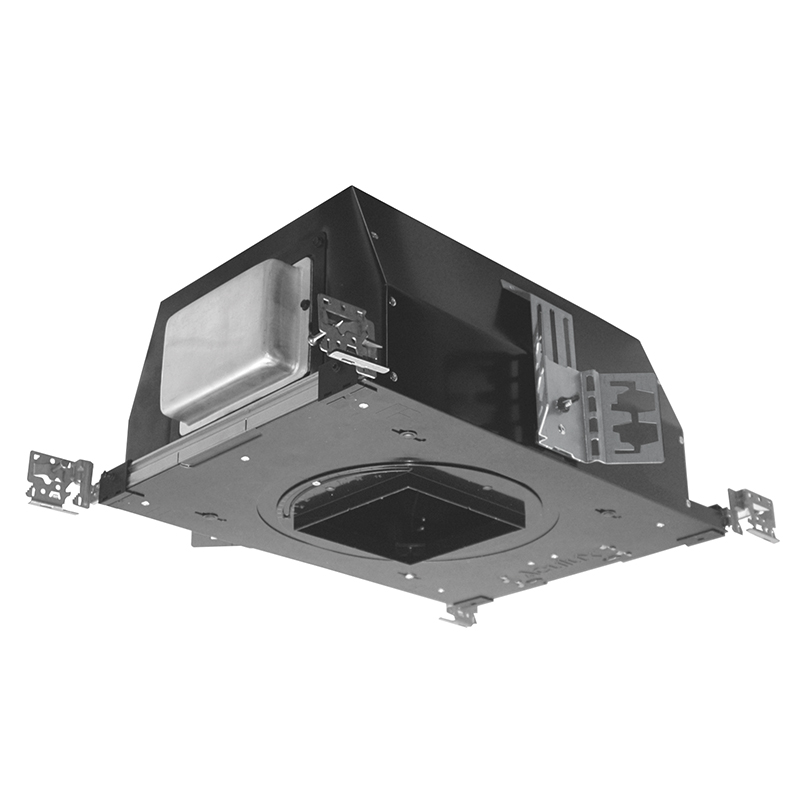

AX4SQ ADJ Housing

Aculux® LED 4in Square New Construction Adjustable Housing

by Aculux

  • ENERGY STAR®
  • Design2Ship Program
Aculux® 4-inch Square LED precision luminaires produce up to 3200 lumens while consuming only 12-36 watts. The luminaires are perfect for accent, task, or wall wash lighting applications. The luminaire optical control system is Spot On in every way with the Acu-Aim™ geared aiming, 370 deg. rotation and 45 deg. vertical tilt, and have the capability of producing ten beam distributions. The patented auto-adjusting optic holder and optimized center-beam optics combined maximizes fixture efficiency and light output providing the right amount of light to be directed precisely at the intended target.
  • Suggested Replacement Products

Need this product quickly?
See the spec sheet below or learn more about our Design2ShipTM program.

Show Me
  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Need Product Assistance?

  • Specifications

    Brand Aculux
    Size 4 IN
    Color Rendering Index 80, 90
    Control Networkable Control
    Correlated Color Temperature 2700 K, 3000 K, 3500 K, 4000 K
    Dimming Protocol Compatibility 0-10V, Forward Phase, Forward Phase 2W, Reverse Phase
    Environment Indoor
    Fixture Wattage 12, 12.9, 15.6, 17.2, 22.5, 25.1, 29.7, 33.2, 35.6, 36.2
    Light Source LED - Static
    Regulatory Listing cUL, UL
    Compliance Listing CA Title 24, Chicago Plenum, ENERGY STAR®, JA8
    Product Type Housing
    Lumen Output 1200 LM, 1700 LM, 2200 LM, 2700 LM, 3200 LM
    Quick Ship Yes
    Series AX4SQ
    Shape Square
    Trim Style Adjustable, Angle-Cut, Bevel, Lensed, Open, Single Wallwash
    Voltage Rating 120, 277, MVOLT
