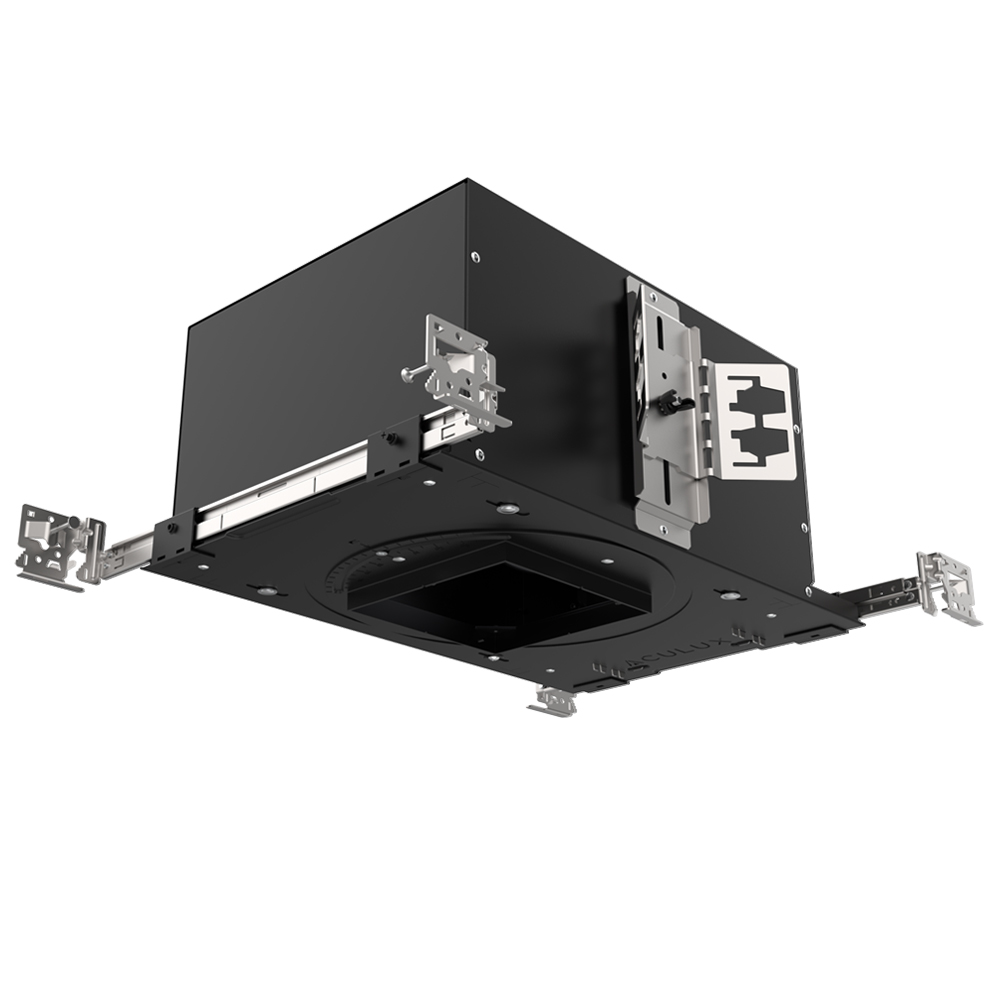

AX4 SQ D_no trim_rendering_redo_1000x1000 - Copy.jpg
AX4 D 4DBV BD WHFM_Lobby.jpg
AX4 SQ_with trim_rendering_redo_1000x1000.jpg
AX4SQ D 4SQDBV WHFM_Office.jpg
AX4SQ D 4SQDBV WHFM_Office_002.jpg

AX4SQ DL Housing

Aculux® LED 4in Square New Construction Fixed Downlight Housing

by Aculux

  • ENERGY STAR®
  • Design2Ship Program
Aculux® 4-inch LED precision downlight luminaires produce up to 3200 lumens while consuming only 12-36 watts. This first in class luminaire has best in class 45 degree visual cut off, allowing the eye to focus on the architecture and not the ceiling plane. Available in both ICAT and non-ICAT configurations with 11 optical distributions capable of providing the precise amount of light for high contrast or uniform downlighting.
  • Suggested Replacement Products

Need this product quickly?
See the spec sheet below or learn more about our Design2ShipTM program.

Show Me
  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Aculux
    Size 4 IN
    CRI 80, 90
    Control Networkable Control
    CCT 2700 K, 3000 K, 3500 K, 4000 K
    Dimming Protocol Compatibility 0-10V, Forward Phase, Forward Phase 2W, Reverse Phase
    Environment Indoor
    Fixture Wattage 12, 12.9, 15.6, 17.2, 22.5, 25.1, 29.7, 33.2, 35.6, 36.2
    Light Source LED - Static
    Regulatory Listing cUL, UL
    Compliance Listing BAA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8
    Environmental Listing Damp Location, Wet Location
    Product Type Housing
    Lumen Output 1200 LM, 1700 LM, 2200 LM, 2700 LM, 3200 LM
    Quick Ship Yes
    Series AX4SQ
    Shape Square
    Trim Style Adjustable, Angle-Cut, Bevel, Lensed, Open
    Voltage Rating 120, 277, MVOLT
