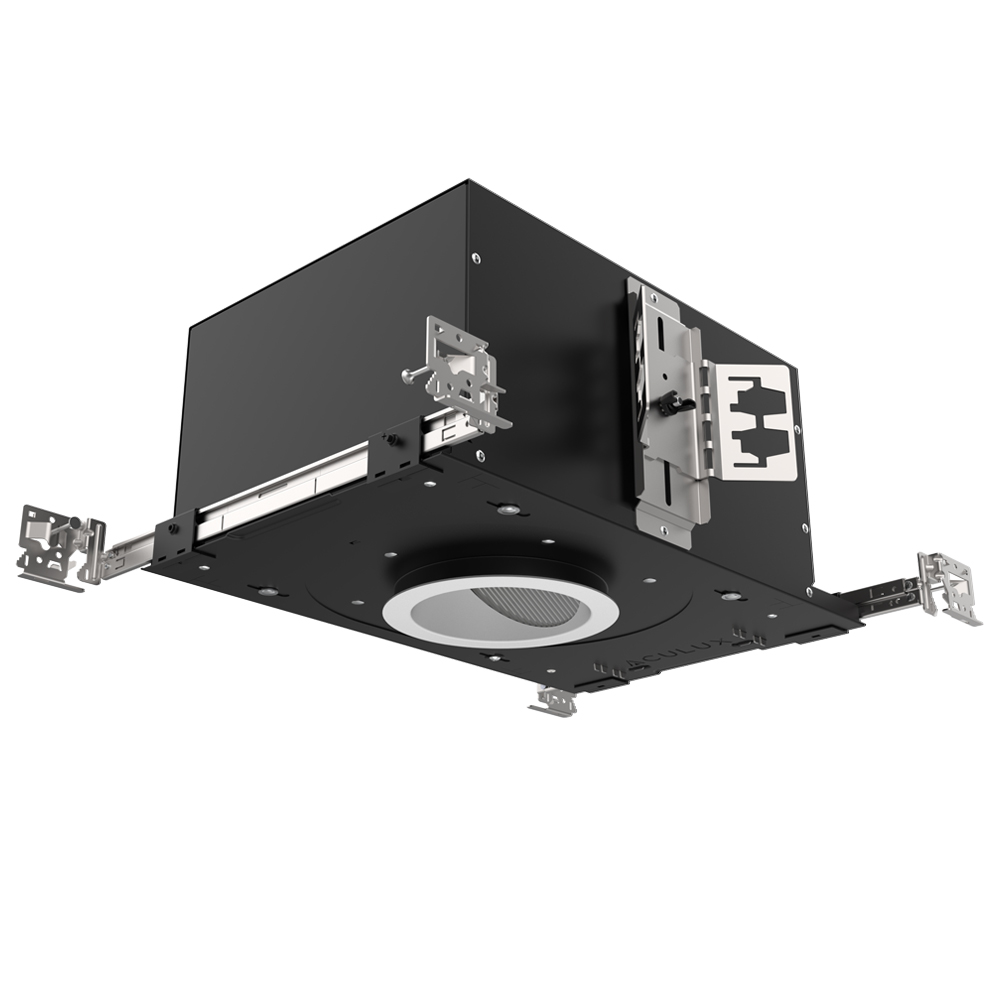

AX4 RD WW_with trim_rendering_redo_1000x1000.jpg
AX4 WW_no trim_rendering_redo_1000x1000.jpg
AX4 D 4DBV BD WHFM_Reception.jpg
AX4SQ WW 4SQFWW W SF_Lobby.jpg

AX4 WW Housing

Aculux® LED 4in Round New Construction Wall Wash Housing

By Aculux

    WarmDimTunable WhiteEnergy Star®CA Title 24/JA8Buy America(n) Option Available
  • Overview
  • Specifications
Aculux ® 4-inch LED fixed wall wash luminaires is your solution when seeking market leading performance. This wall wash luminaire delivers high levels of illumination on vertical surfaces while also achieving exceptional uniformity ceiling to floor. This low glare aperture, available in both ICAT and non-ICAT configurations, has 45 degree visual cutoff and has no room side glare or flash. These recessed precision luminaires are also available with patented WarmDim® (3000K-1800K) and Tunable White (5000K-2700K) technologies.
Read More
Read Less
Size 4 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Lumens 800 LM, 1200 LM, 1500 LM, 1700 LM, 2200 LM, 2700 LM, 3200 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, Variable
CRI 80, 90, 95
Product Type Housing
Compliance Listing BAA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8
Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Fixture Wattage 12, 12.9, 15.6, 17.2, 22.5, 25.1, 29.7, 33.2, 35.6, 36.2
Voltage Rating 120, 120-277, 277
Trim Style Single Wallwash
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series AX4

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Aculux-AX4-Recessed-4in-Round-Wallwash.pdf AX4 WW - 4in Round Lensed Wall Wash 3/10/2023 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P3978.pdf AX4 and AX4SQ 4" New Construction Housing 2/9/2023 View
    Installation Instructions P5515.pdf AX4 and AX4SQ Flangeless Adapter (FMA4/087,FMA4SQ/087) View
    Installation Instructions P5516.pdf AX4 4" Round Flangeless Adapter (SFM4/087,SFM4/125,SFM4/163) View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures ACX_4inch Downlight & Wall Wash Brochure.pdf Aculux 4 inch LED Brochure 11/25/2020 View
    Brochures ACX_AX3 & AX4 WD TW Brochure__WEB.pdf Aculux AX3 & AX4 WarmDim® and Tunable White Brochure 3/9/2023 View
