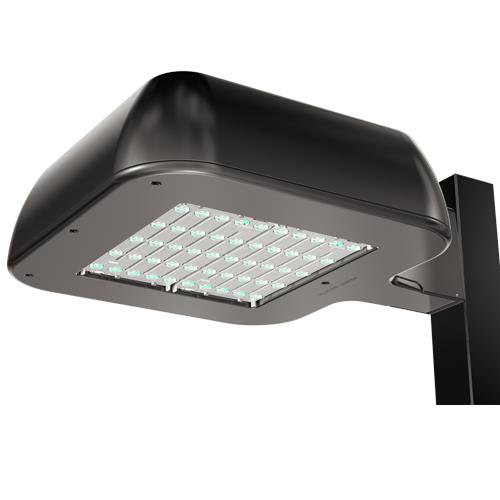

CSX1-LED

Contour Area LED Outdoor Size 1

by Lithonia Lighting

This softly contoured luminaire seamlessly blends into all forms of architecture. Highly efficient and long-lasting, it is ideal for streets, walkways, parking lots, and surrounding areas.


Construction

Sturdy low-copper aluminum, single-piece die cast housing. Unique flow-through design allows for optimized thermal management through convective cooling. A metallic screen covers the top of the housing, preventing debris build-up while allowing air-flow and natural cleaning of the light engine heat sink. Modular design allows for ease of maintenance and future light engine upgrades. The LED driver and electronics are thermally isolated from the heat-generating light engine ensuring long life. Housing is completely sealed against moisture and environmental contaminants. Low profile design minimizes wind-loading.

Finish: Exterior parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish (available in both textured and non-textured) that provides superior resistance to corrosion and weathering. A tightly controlled multi-stage process ensures a minimum 3 mm thickness for a finish that can withstand extreme climate changes without cracking or peeling. Standard Super Durable colors include dark bronze, black, natural aluminum and white.

Optics

Precision-molded acrylic lenses provide optimal luminaire spacing and improved uniformity. Lenses are indexed to the circuit board to ensure consistent optical alignment and delivering repeatable photometric performance. Choice of five optimized distributions: Type II, Type III, Type IV, Type V, and Forward Throw. The optical system controls light above 90 degrees, eliminating wasteful up light.

Electrical

High-efficiency 4000K, 65 CRI LEDs mounted to a metal-core circuit board and aluminum heat sink, ensuring optimal thermal management and long life (L85 60,000 hrs, 25°C ambient). Standard and dimming drivers are available in 120-277V and 347-480V; 50/60 Hz. Drivers have power factor >90% and THD <20%. Thermal isolation results in expected driver life of over 100,000 hours. Replaceable surge protection device is tested in accordance with IEEE/ANSI C62.41.2 meeting Category C Low.

Installation

Integral arm provides easy installation to a pole and ensured alignment and leveling. Rugged, secure connection built to withstand up to 2.0 G vibration load per ANSI C136.31. Utilizes the AERISTM series pole drilling pattern. Optional wall mounting. Optional mast arm adapter available which accepts horizontal tenons maximum 2-3/8” O.D.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & BIM

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.
  • Specifications

    Brand Lithonia Lighting
    Color Black, Bronze, Gray, Green, Silver, White
    Control Dimming Outdoor Control
    Correlated Color Temperature 4000 K, 5000 K
    Environment Outdoor
    Finish Gloss, Textured
    Light Source LED - Static
    Regulatory Listing CSA
    Lumen Output 16,000 LM, 17,000 LM, 18,000 LM, 19,000 LM, 20,000 LM, 21,000 LM, 22,000 LM, 23,000 LM
    Mounting Type Pole Mount
    Product Type Area Light
    Series CSX1
    Voltage Rating 120, 208, 240, 277, 347, 480, MVOLT
