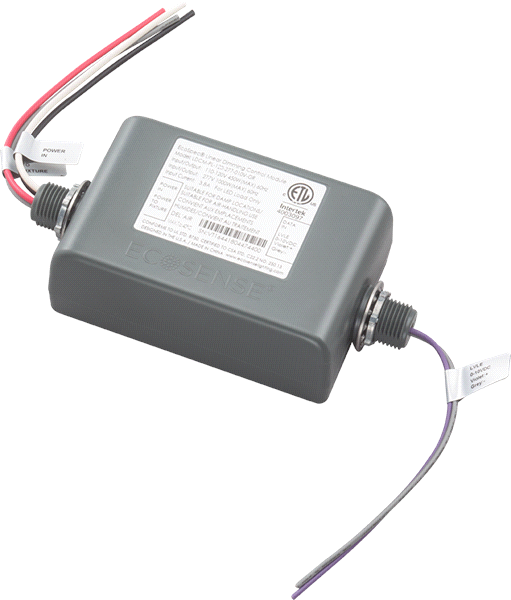

Product Image

PCDM

Phase Control Dimming Module

By nLight

  • Overview
  • Specifications

The PCDM dimming control module takes a 0-10v dimming signal and a fixed-line voltage input and converts it to a reverse-phase dimmed output for up to 1000W with a 277V load and 450W on a 120V load.

One PCDM can be used per power pack up to the maximum wattage. The PCDM is rated to directly mount to a junction box in a plenum space for easier installation and to help achieve code compliance.


Features:

• Dims Reverse Phase Only Fixtures with 0-10V

• Simple Installation

• Direct J-Box Mount

• 120V AND 277V Compatible

• Auto-Sensing Voltage Switch

• Plenum Rated

• ONE nPD Per Power Pack

Read More
Read Less
Control Device Type Lighting Relay
Mounting Type Unit to J Box
Control Protocol Reverse Phase
Product Type Power Pack
Finish Gloss
Voltage 120, 277
Compliance Listing ROHS
Regulatory Listing ETL
Series PCDM
