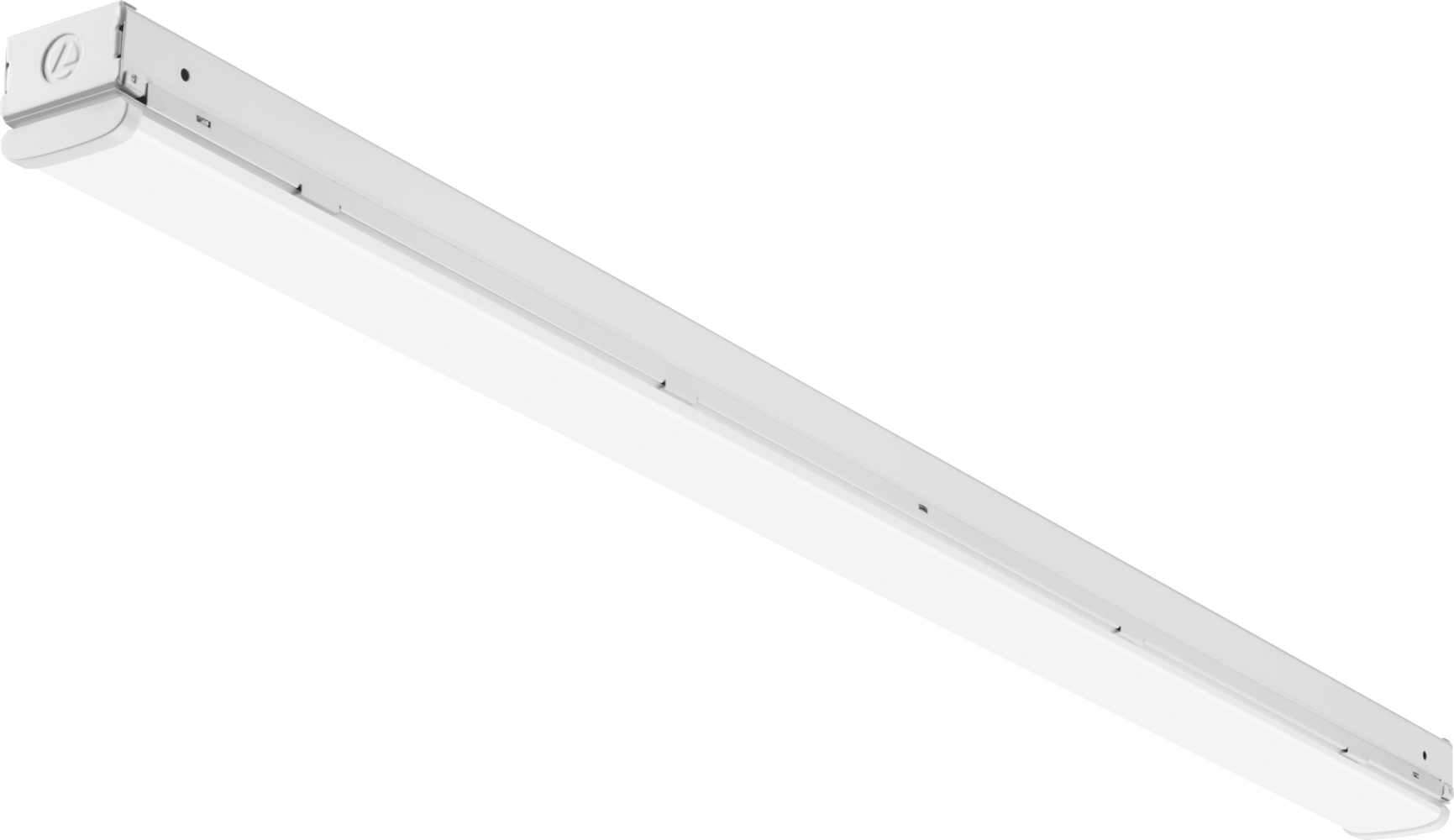

Contractor Select CSS LED Strip Light

Most popular and readily available CSS configurations for your everyday lighting needs

By Lithonia Lighting

    Switchable LumensSwitchable CCTsDLC Standard / Premium
  • Overview
  • Specifications
The light-duty, dimmable, damp-location and DLC® listed CSS LED single strip lights can easily mount individually to a ceiling, wall horizontal/vertical or continuous row/daisy chaining. The size and versatility make them suitable for tight spaces and for task lighting, restrooms, under/over cabinet and storage closets.

Key Features
  • Available in 4’ and 8’ lengths
  • Available Switchable White and Adjustable Lumen Technology
  • 3,000-10,000 lumens and Up to 120LPW
  • ANSI Standard of 2.5kV Surge Protection
  • 50k Hour Driver
  • Single Diffuse Acrylic Lens
  • Optional EM backup 7W & 10W (CA Title 20)
  • Optional PLR plug-in wiring system for continuous row mounting
  • Read More
    Read Less
    Size 4FT, 8FT
    Shape Rectangular
    Light Source LED - Static
    Dynamic Feature Switchable White
    Lumens 3000 LM, 4000 LM, 5000 LM, 6000 LM, 8000 LM, 10,000 LM, Switchable
    CCT / LED Color 3500 K, 4000 K, 5000 K, Variable
    CRI 80
    Product Type Strip Light
    Compliance Listing DLC Standard
    Environmental Listing Damp Location
    Regulatory Listing CSA
    Dimming Protocol 0-10V
    Fixture Wattage 38.9, 47.6, 80, 96
    Voltage Rating 120-277
    Color White
    Mounting Type Surface, Suspended
    Series CSS
    Days To Ship 2 or Less

    Read More Read Less

    • Suggested Replacement Products

    PRODUCT INFORMATION

    • Spec Sheets

      Document Type Document Title Description Updated View
      SPEC SHEET Lithonia-CSS LED Strip-Contractor Select.pdf Contractor Select CSS LED Strip Light 3/3/2022 View

      This tool will configure catalog # options that may not be a part of our quick shipment programs (Contractor Select, LightQuick, Design2Ship, etc.).
      Please see the specification sheet for the quick ship catalog # configurations.

      Create Submittal Spec Sheet

    • Photometry & Revit (BIM)

      Use %(percent) to separate search terms.

      {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

      Description Report Design Tools
      {{photometryItem.Catalog}} Report
      CLICK HERE to start your request for a BIM Model or IES file.
    • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

      Document Type Document Title Description Updated View
      Accessories SQ SPEC Swivel Hanger and Stem Kit View
      Accessories HC36 Drawing.pdf Hanger and chain Accessory 1/23/2020 View
      Accessories ZACVH Instruction & Spec Sheet_101811.pdf CSS LED Single Strip Light – ZACVH Instructions 1/23/2020 View
      Installation Instructions 912-00079-002_Rev B.pdf CSS instruction sheet with Accessories _Rev B 1/27/2022 View
