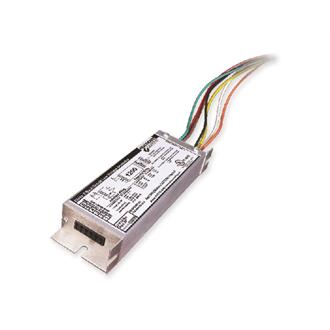

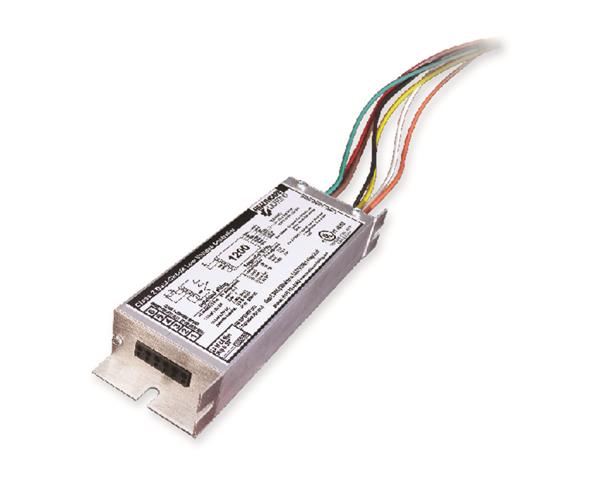

Low Voltage Controller

Accessory

Many of our fixtures contain an option for a Low Voltage Controller (LVC) to connect with the nurse call system or to a pillow switch. The LVC is also available as a separate component. It can be installed in fixtures that require momentary contact switching.

  • Class 2 UL® Listed
  • Optically isolated solid state design
  • 2 circuits for individual or sequential control via momentary contact switch (by others)- 4 amps maximum per load, 8 amps total device load
  • AC: 120 or 277 volt / 60 Hz
  • DC: 9 volt @ 200 amps
  • All load circuits reset to off after power interruption
  • Compatible with any nurse call handset that utilizes normally open momentary contact switches

Specifications

  • Application Type : Healthcare
  • Brand Name : Healthcare Lighting
  • Environment : Indoor
  • Listings : CSA, cUL, UL
  • Product Type : Adaptor
  • Series : LVC1200
