SLFO Tubular Daylighting System

Sunoptics LightFlex Open-Ceiling Tubular Daylighting System

By Sunoptics

    Buy America(n)
  • Overview
  • Specifications

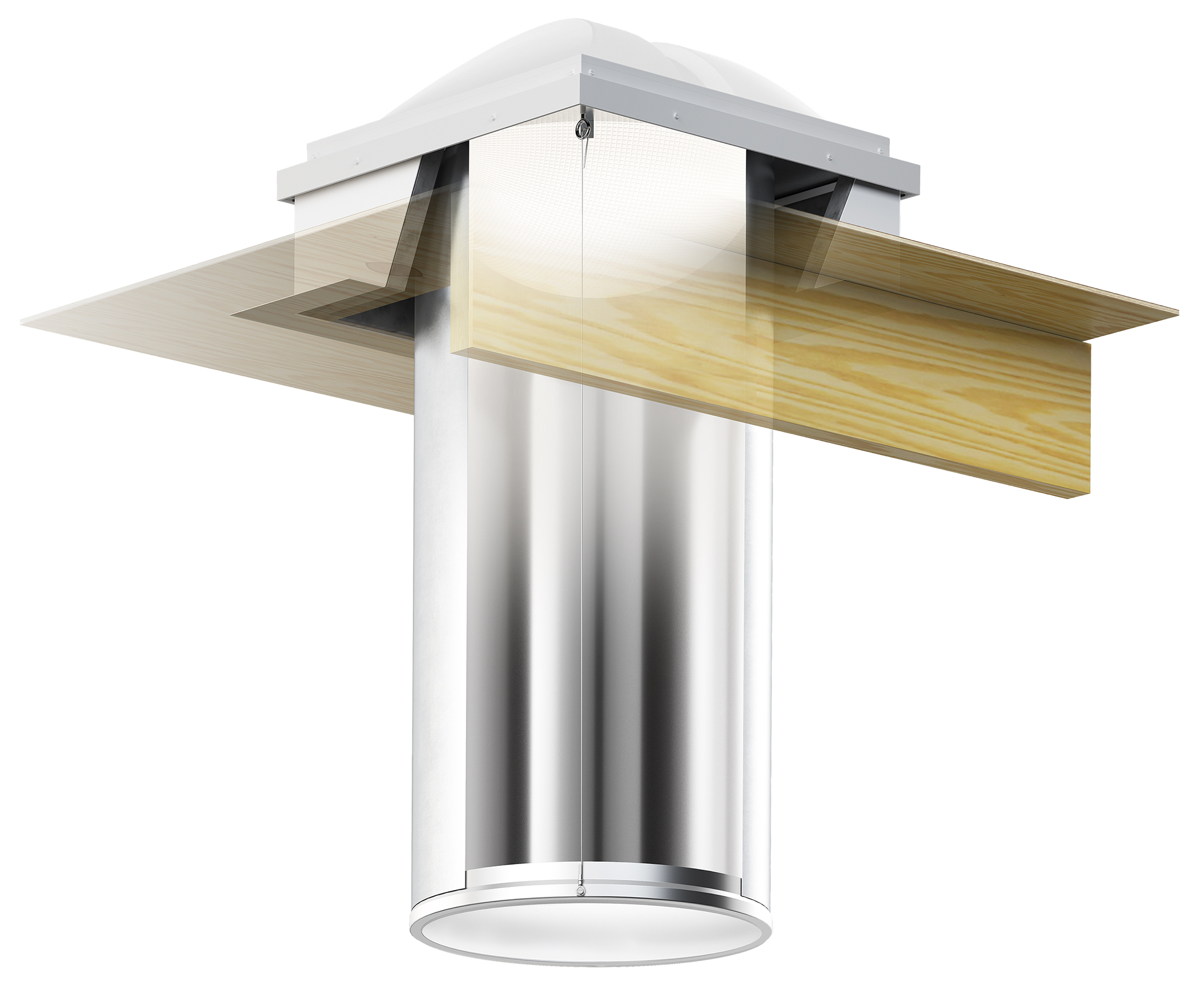

The LightFlex SLFO daylighting system from Sunoptics®, delivers natural light into interior open-ceiling applications where flexibility and high-performance daylighting needs are advantageous.

The daylighting system combines the use of Sunoptics prismatic technology to capture more daylighting throughout the day, and transport that daylighting through its 21" highly-specular tubing to where it is needed. A louver system is available to provide the control of light for applications such as AV use. LightFlex SLFO is ideal for interior spaces with limited or no window access.

  • Optimized daylighting capture system featuring Signature Series skylight and prismatic optic sphere for increased daylight conveyance
  • 98% Reflective MIRO-SILVER® interior light well with greater than 99% specular quality
  • Adjustable elbows to bypass obstructions
  • Attractive diffuser options to complement your lighting design
  • Optional integrated louver system to limit daylight for AV applications - all plug-and-play with nLight® wired control system
  • Suspended-Ceiling option also available
Read More
Read Less
Light Source Daylight
Dynamic Feature Not Applicable
CRI 98
Compliance Listing BAA, HVHZ
Environmental Listing Hail Rating Class 1, Hail Rating Class 3, Hail Rating Class 4
Regulatory Listing AAMA, CE, FM, NFRC
Product Type Tubular Daylighting
Voltage Rating Not Applicable
Primary Material Acrylic, Polycarbonate
Series SLFO
