RUBIK CLAC Architectural Recessed

Rubik LED-Dynamic Color Accent Luminaire

By Mark Architectural Lighting

    Color Changing  Buy America(n)
  • Overview
  • Specifications

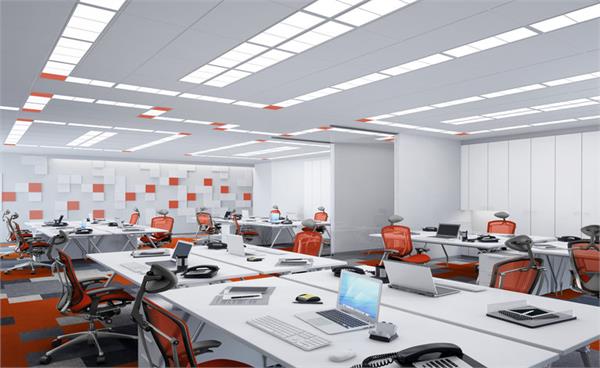

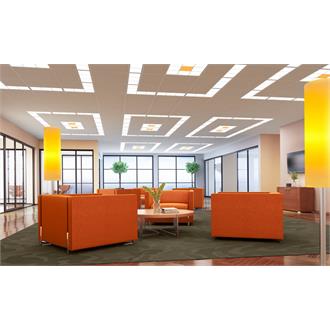

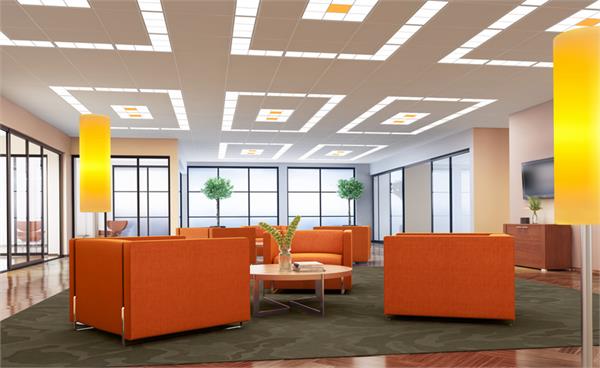

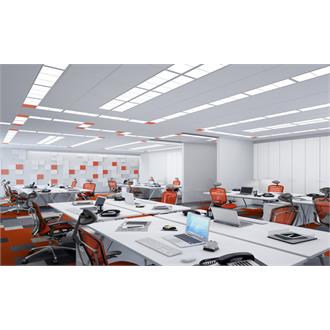

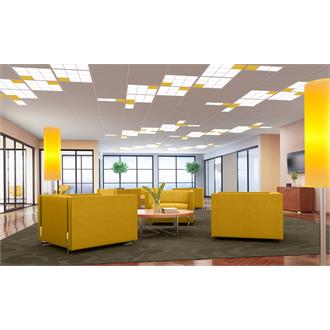

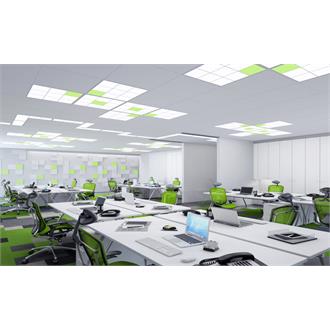

Create blocks of contrast with Rubik Color Accent. Rubik Color Accent draws upon an expansive palette to create rich installations with color hints ranging in dark hues to vibrant neons. Whatever the architectural finishes of a space, use Rubik Color Accent to add design flair while maintaining necessary ambient white illumination. Select from Rubik Color Accent's three sizes and ten possible accent placements to outline your creative vision. Rubik Color Accent delivers up to 440 lumens per cell at an exceptional color quality of 90 CRI. RUBIK is now Declare listed
Read More
Read Less
Light Source LED - Dynamic, LED - Static
Dynamic Feature Architainment Color
Lumens 240 LM, 360 LM, 440 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Troffer
Compliance Listing BAA, Chicago Plenum, Declare
Environmental Listing Damp Location
Regulatory Listing UL
Dimming Protocol 0-10V
Mounting Type Recessed
Voltage Rating 120, 277, 347
Series RUBIK

Read More Read Less
