nETHSW

Ethernet Switch

The nlight Ethernet Switch (nETHSW) is used to connect nLight Gateways (nGWY2) to XPoint Wireless Bridges (XPA BRG) via an Ethernet backbone. The nLight Ethernet Switch may also be used for optional connections such as a host PC/Server operation SensorView, nBACnet Appliance, and nADR client. The nETHSW backbone may be used as a part of a fully isolated system or it may be integrated into the facility’s local area IP network for integration with additional systems such as Building Management Systems (BMS), OpenADR servers, and web browser access to the SensorView host PC/Server. The nETHSW is available with optional IEEE802.3af PoE ports to supply Power-over-Ethernet to XPOINT Wireless Bridges, eliminating the need for 120VAC connections at XPoint Wireless Bridge mounting locations (specify nETHSW PoE and XPA BRG POE).

nETHSW

  • Auto sensing 10/100/1000 Mbps connections
  • Fan-less cooling
  • External 120VAC power adapter for standard outlet connections
  • Wall/backboard mountable

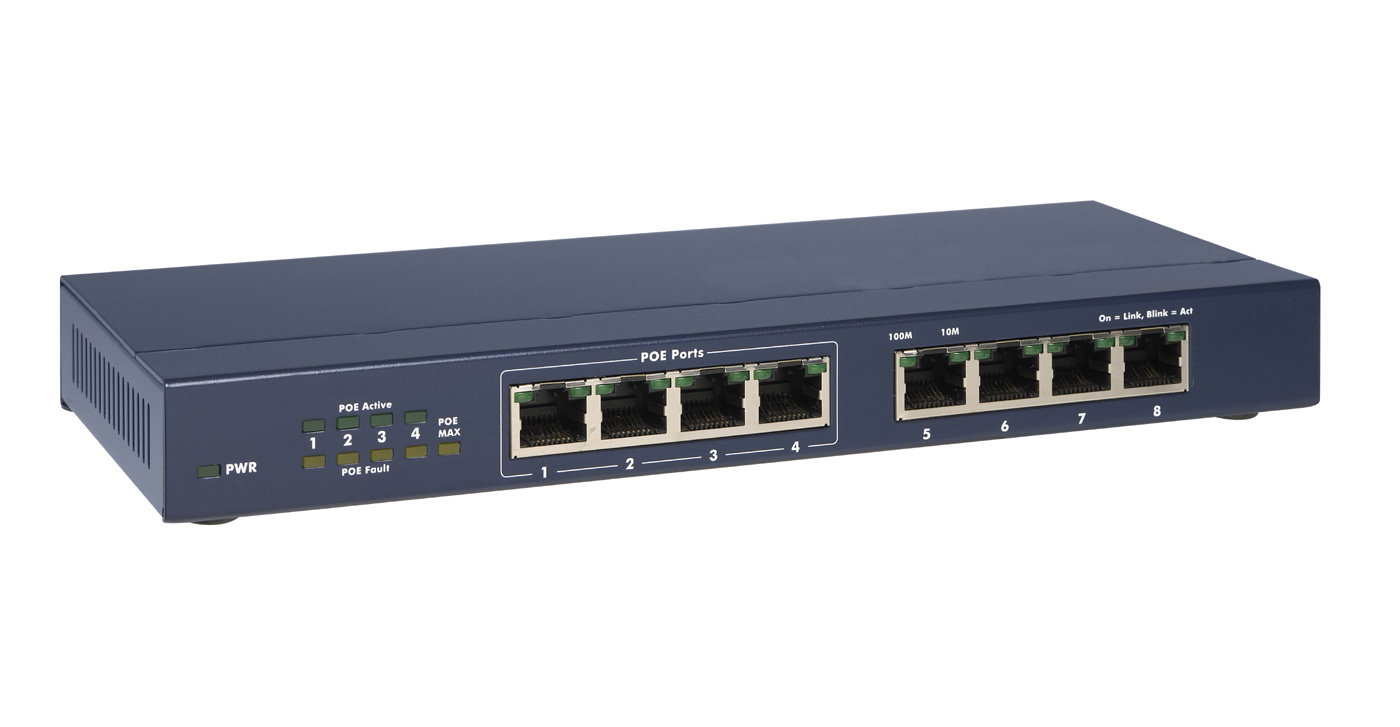

nETHSW POE
  • Provides power and data to XPA BRG POE via CAT5e connection (up to 100m/330')
  • PoE ports automatically detect IEEE 802.3af-compliant devices and supply power as needed
  • Auto PoE shutoff when devices are disconnected

Specifications
Product overview and specifications
Application Type Education, Government, Healthcare, Hospitality, Offices and Banks, Religious, Retail
Brand Name nLight
Product Type Switch
Series NETHSW
Spec Sheets
A summary of the performance and other technical characteristics of the product.
File Type Document Title View
nETHSW_pdf View
Technical Files
Installation documents, building information models, etc.
File Type Document Title View
nethsw_dwg View
nethswpoe_dwg View
nethsw-riser_dwg View
