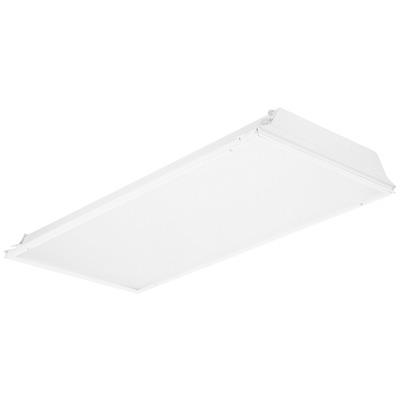

VRT

Recessed Lensed

General illumination for rough service (vandal-resistant) applications. Ideal for areas that require higher levels of protection from physical assault, while providing proper illumination for safety or security. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.

Construction

Housing: Steel door frame features overlap mitered corners. Formed from cold-rolled steel and secured by stainless steel tamper-resistant TORX® T-20 screws, two per side standard (four included). Ceiling trims available to fit most recessed applications.

Finish: Painted parts finished with high-gloss, baked white enamel. Five-stage iron-phosphate pretreatment ensures superior paint adhesion and rust resistance.

Optics

Lens: Variety of shielding available including VL, durable .250" polycarbonate sheet laminated to .125" A12 pattern acrylic overlay. Impact-resistant acrylic or prismatic polycarbonate also available.

Electrical

Ballast: Thermally protected, resetting, Class P, HPF, non-PCB, CSA Certified ballast is standard.

Specifications
Product overview and specifications
Brand Name Lithonia Lighting
Light Source Fluorescent
Listings CSA
Product Type Troffer
Series 2VRT, DLVRT, VRT
Voltage Rating 120, 277, 347, MVOLT
Spec Sheets
A summary of the performance and other technical characteristics of the product.
File Type Document Title View
ACRYLIC-POLYCARBONATE-COMPATIBILITY_PDF View
VRT-1X4_F_PDF View
VRT-2X2_F_PDF View
VRT-2X4_F_PDF View
Technical Files
Installation documents, building information models, etc.
File Type Document Title View
Acrylic-Polycarbonate-Compatibility_pdf View
Resources
Download brochures, sell sheets, photometry files and other sales tools.
