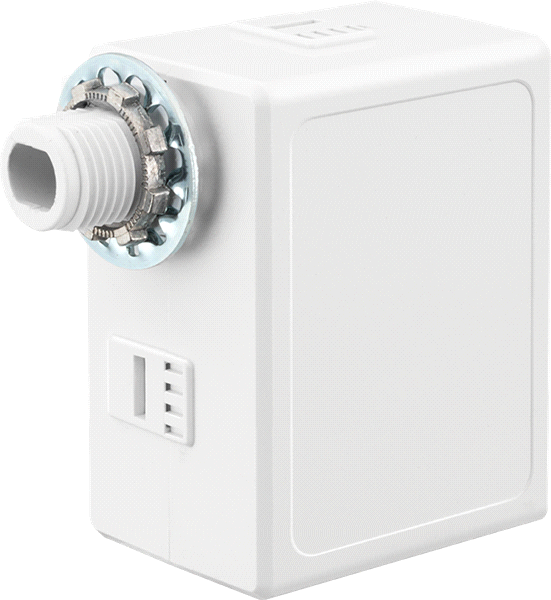

FCS PS10 Power Supply

Low Voltage Power Supply

The Fresco Power Supply (FCS PS10) is a Class 2 low voltage power supply intended to power a single Fresco Touchscreen, or other 24VDC Acuity Controls devices. The FCS PS10 is intended for use with 120-277V, 50/60Hz circuits.

• Provided with Fresco touchscreens • Available separately for use as low voltage power supply for Acuity Controls equipment • 24VDC output, Class 2 Circuit • 120-277V, 50/60Hz input • Supplies 10W@ 40°C, 7W@50°C • Consumes 12W@120V, 14W@277V • UL Listed (E110912) • Suitable for Plenum Use (UL2403)

Specifications
Product overview and specifications
Application Type Education, Government, Healthcare, Hospitality, Offices and Banks, Religious, Retail
Brand Name Fresco
Control Networkable Control
Environment Indoor
Listings cUL, UL
Product Type System Controller
Series FCS
Spec Sheets
A summary of the performance and other technical characteristics of the product.
File Type Document Title View
FCS_PS10_pdf View
Technical Files
Installation documents, building information models, etc.
File Type Document Title View
fcsps10riser_dwg View
Resources
Download brochures, sell sheets, photometry files and other sales tools.
