NOL

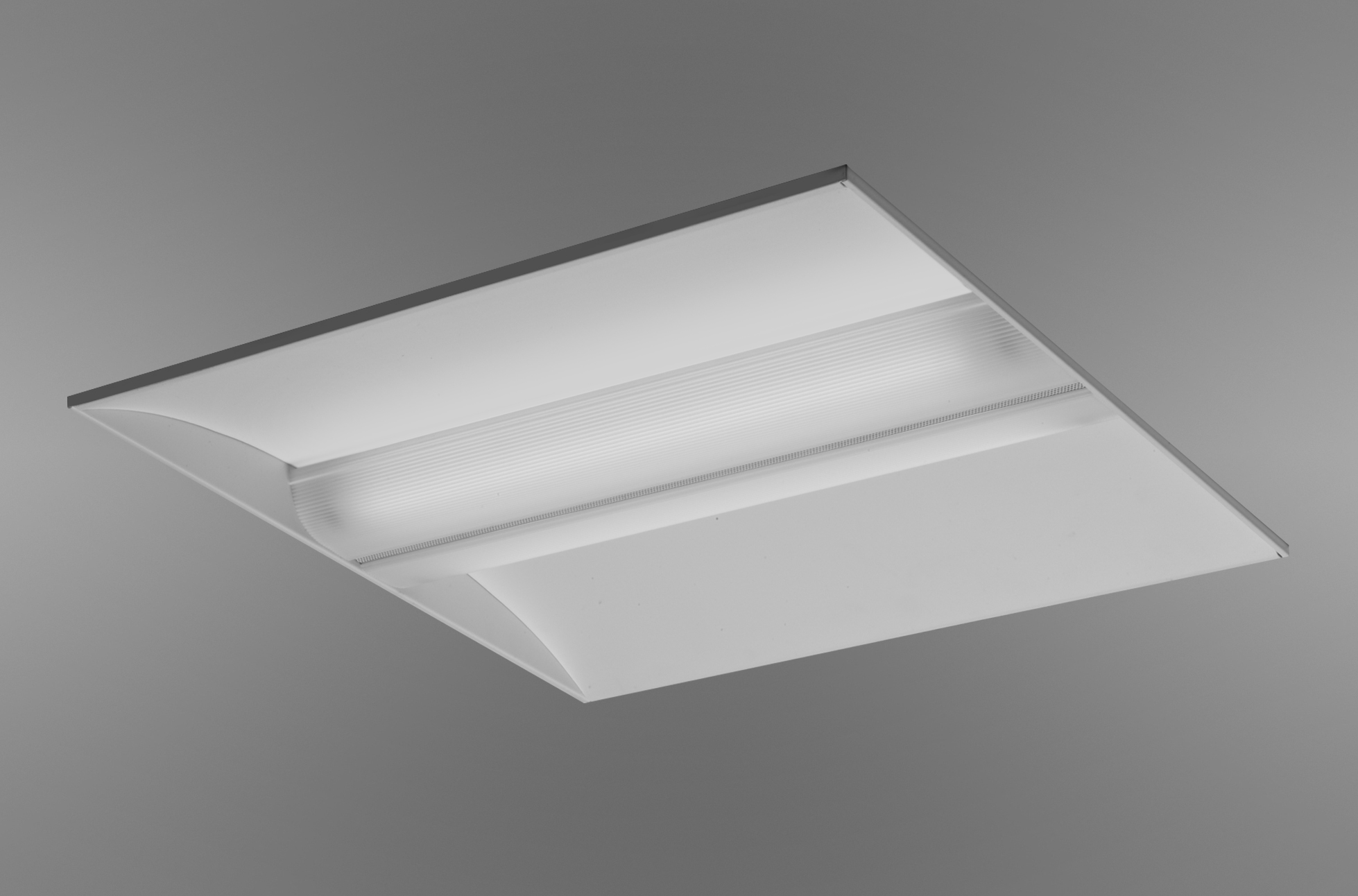

Nol LED

Recessed grid | Acrylic diffuser | Direct illumination | Available in ultra shallow version

by Mark Architectural Lighting

High efficiency, shallow design and a patent-pending install-from-below option are among the many practical benefits offered by Nol LED. A center reveal, decorative accents and multiple lensing options all contribute to its aesthetic appeal. Nol LED is an ultra shallow luminaire that will fit in virtually any plenum space.


  • 20-gauge, cold-rolled steel housing; 1’x4’, 2’x2’ or 2’x4’
  • Fixture depths as shallow as 1¾”
  • Contoured acrylic center lens—square or round profile—in clear, clear with overlay, clear frost or white frost
  • Efficiency ratings as high as 88%
  • LED
  • Install-from-below option
  • Quick-release ballast/lamp compartment

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report

    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.

  • Specifications

    A+ Capable Yes
    Application Type Education, Government, Hospitality, Offices & Banks, Religious, Retail
    Architectural Style Transitional
    Brand Mark Architectural Lighting
    Environment Indoor
    Light Source LED - Static
    Regulatory Listing Chicago Plenum, CSA
    Mounting Type Recessed
    Product Type Troffer
    Series NOLLD, NOLLDOTM
    Shape Square
