Wayfinder HNLM6

Healthcare Wayfinder or Directional Marker with 4G4D Junction Box

By Healthcare Lighting

    Buy America(n)
  • Overview
  • Specifications

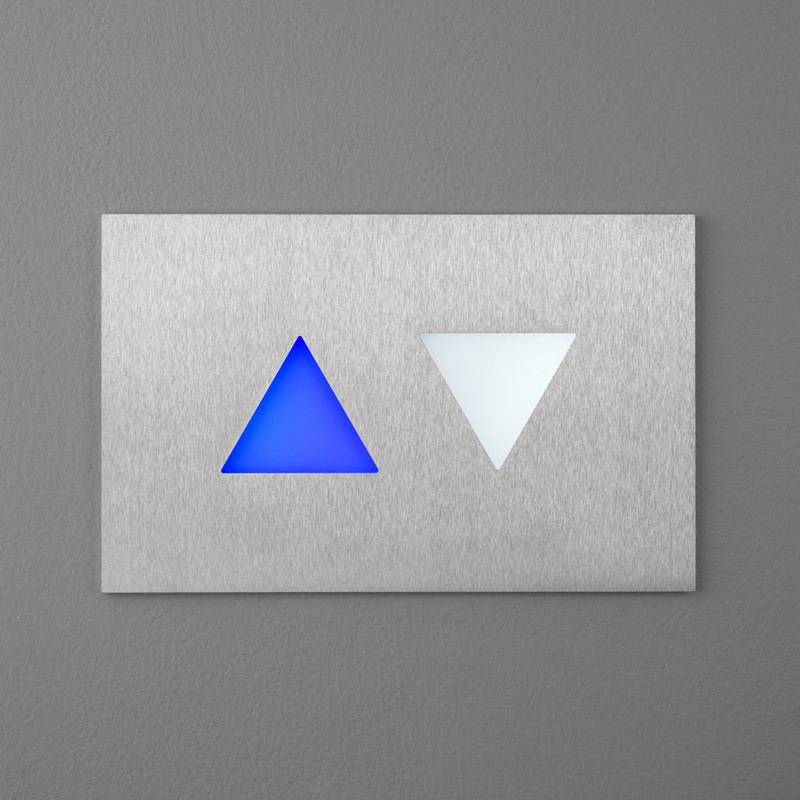

This product is a direct replacement for the former Winona Marker06. The Wayfinder HNLM6 is a luminaire that provides low-level illumination in healthcare settings. Wayfinder HNLM6 mounts to Steel City 4G4D box. Constructed with a solid aluminum, brass or stainless steel rectangular faceplate with a solid opal acrylic lens, Wayfinder HNLM6 is available in amber, blue, cyan, green, red-orange, red and static white colors, and assorted finishes. Wayfinder HNLM6 can be specified using two different color LEDs, each with its own driver for elevator or other signal-type element.
Read More
Read Less
Light Source LED - Static
Lumens 67 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, 6400 K, Amber Phosphor Corrected, Blue, Green, Red
CRI 80
Product Type Step Light
Compliance Listing BAA
Environmental Listing Dry Location, Wet Location
Regulatory Listing ETL
Dimming Protocol 0-10V
Fixture Wattage 3
Voltage Rating 120-277
Mounting Type Semi-recessed
Series HNLM6

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HNLM6.pdf Wayfinder Marker HNLM6 8/16/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions I-HNLM6_DRY.pdf Wayfinder HNLM6 Rectangle Marker, Dry Location 10/18/2021 View
    Installation Instructions I-HNLM6_WET.pdf Wayfinder HNLM6 Rectangle Marker, Wet Location 10/18/2021 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet Wayfinder Sell Sheet.pdf Wayfinder Sell Sheet 8/11/2020 View
