Product Details

RSS

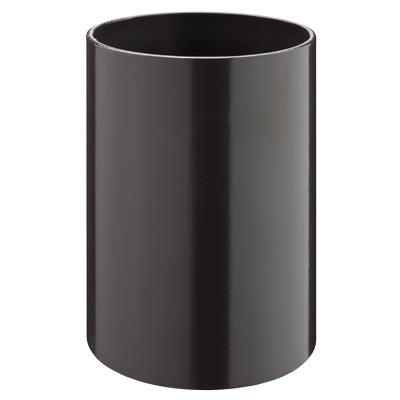

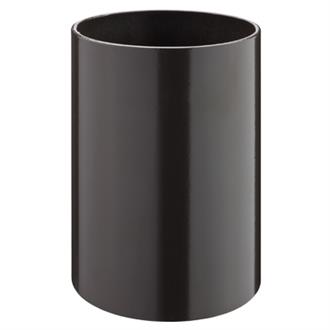

Round Straight Steel

Round straight steel general purpose pole for up to 30-foot mounting heights.

Construction

Shaft: Weldable grade, hot rolled, commercial-quality carbon steel tubing with minimum yield of 42,000 psi. Uniform wall thickness of .120". Shaft is one piece with a full-length, longitudinal, high-frequency electric resistance weld. Uniformly round in cross-section down length of shaft with no taper.

Anchor base: Fabricated from hot-rolled carbon steel plate with 3/4" thickness conforming to ASTM A36. Base plate and shaft are circumferentially welded top and bottom.

Anchor bolts: Fabricated from carbon steel bar with minimum-yield strength of 55,000 psi. Bolts have an "L" bend on lower end and are galvanized a minimum of 12 inches on the threaded end per ASTM A-153. Each anchor bolt is furnished with two hex nuts and two flat washers.

Grounding: Provision located inside hand hole rim. Grounding hardware is not included (provided by others).

Hand hole: Reinforced hand-hole rim located 18" above base. Includes cover with attachment screws.

Hardware: All fasteners are high-strength galvanized or zinc-plated or stainless steel.

Top cap: Removable top cap provided with drill-mount poles.

Base cover: Includes full-base cover finished to match pole.

Finish: Must specify finish.

Other

Check out POLESCENTRAL for additional resources and solutions.

Specifications

  • Application Type : Automotive and Parking, Hospitality, Residential, Retail, Roadways, Bridges and Tunnels, Sports and Recreation
  • Architectural Style : Transitional
  • Brand Name : Lithonia Lighting
  • Color : Beige, Black, Blue, Bronze, Brown, Gray, Green, Red, Silver, White, Yellow
  • Environment : Outdoor
  • Finish : Gloss, Textured
  • Listings : CSA, UL
  • Mounting Type : Anchor Based, Pole
  • Pole Base Shape : Round
  • Pole Base Size : 4, 4.5, 5
  • Pole Shaft Style : Straight
  • Product Type : Pole
  • Series : RSS
  • Shape : Round
